SpeedyBee F405 AIO - Page 14

DJI HD VTX
Peripheral Connection

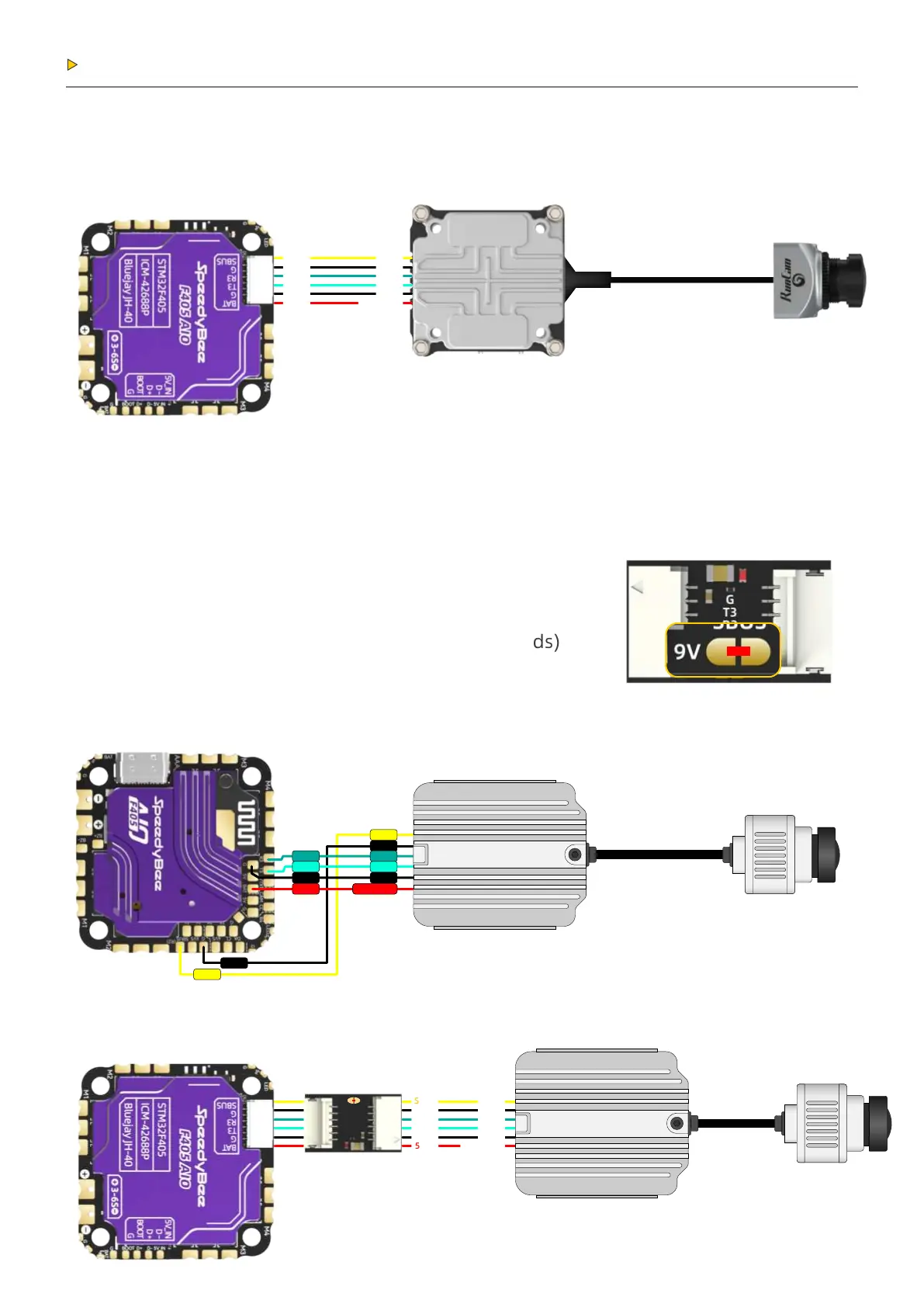

HD VTX Connection and Settings:
2.1
DJI Air Unit
DJI Air Unit Solder Connection
DJI Air Unit Cable Plug Connection
DJI HD VTX Cable Plug Connection
7.4-17.6VBAT
SBUS
SBUS
GND
GND
TX
RX
R3
T3
GNDGND
BAT
GND
T3
R3
GND
SBUS
7.4-26.4V
GND
RX
TX
GND
SBUS
5/9V
GND
T3
R3
GND
SBUS
7.4-17.6V
GND
RX
TX
GND
SBUS
Warning!
DJI Air Unit
The DJI Air Unit only supports 3-4S batteries. Do not
connect directly to a 6S battery, as it could damage
the DJI Air Unit. Please use the included external BEC
and set it to 9V output (by short-circuiting the two pads)
before connecting to the DJI Air Unit.
9V
