Din
LED Strip

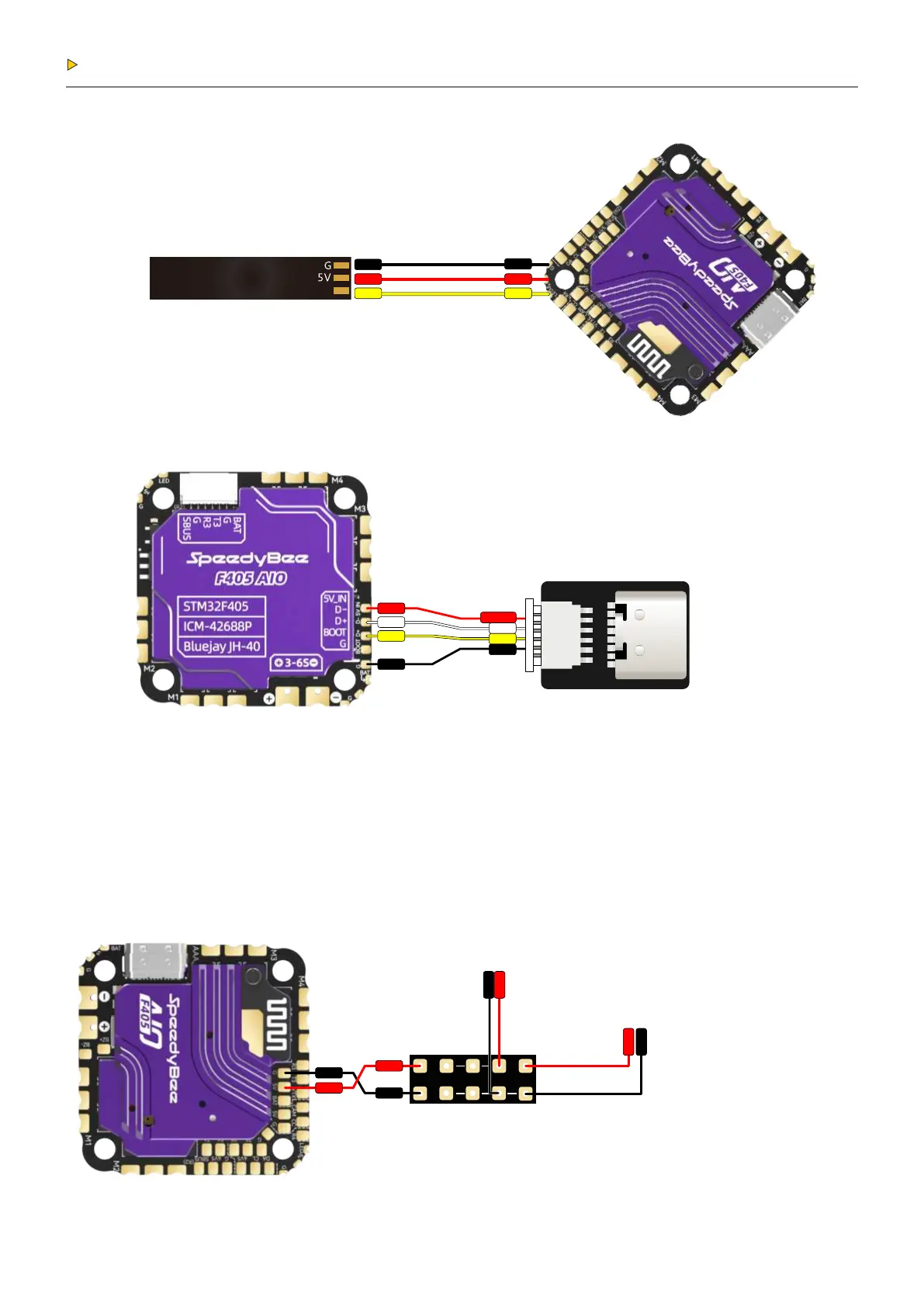

Peripheral Connection
LED Strip Connection:
2.1
Type-C extension Module:
Power Expansion Board:
Expand Multiple Power for Greater DIY Flexibility
5V_IN
D-
D+
GND
5V_OUT
D-
D+
GND
5V OUT
GND
SpeedyBee
GND
V_IN
5V
GND
V_IN
GND
5V
LED
GND
5V
Din
GND
GND
GND
5V
5V
The power expansion board can convert 1 power source into 4,
eliminating the hassle of soldering multiple wires to the same
pad and allowing for easy connection of more power devices,
such as receivers, LED strips, VTX, GPS, cameras, ect.
