Speidel 22620 - Technical Data; Prior to First Use; Assembly

Hydro Press
page 5 of 12
4 Technical data
5 Prior to first use
Before using the equipment for the first time, all components should be cleaned and
rinsed thoroughly with water. Never use aggressive or abrasive cleaning agents. The
press cloth shall also be cleaned thoroughly with water.
6 Assembly
After removing the device from its packaging, please use the included screws to attach
the legs (2) to the base frame (1). However, this step has been omitted for Hydro Press
180L. Please provide a secure installation for all equipment, placing the product on a
stable and weight-bearing surface. Most important is the water drainage and, if possible,
the water connection should not be located too far form the press.

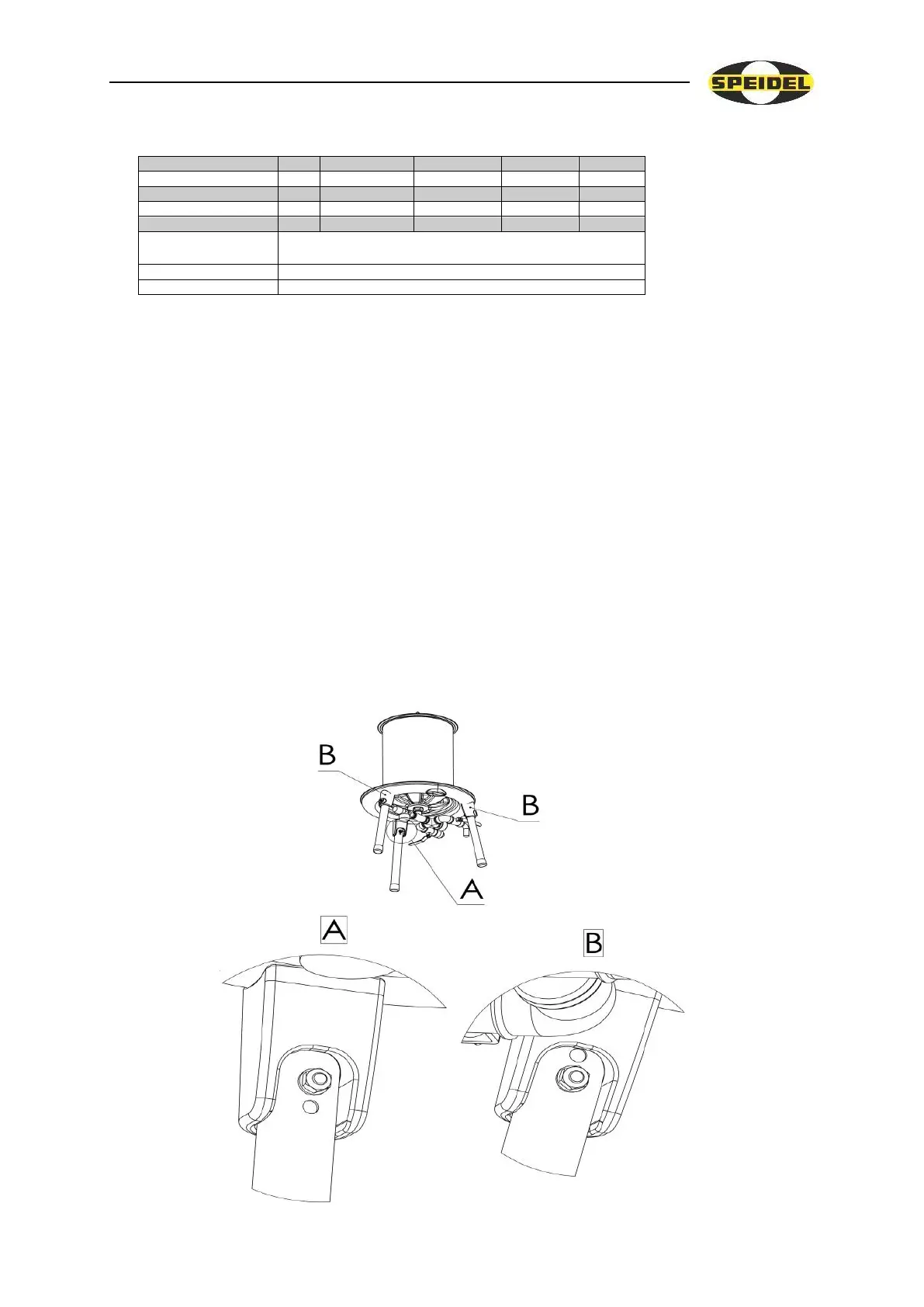

The assembling of the legs on the Hydropress VA (stainless) according this scetch:
Size/basket volume
Litres
20/ 20 VA
40/ 40 VA
90
180
Height (H):
mm
820
900
1070
1316
Width (W)
mm
Ø 410/ 430
Ø 480/ 530
Ø 590
945
Height above ground (h)
mm
300
300
300
350
Weight
kg
13/ 14
18/ 20
28
72
Supply line/connection
GEKA Quick release coupling R ¾“
Discharge ball valve
Outside threat R ¾" with hose fitting
Max. water pressure
3 bar
