Spektrum AR6610T User Manual

EN
6
Using an AS3X SAFE receiver requires a Spektrum
™
DSM2
®
/DSMX
®
compatible transmitter with forward programming.
Transmitter and receiver binding
Binding
The AR6610T receiver must be bound to your transmitter before it will operate.
Binding is the process of teaching the receiver the specifi c code of the
transmitter so it will only connect to that specifi c transmitter. When new out of
the package, the AR6610T will automatically go into bind mode the fi rst time it
is powered on.
1. Connect the optional SRXL2 remote receiver (SPM9747) if desired and any
telemetry sensors to the main receiver.

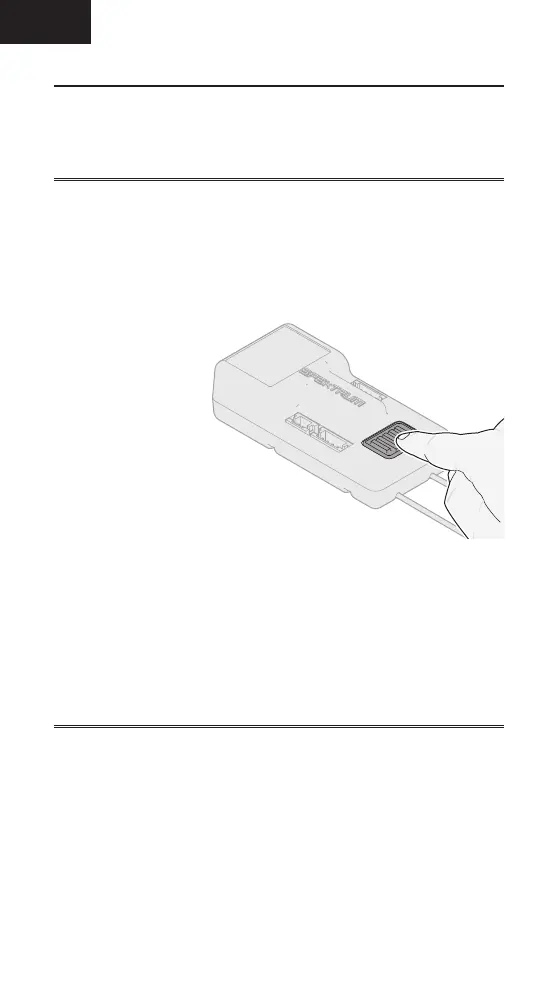

2. Push and hold the bind
button on the receiver
while turning the
receiver on. Release
the bind button once
the orange LED starts
to fl ash continuously,
indicating that the
receiver is in bind
mode.
TIP: It is still possible to
use a bind plug in the
BIND port if desired. This
can come in handy if the receiver needs to be mounted in a location that is
diffi cult to access, in which case a servo extension may be used for binding.
If using a bind plug, remove after binding to prevent the system from
entering bind mode the next time the power is turned on.
3. Put your transmitter in bind mode.
4. The bind process is complete when the orange LED on the receiver is solid.
Failsafe
In the unlikely event that the radio link is lost during use, the receiver will
enable the selected failsafe mode. Smart Safe + Hold Last is the default setting
on the AR6610T. Preset Failsafe and SAFE Failsafe are only available through
forward programming.
SmartSafe
+
Hold Last
If loss of signal occurs, SmartSafe™ technology moves the throttle channel to
its preset failsafe position (low throttle) that was set during binding. All other
channels will hold their last position. When the receiver detects the signal from
the transmitter, normal aircraft operation resumes.

Spektrum AR6610T Specifications

General

Quantity per pack	1 pc(s)
Voltage	9 V
Type	Radio-Controlled (RC) Model Parts
Modulation	DSM2, DSMX
Product type	Receiver
Product color	Multicolor
Antenna length	186 mm
Channels quantity	6 channels

Weight and Dimensions

Depth	49.8 mm
Width	23.34 mm
Height	15.02 mm
Weight	12 g
