EN
10

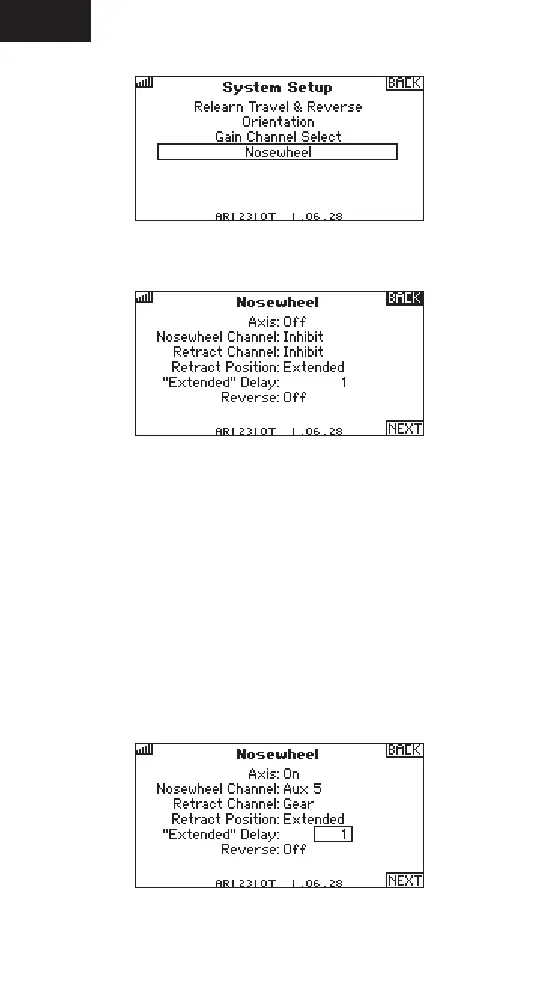

Nose-wheel
1. Select the Axis On or Off for the nose-wheel to activate or disable nose-
wheel gain
2. Select the nose-wheel servo channel.
3. Select the retract channel used, when the gear is retracted the gain will
be turned off.
4. Retract Position displays the current retract position based on the
channel and switch selected.
5. Extended Delay is used to delay the gain from activating on the nose-
wheel until the gear is extended. This can prevent damage to the model
when the nose-wheel is retracted or while extending. The range is 0 to
20 seconds.
6. Retract Reverse is used to select the direction of the retract channel – if
the nose-wheel gain is off when the gear is down and on when the gear
is up, reverse this setting to correctly have gain on when the gear is
down and off when the gear is up.
7. Pressing NEXT opens further nose-wheel setup options:
