Gain Channel

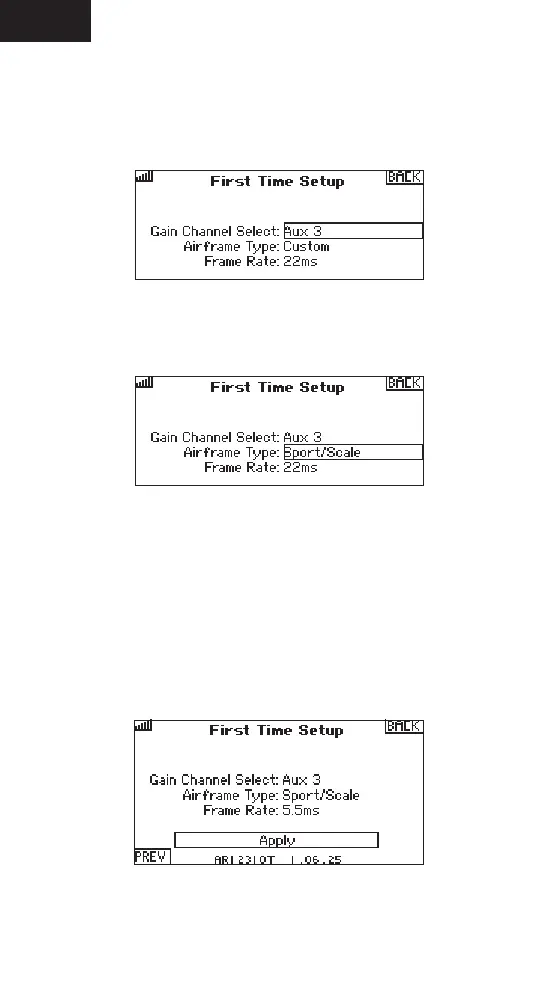

1. At the Gain Channel Select option, press the roller to select the input to
adjust the gain settings.
TIP: Use Channel Input Cong inside the Channel Assign Menu to select the
input for the channel you wish to use for gain adjustment.
2. Roll to the Airframe Type option. There are 2 different model types
available, Sport/Scale and 3D. These options pre-populate maximum
gain values for each axis, and the gain channel selected scales the gains
for all axes up or down. Select the appropriate type for your model.
3. Roll to Frame Rate, and select the frame rate desired. The frame rate
selected will adjust the frame rate of the response of the receiver and
AS3000 to the servos. Frame rate is applied to all channels from 1 to 12
(13 to 20 are always 22ms), not just gyro assigned outputs.
IMPORTANT: 22ms is the default setting and is appropriate for most aircraft.
IMPORTANT: The highest performance option is 5.5ms, however this
selection requires servos that can handle this frame rate. If the frame rate is
too high, it may cause jittery servos and shorter servo life.
4. After the Gain Channel Select, Airframe Type, and Frame Rate are
selected, roll to and press Apply.
TIP: Most aircraft will be setup without additional steps at this point.
For additional setup options continue on to the next pages :
