Spektrum DX2L User Manual

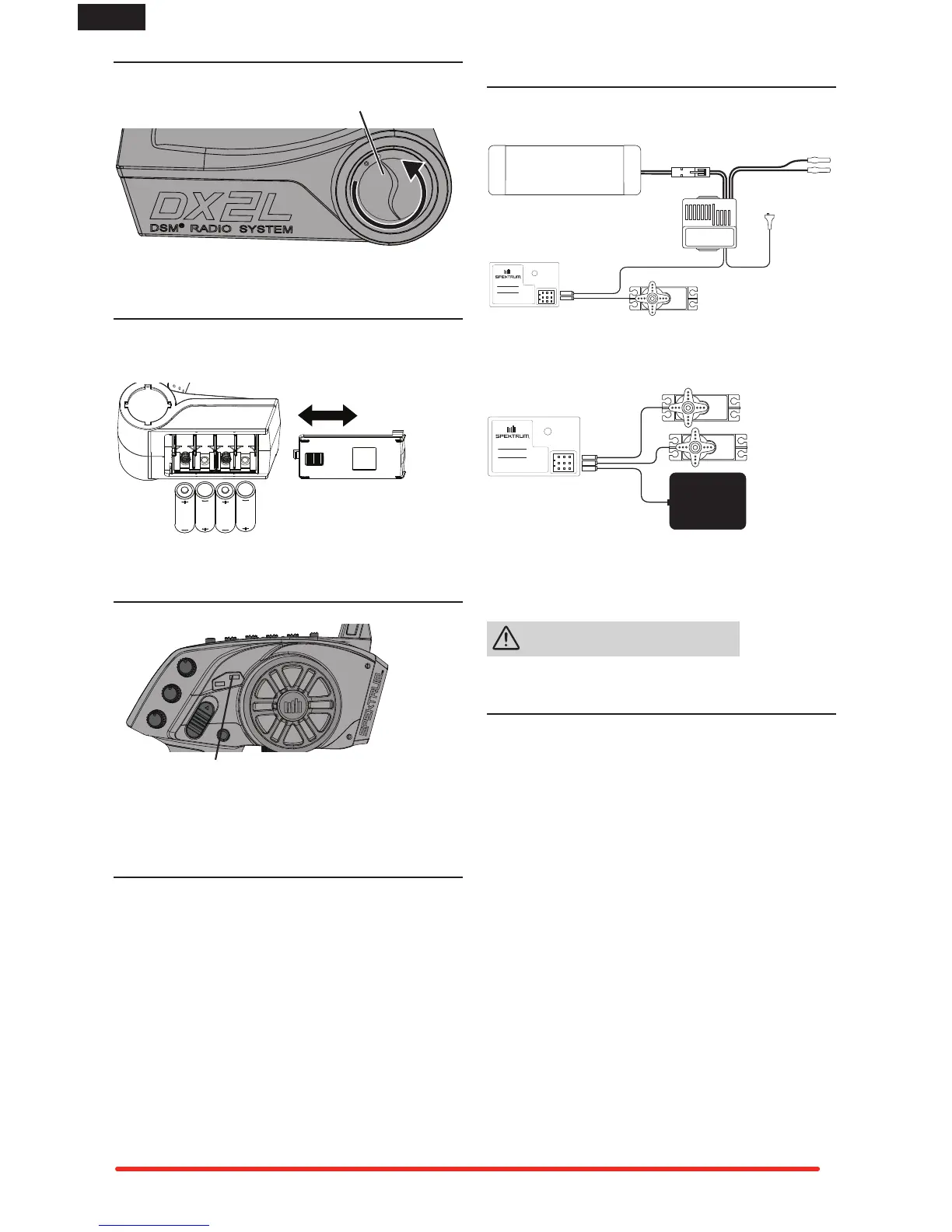

2 SPEKTRUM DX2L USER GUIDE
EN
BIND PLUG COMPARTMENT
Bind Plug Compartment
INSTALLING THE
TRANSMITTER BATTERIES
BATTERY LED MONITOR
ST. TRIM
TH. TRIM
MIN
MAX
ST. D/R
Solid Green Battery is good (Above 4V)
Flashing Green Battery voltage is critically low. Replace batteries
(below 4V)
TRANSMITTER COMPATIBILITY
The Spektrum DX2L transmitter is compatible with all
Spektrum
™
DSM
®
, DSM2
®
and Marine surface receivers.
INSTALLING THE RECEIVER
IN YOUR VEHICLE
Electric Vehicle Installation
Vehicle
To Motor
Electronic
Speed Control
Receiver
Steering Servo
SR200
THR
STR
BIND
2.4Ghz DSM
SPORT SURFACE
RECEIVER
Typical Nitro Vehicle Installation
Receiver
Steering Servo
Throttle Servo
SR200
THR
STR
BIND
2.4Ghz DSM
SPORT SURFACE
RECEIVER
Receiver Battery
Install the receiver in your vehicle using double-sided foam
servo tape. Foam servo tape holds the receiver in place and
protects the receiver from vibration. Position the antenna
vertically and away from the vehicle in an antenna tube.
CAUTION: Do not cut the antenna.
SETTING THE FAILSAFE POSITIONS
Failsafe positions are set during binding. In the unlikely event
that the radio link is lost during use, the receiver moves the
servos to their preprogrammed failsafe positions, normally
full brakes and straight steering, to prevent a vehicle from
running away. If you power the receiver on before powering
on the vehicle, the receiver enters the failsafe mode. Normal
control resumes when you power the transmitter on.
