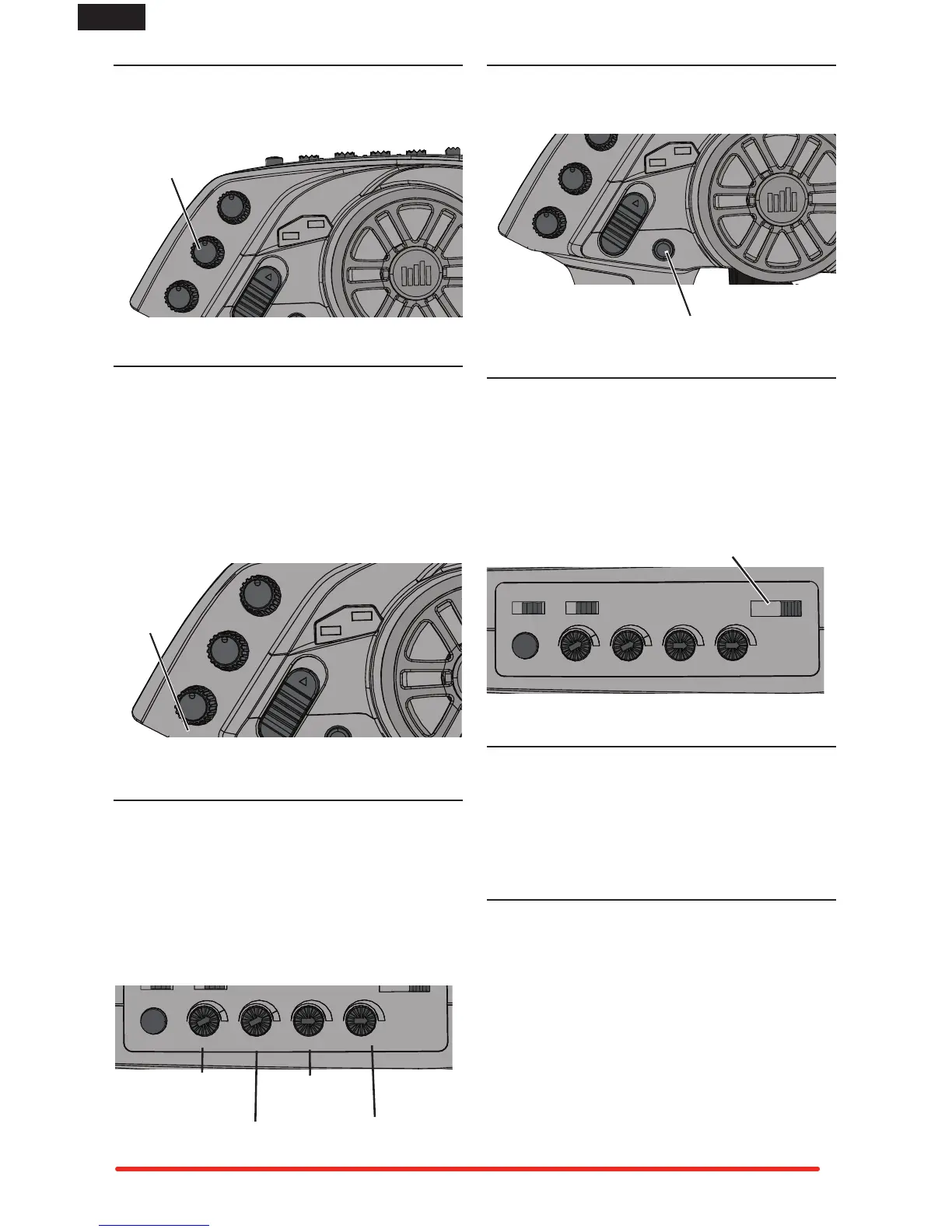

ADJUSTING THE THROTTLE TRIM
The throttle trim dial adjusts the throttle trim when the
throttle trigger is at neutral (center). If the wheels rotate
forward or backward when the throttle trigger is at neutral,
turn the throttle trim dial until the wheels stop rotating.
ST. TRIM
TH. TRIM
MIN
MAX
ST. D/R
Throttle Trim Dial
ADJUSTING THE STEERING RATE
Steering rate allows you to change how far the wheels turn
when you move the steering wheel. The steering rate range
is 20%–100%.
Turn the steering rate dial:
• Counterclockwisetoreducetheamountofsteering.
Reduce the steering if the vehicle turns too fast.
• Clockwisetoincreasetheamountofsteering.
Increase the steering if the vehicle turns too slow.
ST. TRIM
TH. TRIM
MIN
MAX
ST. D/R
Steering Rate
Dial
TRAVEL ADJUST
Traveladjustisusedtolimitthemaximumtravelthat
each channel will travel in each direction. Travel adjust is
independently adjustable in each direction. To reduce the
maximumtravelineachdirection,useyourfingerorasmall
screwdriver to rotate the corresponding travel adjust dial
counterclockwise. To increase travel in each direction, rotate
the corresponding dial clockwise. For steering, the travel
knob goes up to 150%, but should be operated at 100% for
most applications.
R.O.S.S. START BUTTON
The R.O.S.S. start button is used with vehicles featuring the
R.O.S.S. (Remote On-board Starting System). Push and hold
the ROSS button to active ROSS.
ST. TRIM
TH. TRIM
MIN
MAX
ST. D/R
R.O.S.S. Button
CHANGING THE THROTTLE LIMIT
The throttle limit switch enables you to limit the full throttle
position without adjusting the throttle travel adjustment.
Move the throttle limit switch to 50% or 75% for less
experienceddriversorwhenyouaredrivingthevehicleina
small area.
When you move the Throttle Limit switch to 100%, the full
throttle position is equal to the high Throttle Travel position.
INACTIVITY MONITOR
After 10 minutes of inactivity, the transmitter powers off to
extendthebatterylife.
To continue using the transmitter, move the transmitter
power switch to the OFF postion, then power on the
transmitter.
CHANGING THE RF MODE
The DX2L has a France RF Mode that complies with French
regulations. The DX2L must be in France mode when used
outdoors in France. At all other times, the transmitter should
be in Standard mode.
FRANCE MODE ON
Turn the wheel full left, pull the trigger full throttle and
hold down the bind button while turning on the transmitter.
The red LED will flash twice.
FRANCE MODE OFF (STANDARD MODE)
Turn the wheel full right, pull the trigger full throttle and
hold down the bind button while turning on the transmitter.
The red LED will flash once.
ST-L ST-R TH-F TH-BBIND
ST
TH
150% 150%
TH LIMIT
N R
N R
L M H
Travel Adjust
Steering Left
Travel Adjust
Steering Right
Travel Adjust
Throttle Forward
Travel Adjust
Throttle Reverse
Throttle Limit Switch
ST-L ST-R TH-F TH-BBIND
ST
TH
150% 150%
TH LIMIT
N R
N R
L M H
