FAILSAFE
Failsafe positions are also set during binding. In the
unlikely event that the radio link is lost during use, the
receiver will drive the servos to their preprogrammed
failsafe positions (normally full brakes and straight
steering).IftheSR300receiveristurnedonpriorto
turning on the transmitter, the receiver will enter the
failsafe mode, driving the servos to their preset failsafe
positions. When the transmitter is turned on, normal
control is resumed. Failsafe servo positions are set
duringbinding(seeBindonthepreviouspage).
SERVO REVERSING
Servo reversing is used to reverse the direction of the
output of each channel. (e.g., a right steering command
results in the wheels turning right). To reverse a channel,
switch the position of the correlating switch. “N” is for
normal.“R”isforreverse.Asmallscrewdrivercanbe
used to move the switch if necessary.
AUXILIARY SETTINGS LINEAR,
2-POSITION, 3-POSITION
TheAuxiliarychannelcanbeselectedtooperateinthree
different methods:
2-Position(2P)-Theservotravelstoitsopposite
endpoints when the auxiliary button is pressed. Ideal for
forward and reverse transmissions and some two speed
transmissions.
3-Position(3P)-Theservotravelsfromendpoint
to center to the opposite endpoint when the auxiliary
button is pressed. Used for forward, neutral and reverse
transmissions and some 3-speed transmissions.
Linear (LIN)-Thisallowstheservopositiontobe
controlled proportionately. Ideal for mixture control on
engines.
Note that the servo reversing and travel adjust functions
are used to adjust the endpoints and direction of the
auxiliary channel.
TRAVEL ADJUST
Travel adjust is used to limit the maximum travel that
each channel will travel in each direction. Travel adjust
is independently adjustable in each direction. To reduce
the maximum travel in each direction, use your finger
or a small screwdriver to rotate the corresponding travel
adjust dial counterclockwise. To increase travel in each
direction, rotate the corresponding dial clockwise.

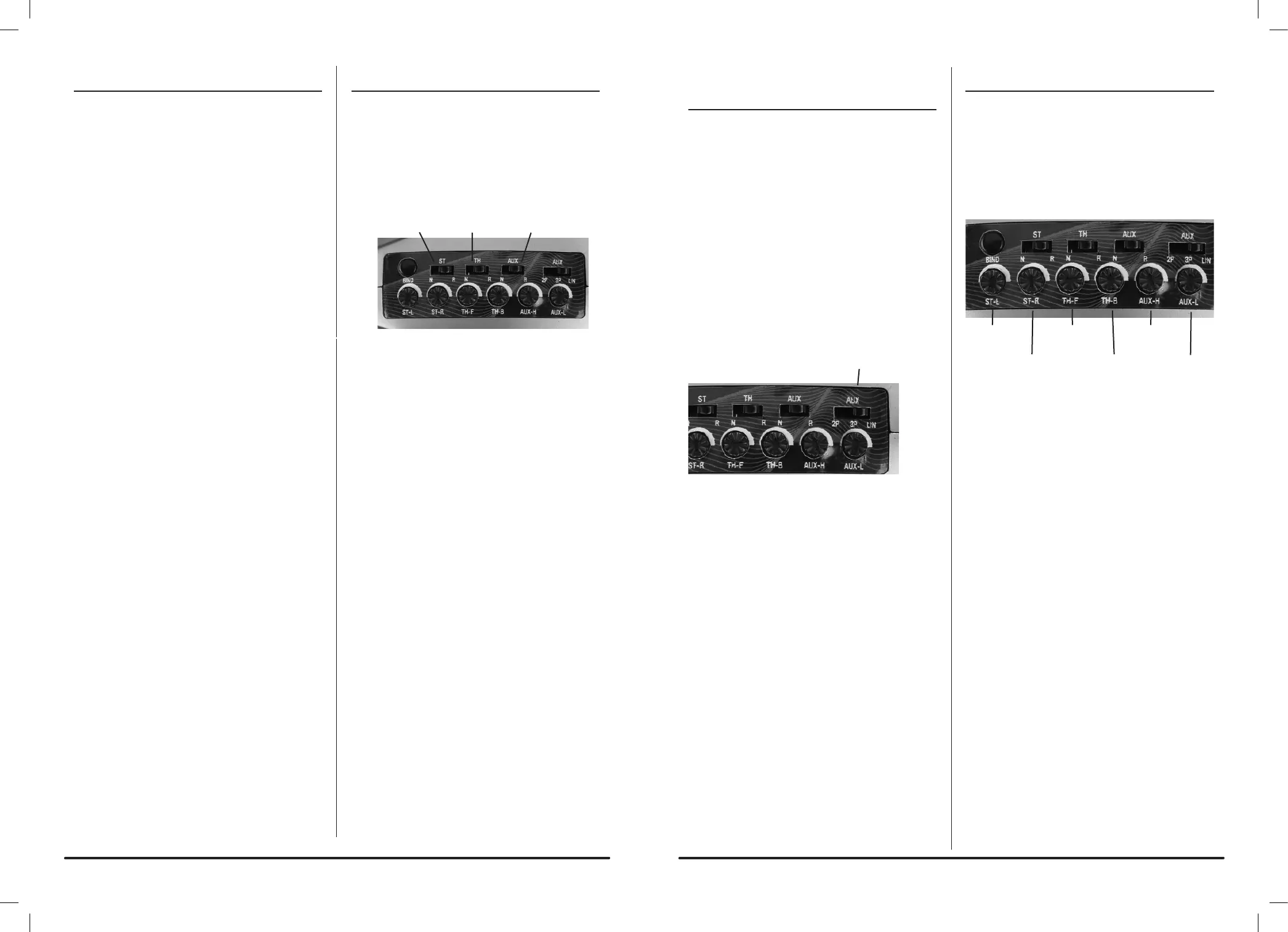

Auxiliary Setting
Switch
Reverse Switch
Steering
Reverse Switch
Throttle
Reverse Switch
Auxiliary
Travel Adjust
Steering Left
Travel Adjust
Steering Right
Travel Adjust
Throttle Forward
Travel Adjust
Throttle Reverse
Travel Adjust
Aux High
Travel Adjust
Aux Low
