Spektrum DX4C • tranSmitter inStruCtion manual
EN
4
INSTALLING BATTERIES
CAUTION: NEVER remove the transmitter batteries
while the model is powered on. Loss of model control,
damage or injury may occur.

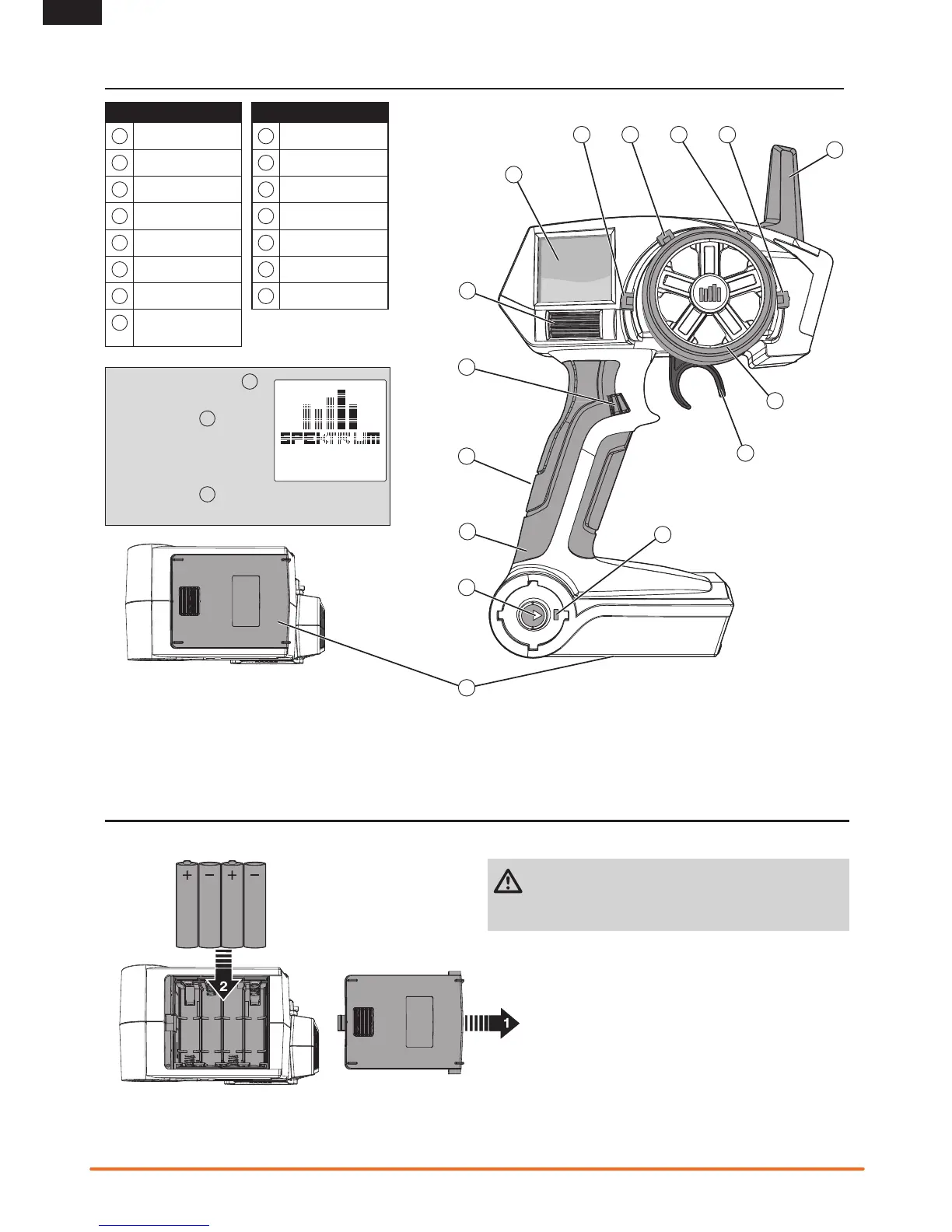

IDENTIFYING CONTROLS AND SWITCHES
Function
A
Button A
B
Button B
C
Button C
D
Button D
E
Button E
F
LCD Screen
G
Roller Selector
H
Memory Card Port
(under rubber grip)
Function
I
Rubber Grip
J
Power Switch
K
Power LED
L
Battery Cover
M
Throttle Trigger
N
Steering Wheel
O
Antenna
O
N
M
J
I
H
G
F
E
DCBA
L
Press the power switch to
power ON the transmitter.
The Power LED will
come on, a Spektrum logo
screen will show, then the
Main Screen will show on
the LCD screen .
K
K
F
J
