Specifications
Type: DSMR
Dimensions (LxWxH): 1.30 x .80 x .53 in (32.8 x 20.3 x 13.5mm)
Channels: 2 Weight: 0.25 oz (7.2 g)
Band: 2.4GHz Voltage Range: 3.2–9.6V
Receiver Connection and Installation
Install the Receiver in your vehicle using double-sided foam servo tape. Foam
servo tape will hold the receiver in place and help isolate it from vibrations.
Mount the antenna up and away from the vehicle in an antenna tube. The
higher up the antenna is, the better signal it will receive. The last 31mm of the
antenna is the portion that receives the signal from the transmitter.
NOTICE: Do not cut or modify the antenna.
Failsafe
The throttle failsafe position is set during binding. In the unlikely event that the
radio link is lost during use, the receiver will drive the the throttle servo to its
pre-programmed failsafe position (normally full brakes) and all other channels
will have no servo output. If the receiver is turned on prior to turning on the
transmitter, the receiver will enter the failsafe mode, driving the the throttle
servo to its preset failsafe position. When the transmitter is turned on, normal
control is resumed.
IMPORTANT: Failsafe activates only in the event that signal is lost from the
transmitter. Failsafe will NOT activate in the event that receiver battery power
decreases below the recommended minimums or power to the receiver is lost.
SR210 Instruction Manual
The Spektrum™ SR210 2-channel DSMR™ Sport Surface receiver is
compatible with all Spektrum DSMR surface transmitters. The SR210 receiver
is NOT compatible with DSM
®
or DSM2
®
transmitters.

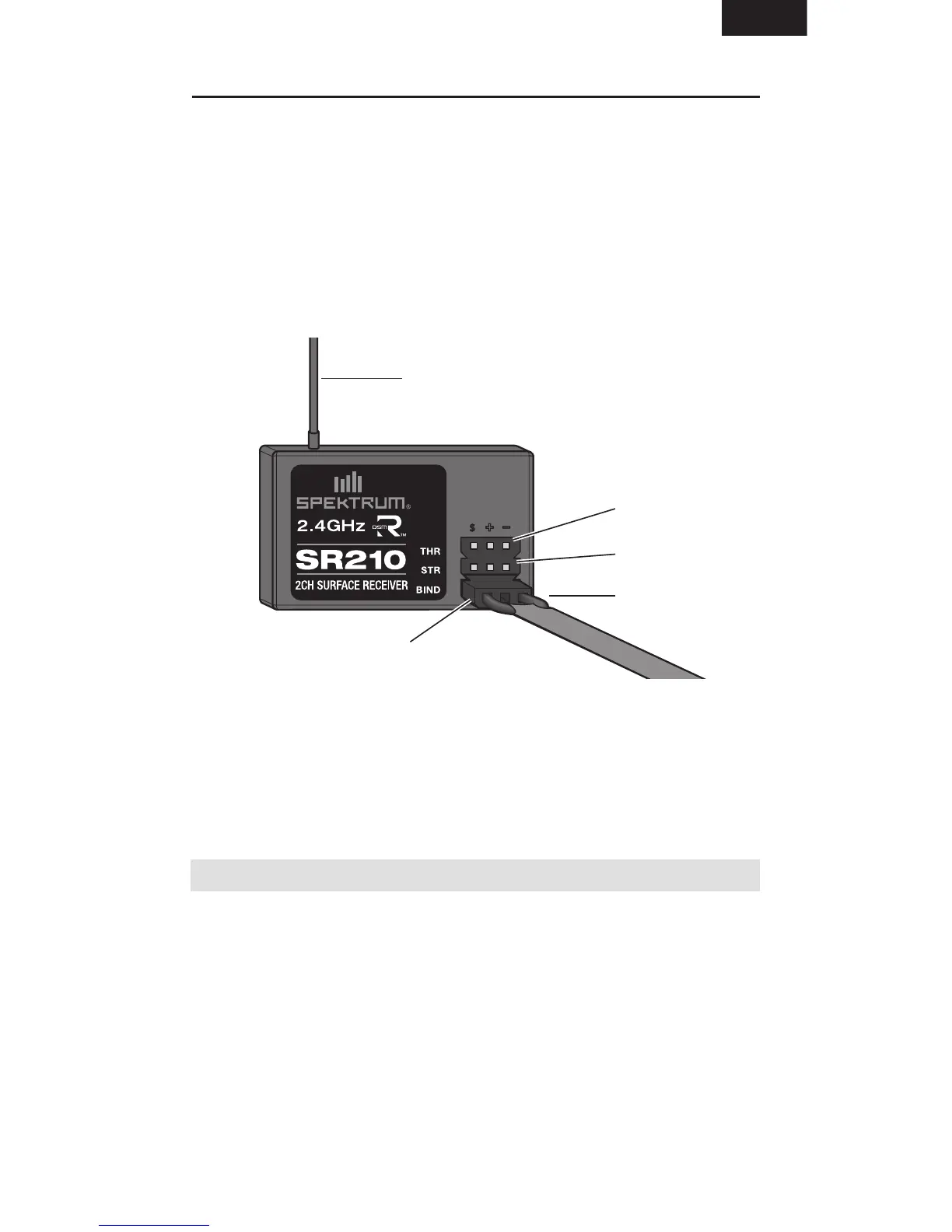

Antenna
Bind Plug
Bind/Battery Port
Steering Port
Throttle Port
To Next Page
