Sec. 8 FUSE REPLACEMENT
A 0.5A, 250V, 5 x 20mm fast acting fuse, Part # F-17 is installed in the instru-
ment and used to protect the ampere ranges (other than the 10A range) along
with other solid state components.
WARNING
Before attempting to replace the fuse, disconnect the test leads from any
energized circuit and then disconnect the test leads from the instrument.
Replace the fuse with Part # F-17 or approved equal only. Always use fast
acting, high interrupting type fuses.
1. Disconnect the test leads from any energized circuit and then from the
instrument.
2. Turn the range selector switch to the "OFF" position.
3. Remove the battery cover.
4. Remove the fuse from the clip on the end of the PCB. (See Fig. 5).
5. Install the replacement fuse being certain it meets the Part # F-17
specifications.
6. Replace battery cover.
10

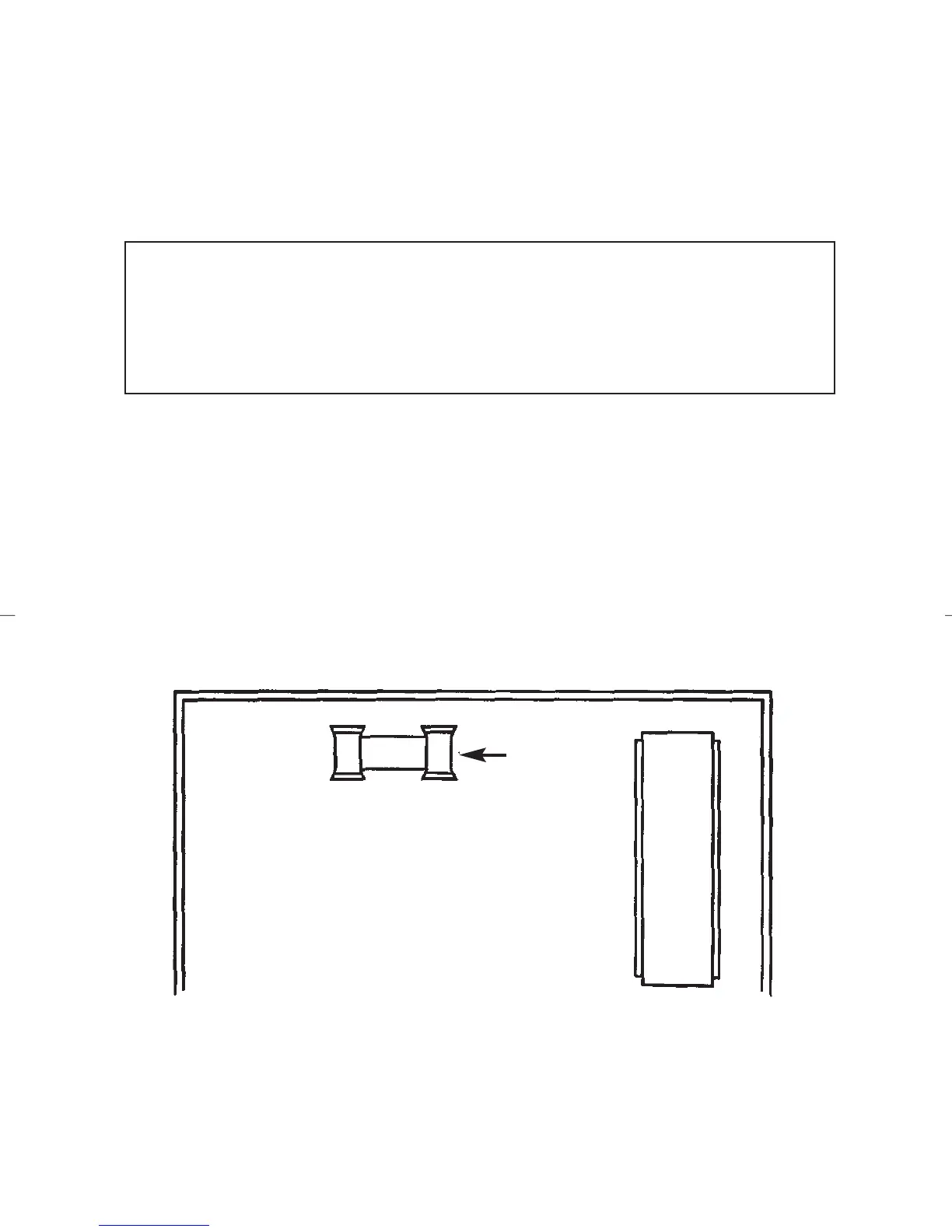

Fig. 3
Fuse
