• Set the Function Switch to an appropriate position before starting measurement.
• Firmly insert the test leads.
• Disconnect the test leads from the instrument for current measurement.
• Do not expose the instrument to the direct sun, high temperature and humidity or dewfall.
• Be sure to power off the instrument after use. When the instrument will not be in use for a long period,
place it in storage after removing the batteries.
• Use only a soft cloth dampened with water or neutral detergent for cleaning the meter.
Do not use abrasives, solvents or harsh chemicals. Allow to dry thoroughly before use.
CAUTION

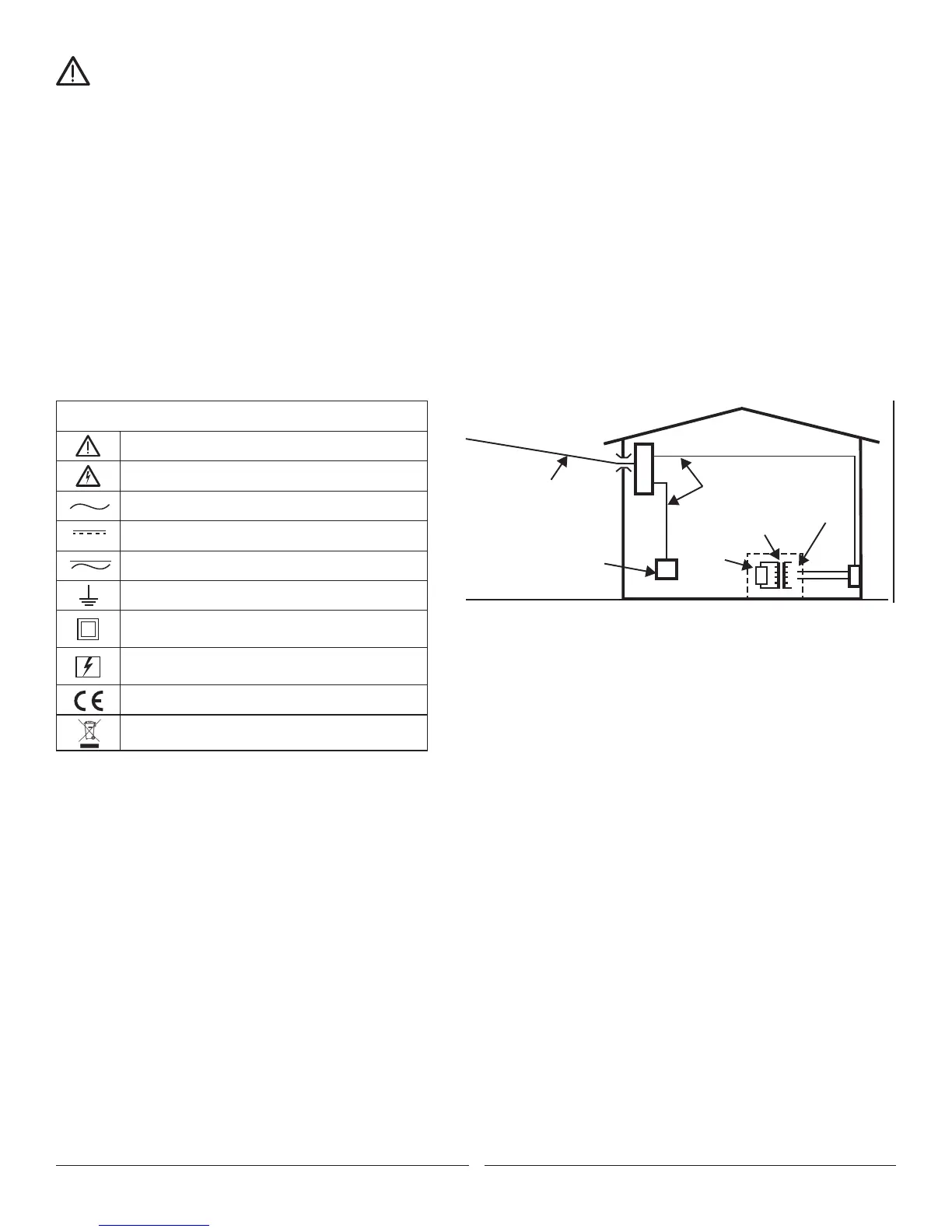

Measurement categories (Over-voltage categories)
To ensure safe operation of measuring instruments, IEC61010 establishes safety standards for various electrical environments, specified as CAT I
through CAT IV, and called measurement categories. Higher-numbered categories correspond to electrical environments with greater momentary
energy, so a measuring instrument designed for CAT III environments can endure greater momentary energy than one designed for CAT II.
• CAT I: Secondary electrical circuits connected to an AC electrical outlet through a transformer or similar device.
• CAT II: Primary electrical circuits of equipment connected to an AC electrical outlet by a power cord.
• CAT III: Primary electrical circuits of the equipment connected directly to the distribution panel, and feeders
from the distribution panel to outlets.
• CAT IV: The circuit from the service drop to the service entrance, and to the power meter and primary over
current protection device (distribution panel).
Incoming wire
Interior wiring
CAT. III
Transformer
CAT. II
CAT. I
CAT. IV
Socket
Symbols
Caution, risk of danger, refer to the operating manual before use
Caution, risk of electric shock
AC (Alternating Current)
DC (Direct current)
AC/DC Selectable (Alternating Current/Direct Current)
Earth (ground) Terminal
The equipment is protected throughout by
double insulation or reinforced insulation
Application around and removal from hazardous
live conductors is permitted.
Conforms to Standards of European Union
Designates the product as recyclable
electronic waste per WEEE Directive
1.0 METER FUNCTIONS
Meter type: Manual
Functions: 8
Ranges: 28
Display Count: 1999
Test Lead Icons: on display indication of proper test lead input for easy to see proper test lead placement.
Input impedance: 10 Meg Ohm
AC Volt Ranges: 2V, 20V, 200V, 750V, best accuracy (0.8%+5)
DC Volt Ranges: 200mV, 2V, 20V, 200V and 1000V, best accuracy (0.5%+5)
AC Amps: 200µA, 2mA, 20mA, 200mA and 10A, best accuracy (1.0%+5)
DC Amps: 200µA, 2mA, 20mA, 200mA and 10A, best accuracy (0.8%+2)
Resistance Ranges: 200ohm, 2kohm, 20kohm, 200kohm, 2M ohm and 20M ohm, best accuracy (0.8%+3)
Battery Testing: (1.5V) 2000mV / (9V), best accuracy (0.8%+5)
Over Range Indication: Displayed value > 1999, displays OL (The safety and accuracy will only be guaranteed
within the specification range) by the input.
Polarity Indication: “-” is displayed for negative polarity
Electro-Magnetic: When it is under 1V/m frequency : total accuracy = assigned accuracy +5% of the range.
When it is over 1V/m frequency: there is no assigned accuracy.
Agency Approvals: ETL, CE (IEC/EN61010:, CAT III 600V, Pollution Degree 2
Operating Temperature: 32°F–104°F (0°C–40°C)
Relative Humidity: 32°F–86°F below <75%, 86°F–104°F<50%
Storage Temperature: 14°F–122°F(-10°C–50°C)
Dimension: 179mm x 88mm x 39mm
Weight: Around 380g (including battery)
Altitude: Maximum 2000m
Warranty info: 5 yr.
3
