Warning: when the controller is in normal charging state, disconnecting the
battery will have some negative effect on the DC loads, and in extreme cases, the loads
may get damaged.
Warning: within 10 minutes after the controllers stops charging, if the
battery's poles are reversely connected, internal components of the controller may get
damaged.
Note:
1) The battery's fuse or breaker shall be installed as close to the battery side as
possible, and it's recommended that installation distance be not more than
150mm.
2) If no remote temperature sensor is connected to the controller, the battery
temperature value will stay at 25 °C.
3) If an inverter is deployed in the system, directly connect the inverter to the
battery, and do not connect it to the controller's load terminals.
3. Product Operation and Display

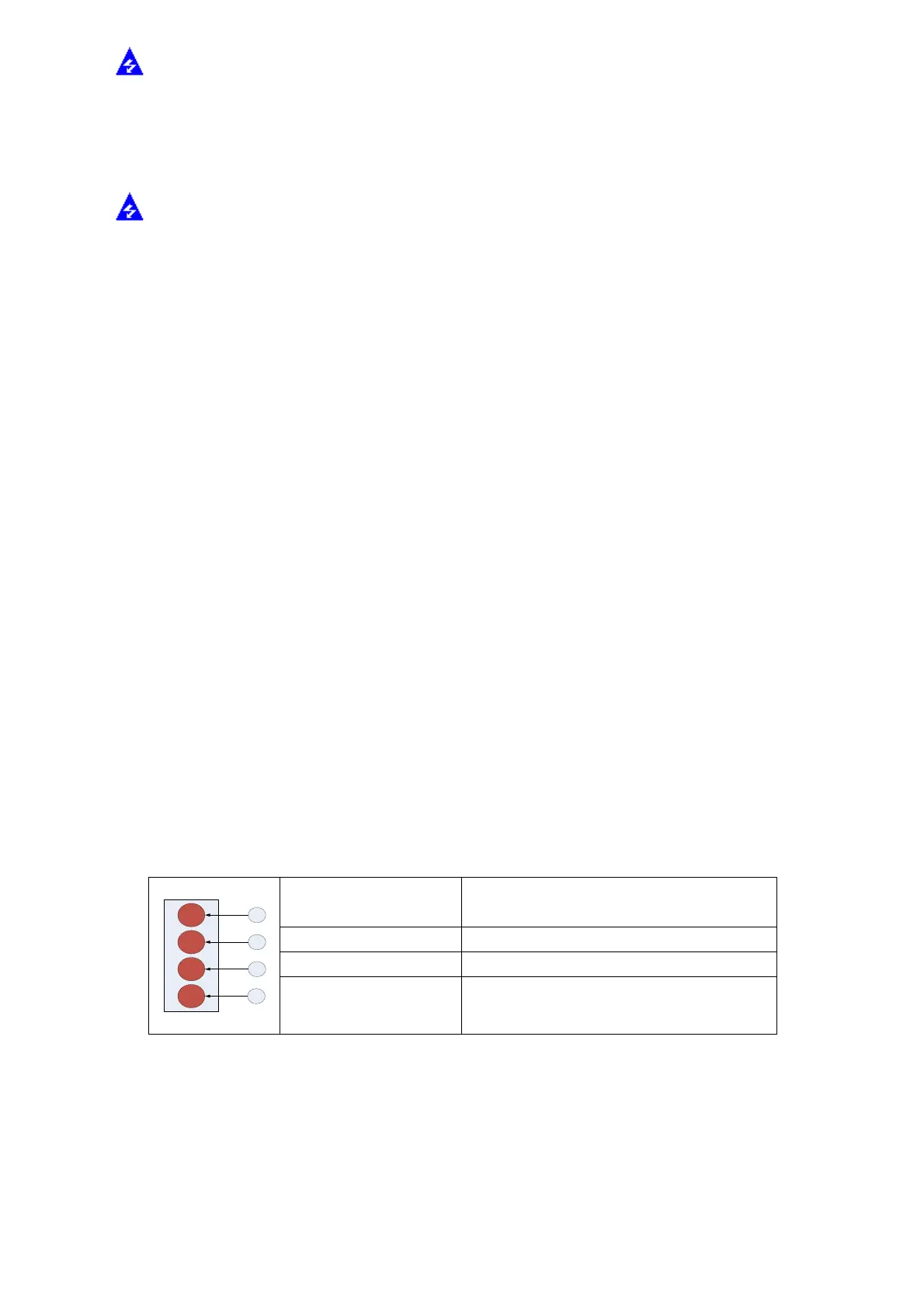

3.1 LED Indicators
○
1
---PV array indicator
Indicating the controller's current charging
mode.
○
2
---BAT indicator
Indicating the battery's current state.
○
3
---LOAD indicator
Indicating the loads' On/ Off and state.
○
4
---ERROR indicator
Indicating whether the controller is
functioning normally.
 PV array indicator:
1
2
3
4
