CC335/CC355

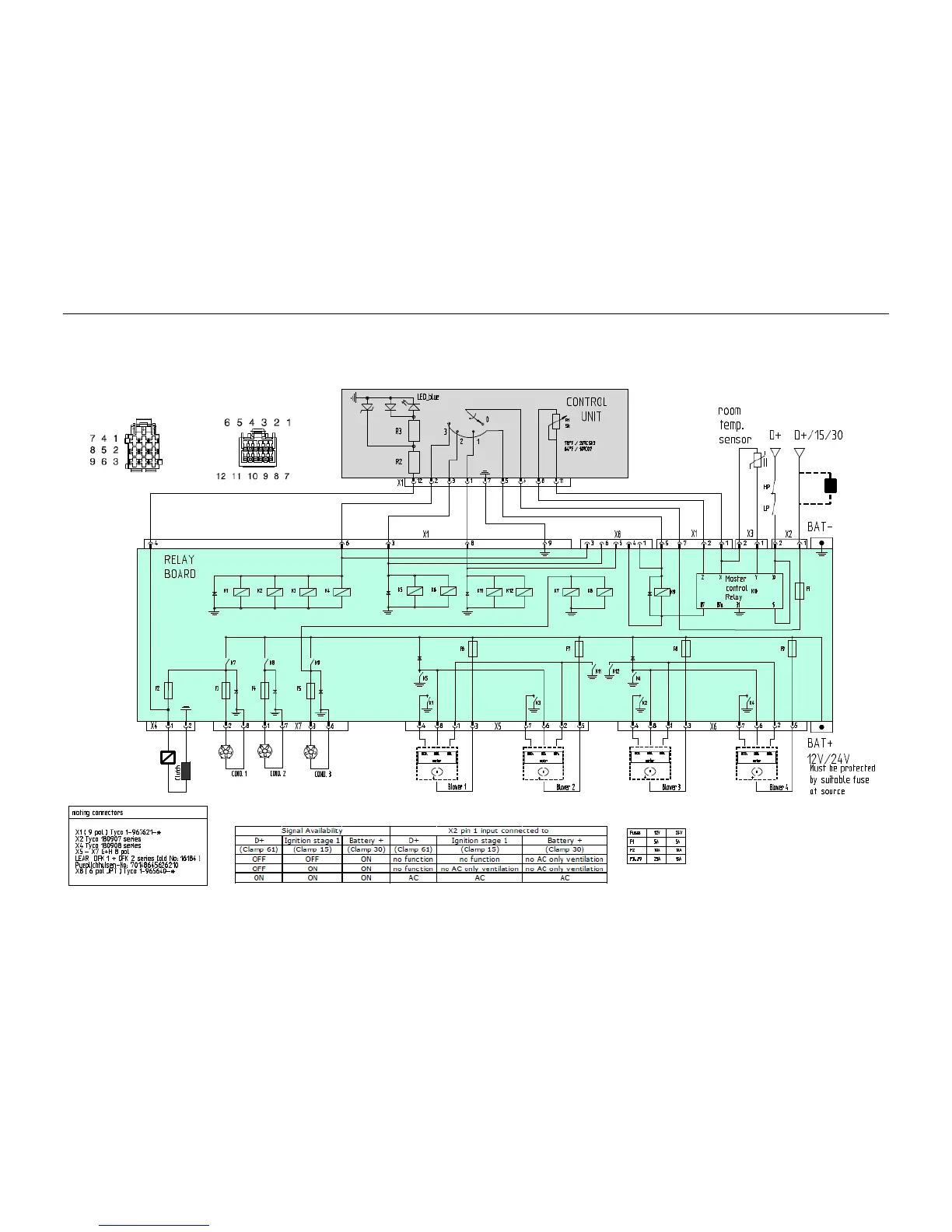

7.2 Relay Board 11117762A with 11116024A Manual Control Panel Schematic
21
Control Panel
Male Connector
Relay Board X1 Connector
(Pin Side)
D+ = Alternator
15 = Ignition
30 = Battery
Optional
Noise
Suppression
Switch
Field Supplied
Clutch Relay
Recommended
