1. Equipment General Arrangement
1.1 CC335 / CC355 Air Conditioner Components

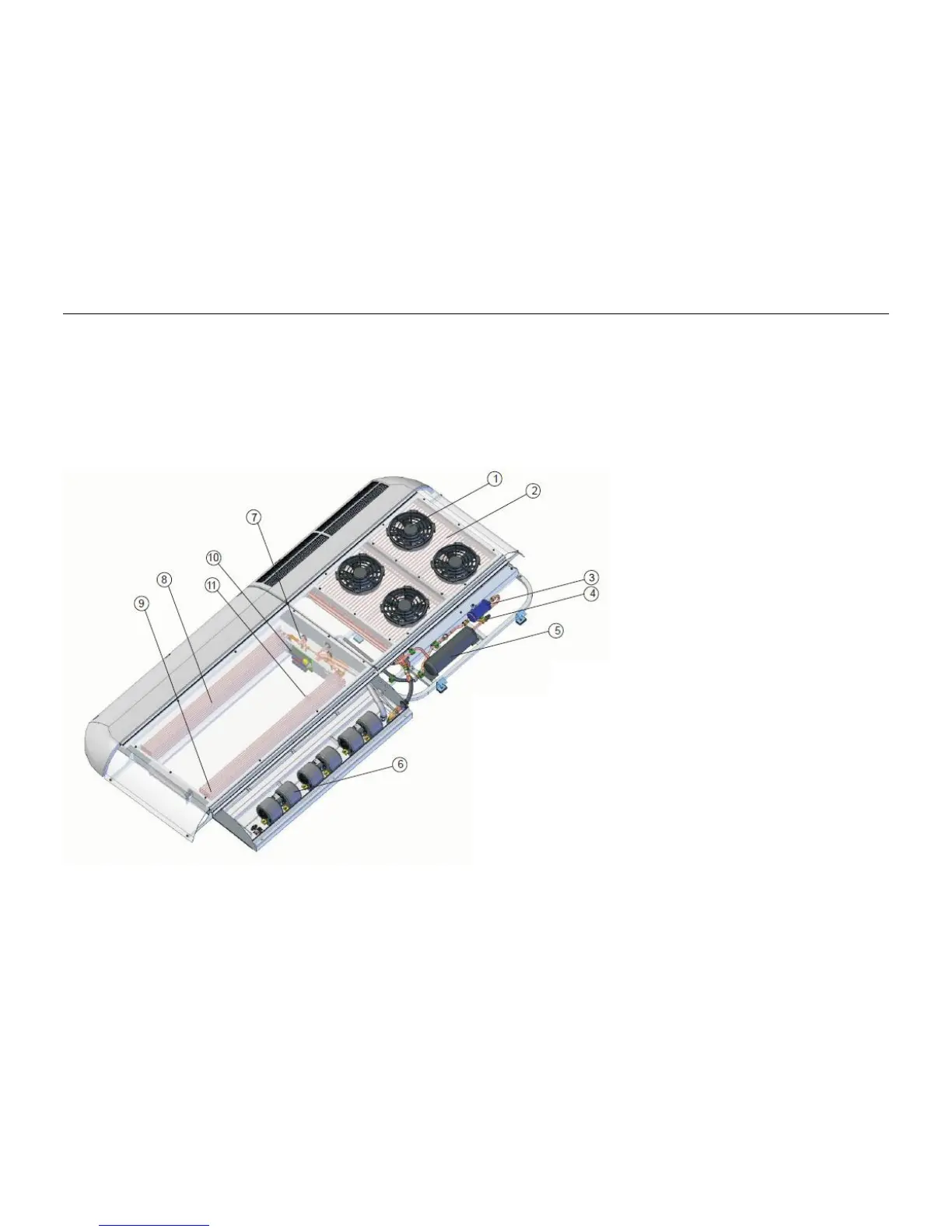

The CC335 / CC355 air conditioner and its main components are shown in Fig. 1.
Fig. 1
6
1. Condenser Fan
2. Condenser Coil
3. Filter Drier
4. Globe Valve
5. Receiver
6. Evaporator Blower
7. Expansion Valve
8. Left Evaporator Coil
9. Right Evaporator Coil
10. Relay Board
11. Evaporator Temperature Sensor
