Spin ATF 2 BASIC - Oil Replacement in Torque Converter; Adding Transmission Longevity Additive

19/11/2013 Vers. 1.1 10

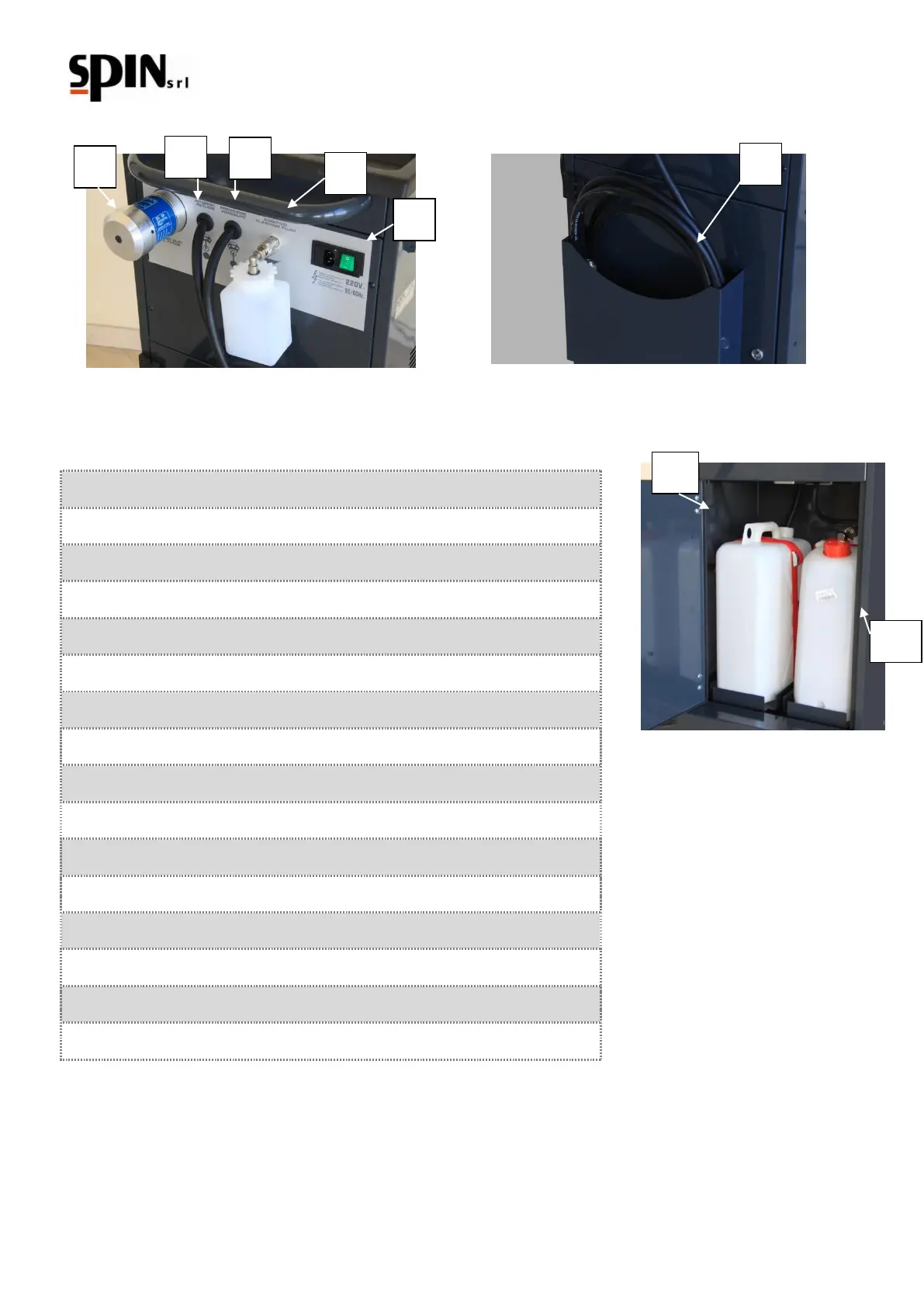

Figura 5 – Back panel detail
A: 240x64 graphic display;
B: 4-key control keyboard;
C: Flow meter for new oil status control with led lighting,
D: Flow meter for used oil status control with led lighting;
E: Oil filter with magnetic sensor;
F: ATF output pressure gauge (pressure)
G: Automatic transmission output pressure gauge (return)
Ha: 20 lt used oil tank;
Hb: 20 lt new oil removable tank;
I: Fitting for printer (supplied on request)
J: Return line (return)
K: Pressure piping (pressure)
N: Used oil drain piping;
O: Polisnap module;
P: Tank for additive refill;
Q: Rear seat for the charging hoses;
Figura 6 - Rear seat for the charging
hoses
E
K
O
J
P
Q
Ha
Hb
Figure 7 – new/used oil removable tank
