19/11/2013 Vers. 1.1 26

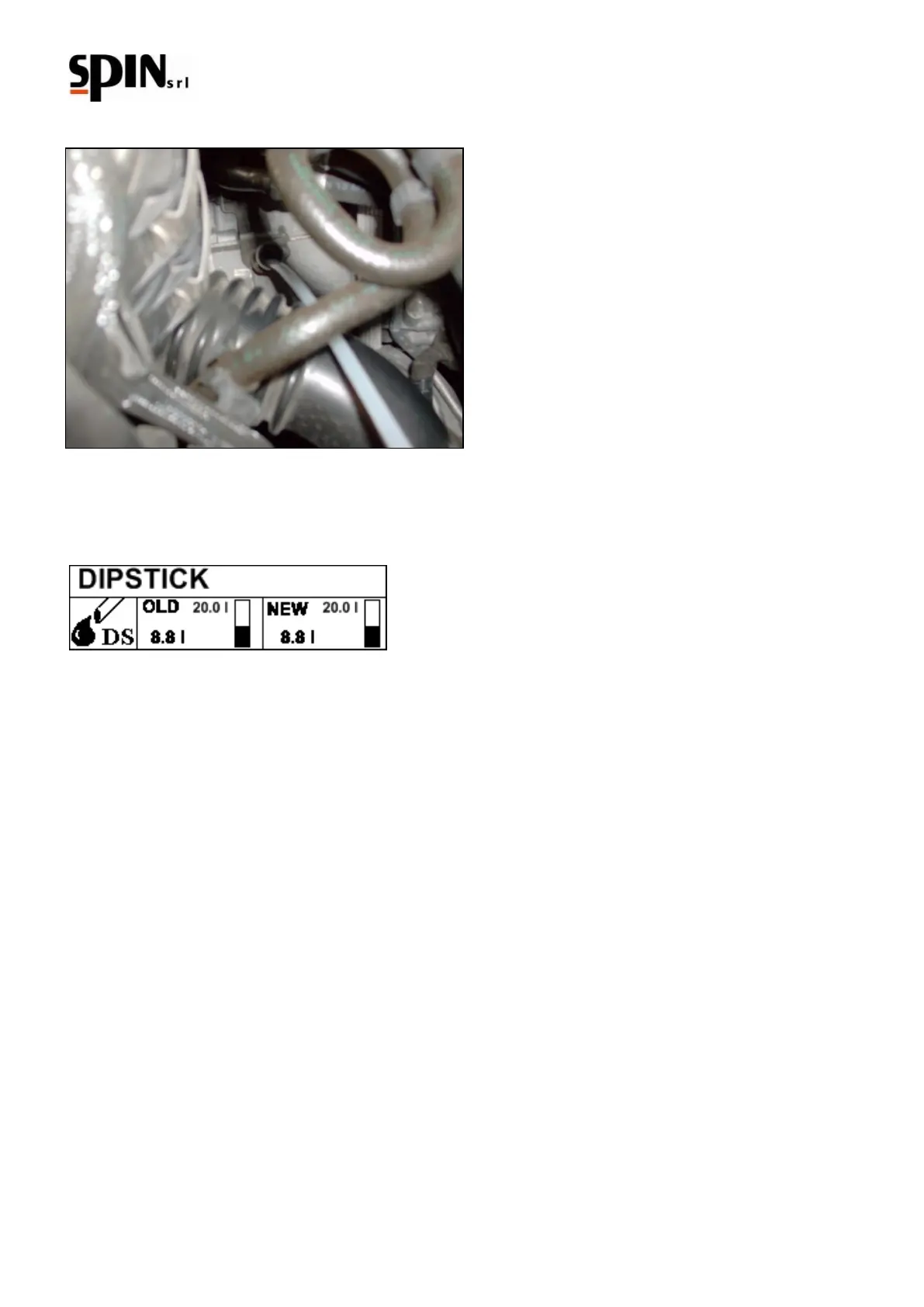

Insert the other end in the transmission, to the bottom, as shown here.
Selecting the 'DIPSTICK' function the station goes to the following screen.
Pressing the DOWN Arrow button the station draws used oil from the car.
Turn off the pump by releasing the button when air bubbles appear in the flow meter.
Pressing the UP Arrow key the station pushes new oil into the car.
Release the button when you have entered the same amount of oil previously removed.
Releasing the arrow button the station terminates the operation.
Figure 27 - Insertion of the tube for oil replacement in
sealed automatic transmissions
