BPT13 Balanced Pressure Thermostatic Steam Traps
Pressure bar g
Temperature °C
Steam saturation curve
Pressure psi g
Temperature °F

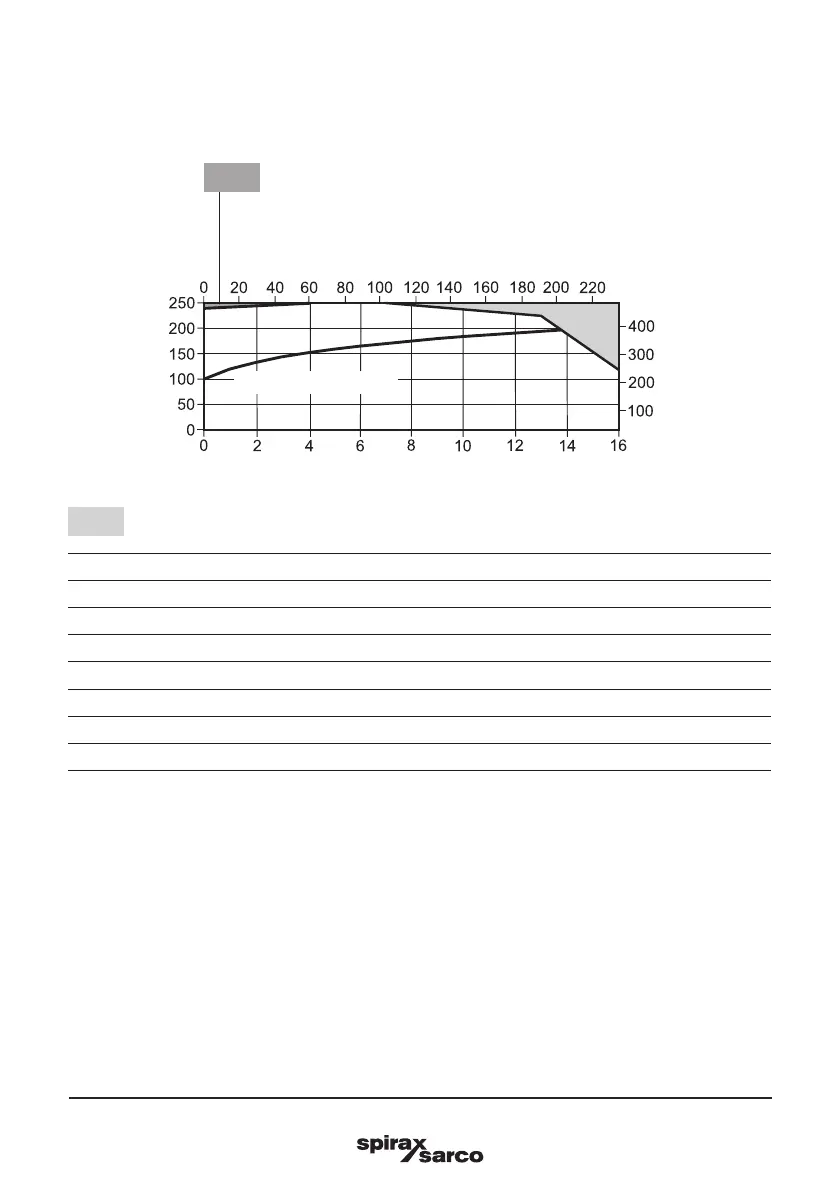

2.3 Pressure / temperature limits (ISO 6552)
The product should not be used in this region or beyond its operating range
as damage to the internals may occur.
The product must not be used in this region.
Body design conditions PN16
PMA Maximum allowable pressure 16 bar g @ 120 °C (232 psi g @ 248 °F)
TMA Maximum allowable temperature 250 °C @ 7 bar g (482 °F @ 102 psi g)
Minimum allowable temperature -20 °C (-4 °F)
PMO Maximum operating pressure 13 bar g @ 220 °C (189 psi g @ 428 psi g)
TMO Maximum operating temperature 250 °C @ 7 bar g (482 °F @ 102 psi g)
Minimum operating temperature 0 °C (32 °F)
Designed for a maximum cold hydraulic test pressure of: 24 bar g (348 psi g)
