Spirax Sarco MFP14-PPU - Materials

IM-P681-02 ST Issue 2
12
3.4 Materials
No Part Material
1 Receiver Mild steel
2 Base plate and frame Mild steel
3 MFP14 pump SG iron
4 DCV10 check valve Stainless steel
5 BSA2T isolation valve SG iron
6 Fig 37 strainer SG iron
7 M10S2 RB ball valve straight handle Carbon steel
8 PC10 Quick-fit connector Stainless steel
9 UTD30L thermodynamic steam trap Stainless steel
10 Steam inlet drain trap flexible hose Mild steel / stainless steel
11 Exhaust flexible hose Mild steel / stainless steel
12 Pipework Mild steel
Spare parts
See individual product TI
for available ancillary spares
1
5
2
4
3
7
5
4
8 + 9
6
6
11
10
12
Y
Z
Z
X
W
V

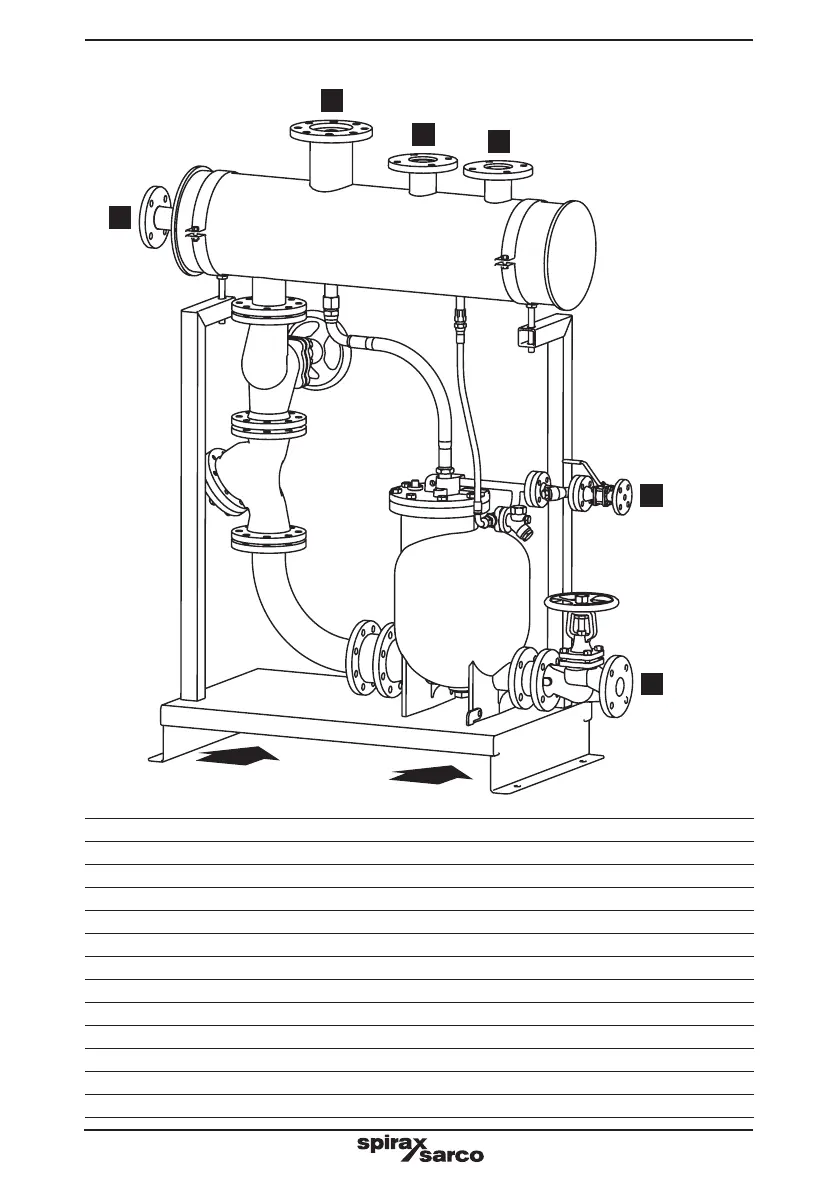

Fig. 6
The only safe
lifting points
