6. Maintenance
Mechanism inspection and repair
Safety notes:
Before actioning any maintenance programme observe the 'safety information' in
Section 1.
Always use suitable lifting gear and that the correct lifting points are adhered to (See
Figures 6, 8, 9 and 10). Ensure the MFP14-PPU is safely secured.
When dismantling the pump, care should be taken to prevent personal injury from the
strong snap mechanism.
Always handle with care.
For full maintenance instructions, on each component of the PPU, refer to the relevant
product specific IMI supplied with the unit.
Spare parts
See the product specific TI for spares availability for each of the ancillary units that are used
to make the MFP14-PPU.
Safe lifting point
Safe lifting point

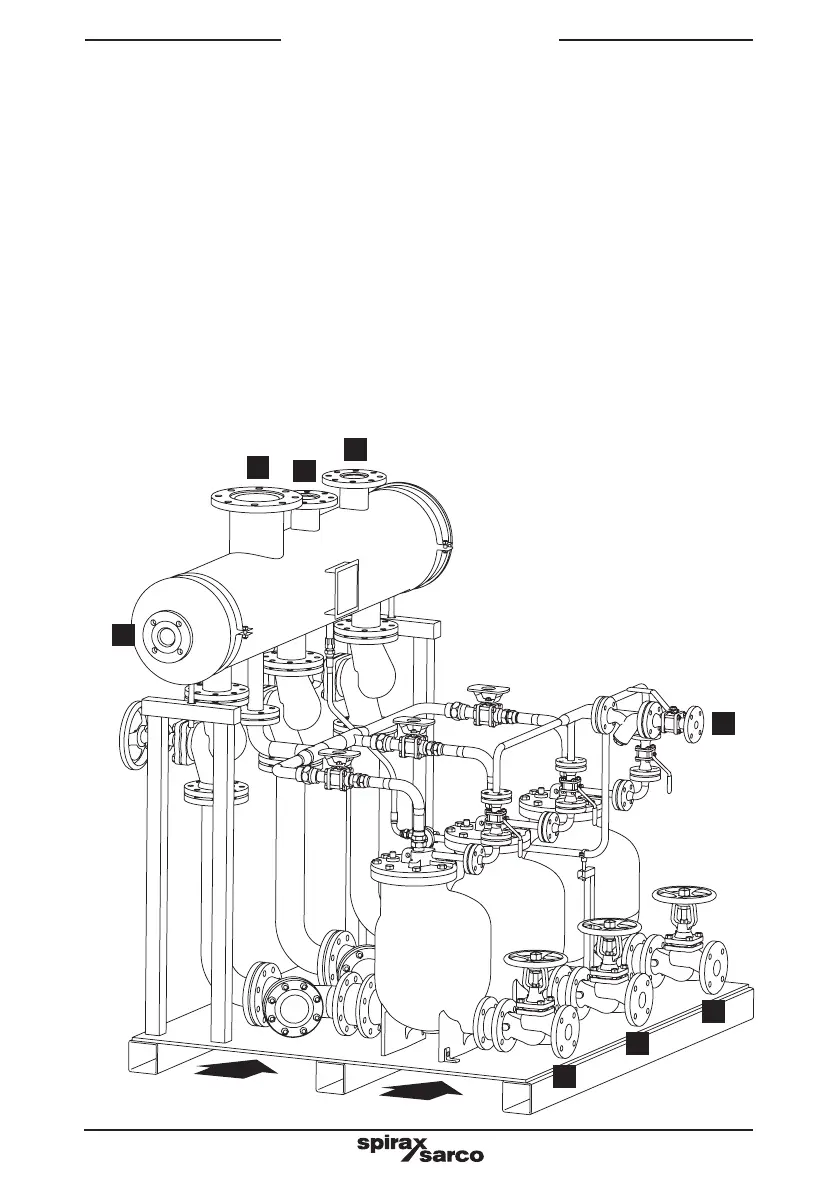

Fig. 10 Triplex MFP14-PPU shown
Y
Z
Z
X
W
V
V
V
