5.4 Materials
No Part Material
1 Receiver Mild steel
2 Base plate and frame Mild steel
3 MFP14 pump SG iron
4 DCV10 check valve Stainless steel
5 BSA2T isolation valve SG iron
6 Fig 37 strainer SG iron
7 M10S2 RB ball valve oval / straight handles Carbon steel
8 PC10 quick-fit connector Stainless steel
9 UTD30L thermodynamic steam trap Stainless steel
10 Steam Inlet flexible hose Mild steel / stainless steel
11 Exhaust flexible hose Mild steel / stainless steel
12 Pipework Mild steel
13 DCV41 check valve Stainless steel
1
5
5
5
2
6
4
4
5
5
5
3
3
3
8+9
7
7
7
Spare parts
See individual product TI
for available ancillary spares
13
13
13
12
12
12
7
7
7
6
7
11
11
11
10
Safe lifting point
Safe lifting point

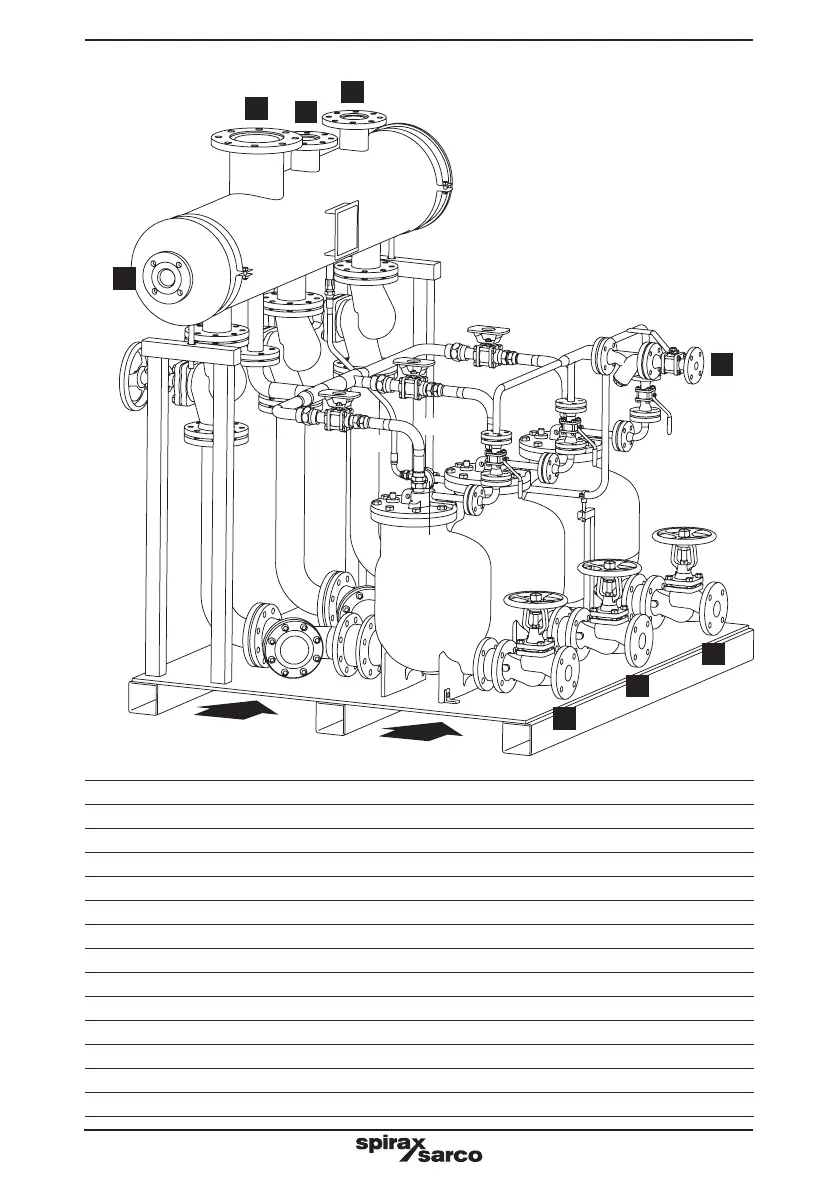

Fig. 9
Y
Z
Z
X
W
V
V
V
