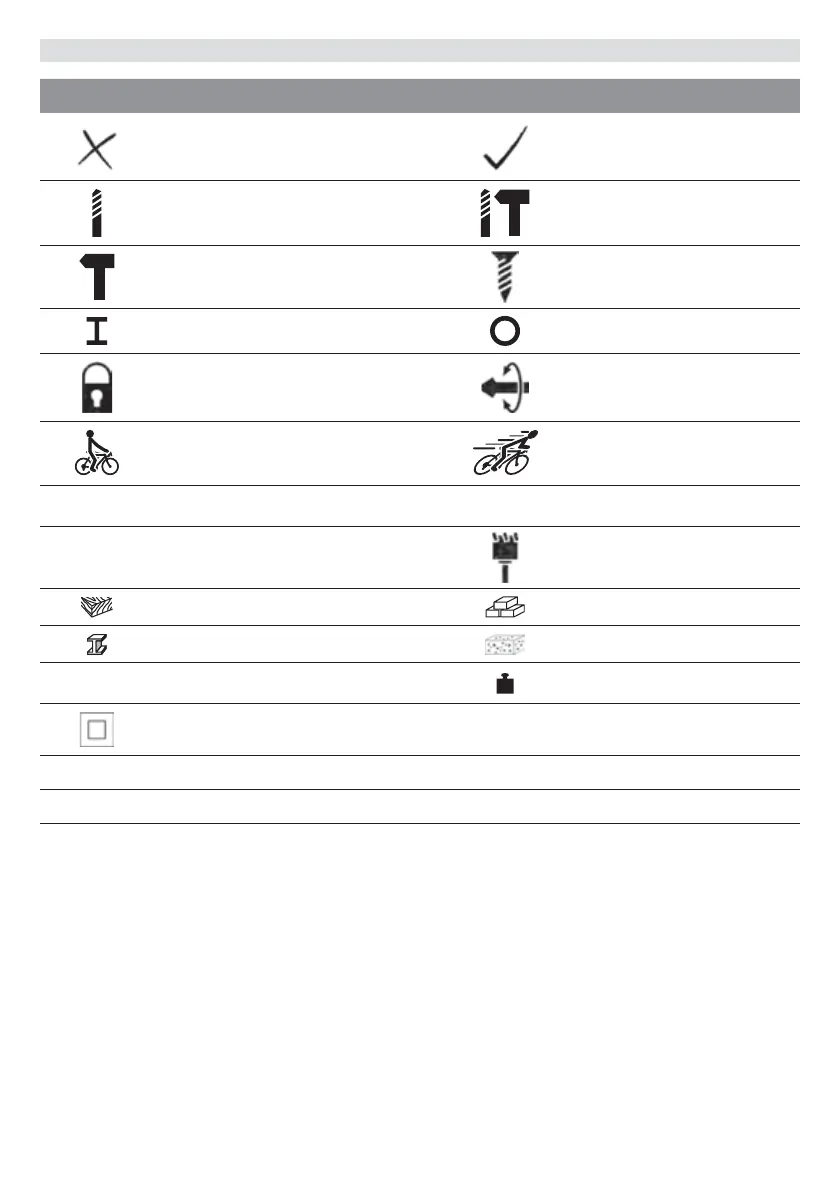

Symbol Meaning Symbol Meaning
Prohibited action Permitted action
Drilling without impact Hammer Drilling
Chiselling Screwdriving
Switching On Switching Off
On/Off switch lock-on Vario-Lock
Low speed/impact rate High speed/impact rate
E
Impact energy per stroke according
to EPTA-Procedure 05/2009
n
0
No-load speed
P
1
Rated power input Core bit
Wood Brickwork
Steel Concrete
Ø max.
Drilling diameter, max.
Weight according to
EPTA-Procedure 01/2003
Protection class
L
wA
Sound power level
L
pA
Sound pressure level
K
Uncertainty
a
h
Vibration total value
Delivery Scope
Rotary hammer, auxiliary handle and depth stop. Appli-
cation tools and other accessories shown or described
are not part of the standard delivery scope. A com-
plete overview of accessories can be found in our
accessories program.
Intended Use
The machine is intended for hammer drilling in
concrete, brick and stone, as well as for light chisel-
ling work. It is also suitable for drilling without impact
in wood, metal, ceramic and plastic. Machines with
electronic control and right/left rotation are also suitable
for screwdriving.
Technical Data
The technical data of the machine are listed in the
Table on page 68.
The values given are valid for a nominal voltage [U] of
230 V. For different voltages and models for specific
countries, these values can vary.
Please observe the article number on the type plate
of your machine. The trade names of the individual
machines may vary.
Noise/Vibration Information
The measured values of the machine are listed in the
table on page 68.
Noise and vibrational values (vector sum of three
directions) determined according to EN 60745.
