SPIT 352 - Instructions for Use - Handles and Selector; Auxiliary Handle Adjustment; Function Selector and Chisel Position

10

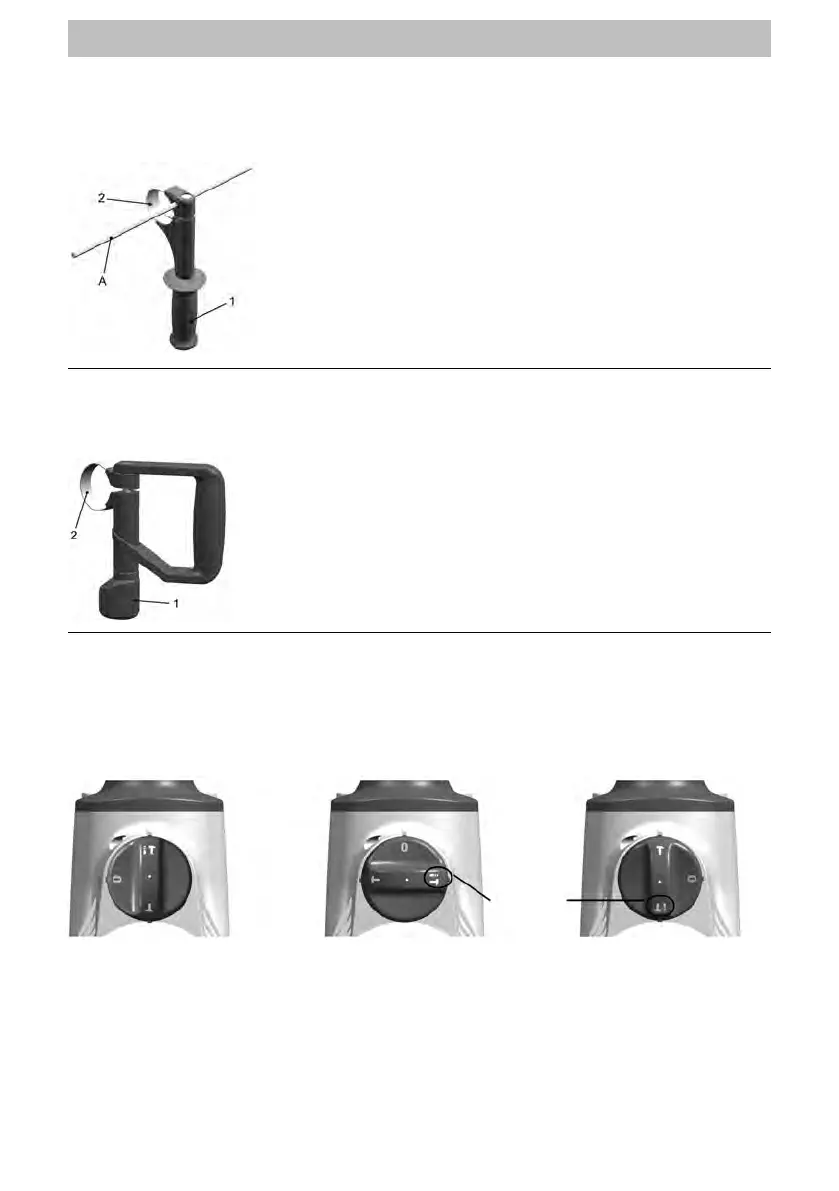

Instructions for use
Additional handle
with depth gauge
for SPIT 352
Additional handle
for SPIT 452
Function selec-
tor switch
The additional handle (I) is fully adjustable around 360°. By turning the
handle end (1), the clamping of the handle can be released.
After adjusting the required position clamp the handle carefully.
The depth adjustment (A) is both released and clamped by turning the
handle end (1).
The symmetrical construction of the adjustable handle (I) makes it
possible that the handle axis can also be fixed on the right side of the
tool axis (advantageous for left-handers).
The additional handle is fully adjustable around 360°.
By turning the knob (1), the clamping of the handle can be released.
After adjusting the required position clamp the handle carefully.
The symmetrical construction of the adjustable handle makes it pos-
sible that the handle axis can also be fixed on the right side of the tool
axis (advantageous for left-handers).
You can change between 'rotary percussion drilling' and 'per-
cussion drilling without rotary' = 'chiselling' by means of the
function selector switch (H).
Adjustment of
Hammer drilling chisel position Chiselling
Symbol
not for
SPIT 452
Rotary percussion drilling
(only SPIT 352)
For any drilling work.
Multi position
(SPIT 352 and SPIT 452)
The chisel can be placed
into 16 different positions by
turning 22,5° each time. This
adjusting enables a more
comfortable and efficient
working position.
Percussion drilling
without rotary
(SPIT 352 and SPIT 452)
For all cutting and chisel-
ling operations.
