COMPONENT REPLACEMENT (cont’d)
CONTROLLER REPLACEMENT
1. Turn the on/off switch “OFF” and unplug the power cord.
2. Remove four screws holding controller faceplate into main casting. Note the position
of the main power and motor wires on the controller, then disconnect the wires. See
Figure 12 on page 12 for the three motor wires. See Figure 13 on page 12 for the main
power cord wires.
Reassemble in reverse order.
Be sure wires are correctly reinstalled. Motor wire connectors are different sizes.
Be sure they are installed on the correct size terminal. See Figure 12 for the motor
wires and Figure 13 for the power cord wire.
Component Replacement

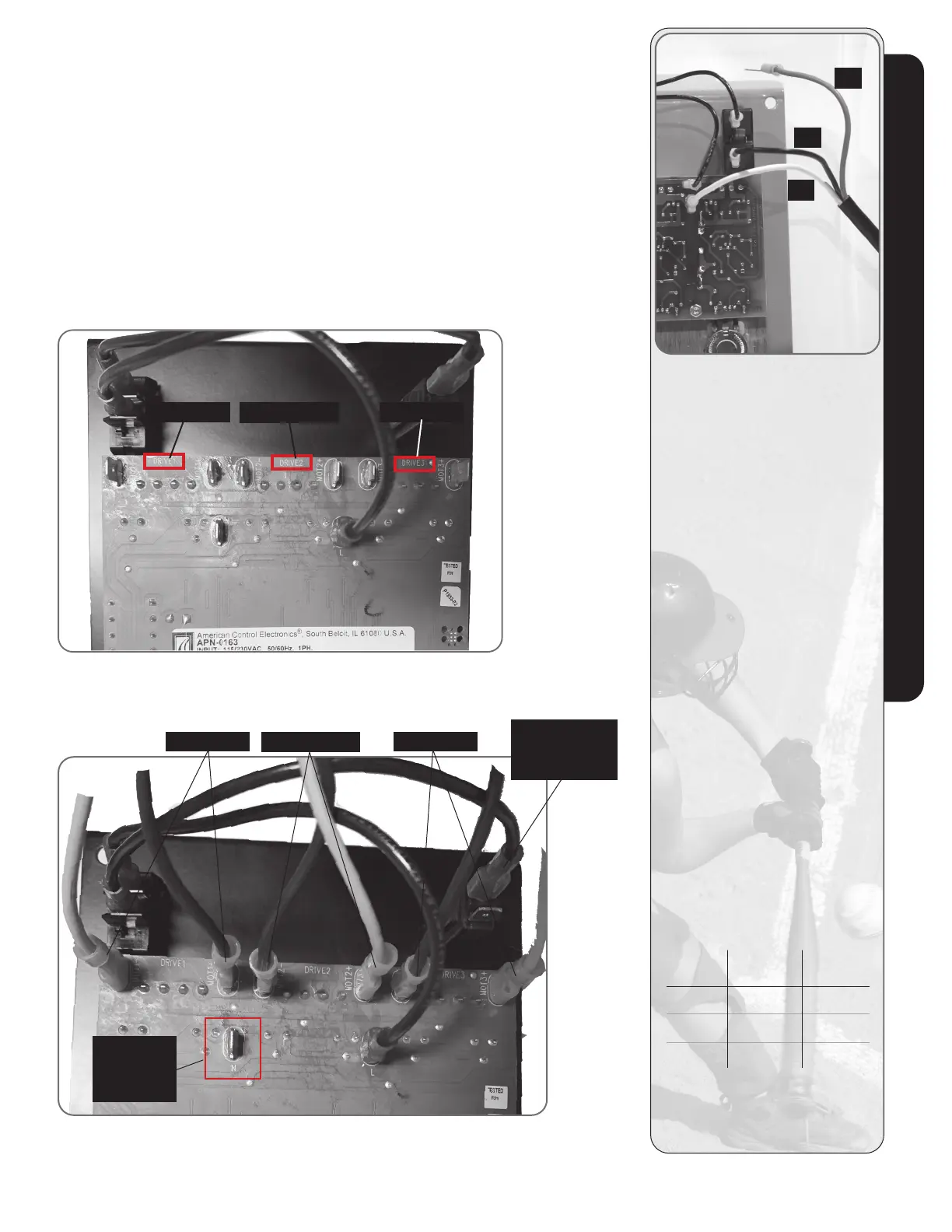

Figure 11 Wiring diagram from the control board side.
Figure 12 Wiring diagram for all three motors.
#3
#1
#2
Figure 13
CONNECTING WIRES
Motor Black White
Wire Wire
Right A- A+
Left A+ A-
Bottom A- A+
Black motor wires are
3
/
16
” female
disconnect and white wires are
1
/
4
” female disconnect.
WIRING
POWER CORD
White or Blue Wire (2)
To middle male terminal marked
“N.”
Black or Brown Wire (1)
To circuit breaker.
Green Wire (3)
Groundstomachine/motor.
MOTOR WIRE LEADS
Black 3/16” wide connectors.
White 1/4” wide connectors.
Black Wire (2) connects to A-
on circuit board.
White Wire (2) connects to A+ on
circuit board.
CONTROLLER
Black Wire (2) 2 PR jumper wire:
- 1 from on/off switch to
circuit breaker
- 1 from on/off switch to
circuit board terminal “L”.
Right Motor
Circuit Breaker -
Black wire from
power cord
Bottom Motor
Left Motor
Left Motor
Bottom Motor
Right Motor
White wire
from power
cord
