Sports Attack JUNIOR HACK ATTACK SOFTBALL - Exploded View

JUNIOR HACK ATTACK
™
SOFTBALL PITCHING MACHINE
SPORTS ATTACK, LLC. • 800.717.4251 • sportsattack.com
14
EXPLODED VIEW
12
13
19
17
16 18
20
21
10
11
22
3
14
15
6
8
5
4
9
7

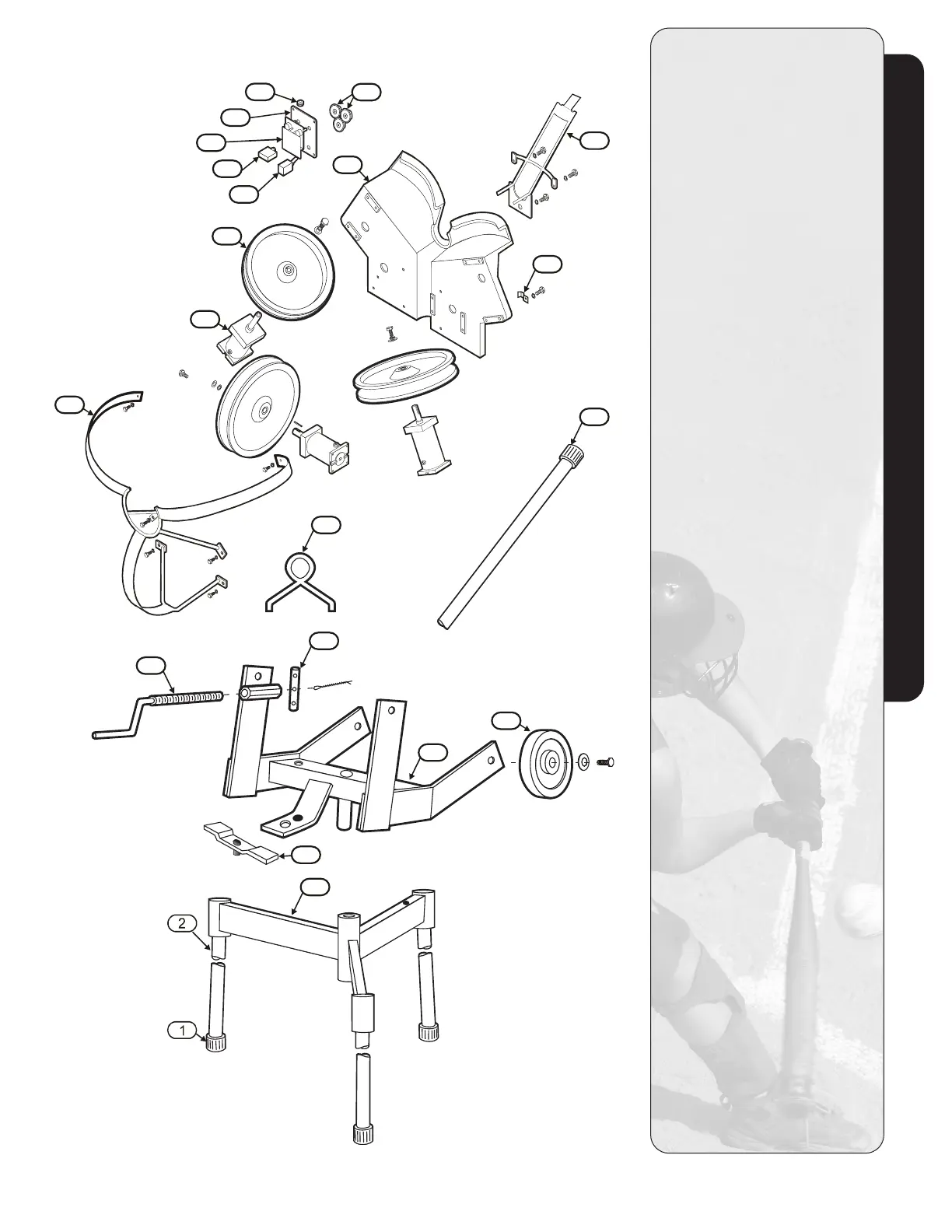

Exploded View - Junior Hack Attack
1 Cane Tip
2 Softball Leg
3 Undercarriage Assembly
4 Swivel Handle
5 Travel Wheel
6 Yoke Assembly
7 Frame Pin
8 Elevation Tension Spring
9 Elevation Screw
10 Throwing Head Casting
11 Cable Clamp
12 Motor, Variable Speed
(with Key, Bolt & Washer)
13 Throwing Wheel
14 Softball Chute Assembly
15 WheelGuardAssembly
16 Grommet,Wiring
17 Control Panel Plate
18 Speed Control Knob
19 Controller Assembly
20 Circuit Breaker
Round Square
21 On/Off Switch
Toggle Rocker
22 Softball Transport Leg
23 Power Cord (not shown)
