JUNIOR HACK ATTACK
™
SOFTBALL PITCHING MACHINE
SPORTS ATTACK, LLC. • 800-717-4251 • sportsattack.com
13

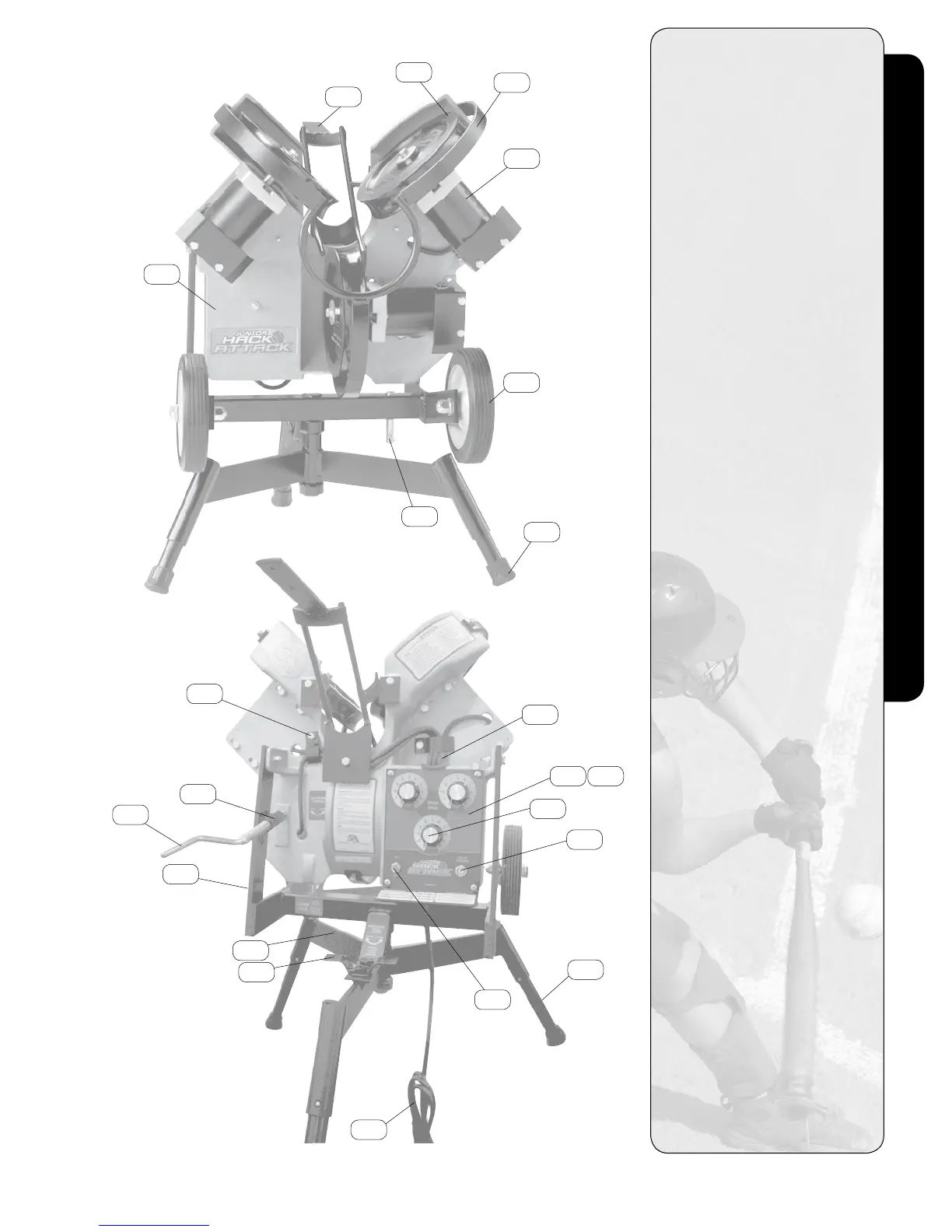

COMPONENT VIEW
Component View - Junior Hack Attack
1 Cane Tip
2 Softball Leg
3 Undercarriage Assembly
4 Swivel Handle
5 Travel Wheel
6 Yoke Assembly
7 Frame Pin
8 Elevation Tension Spring
9 Elevation Screw
10 Throwing Head Casting
11 Wire Clamp
12 Motor, Variable Speed
(with Key, Bolt & Washer)
13 Throwing Wheel
14 Softball Chute Assembly
15 Wheel Guard Assembly
16 Grommet, Wiring
17 Control Panel Plate
18 Speed Control Knob
19 Controller
20 Circuit Breaker
21 On/Off Switch
22 Power Cord
13
14
12
5
7
15
10
16
19
18
20
21
2
17
22
11
8
9
6
4
3
1
