JUNIOR HACK ATTACK
™
SOFTBALL PITCHING MACHINE
SPORTS ATTACK, LLC. • 800-717-4251 • sportsattack.com
14

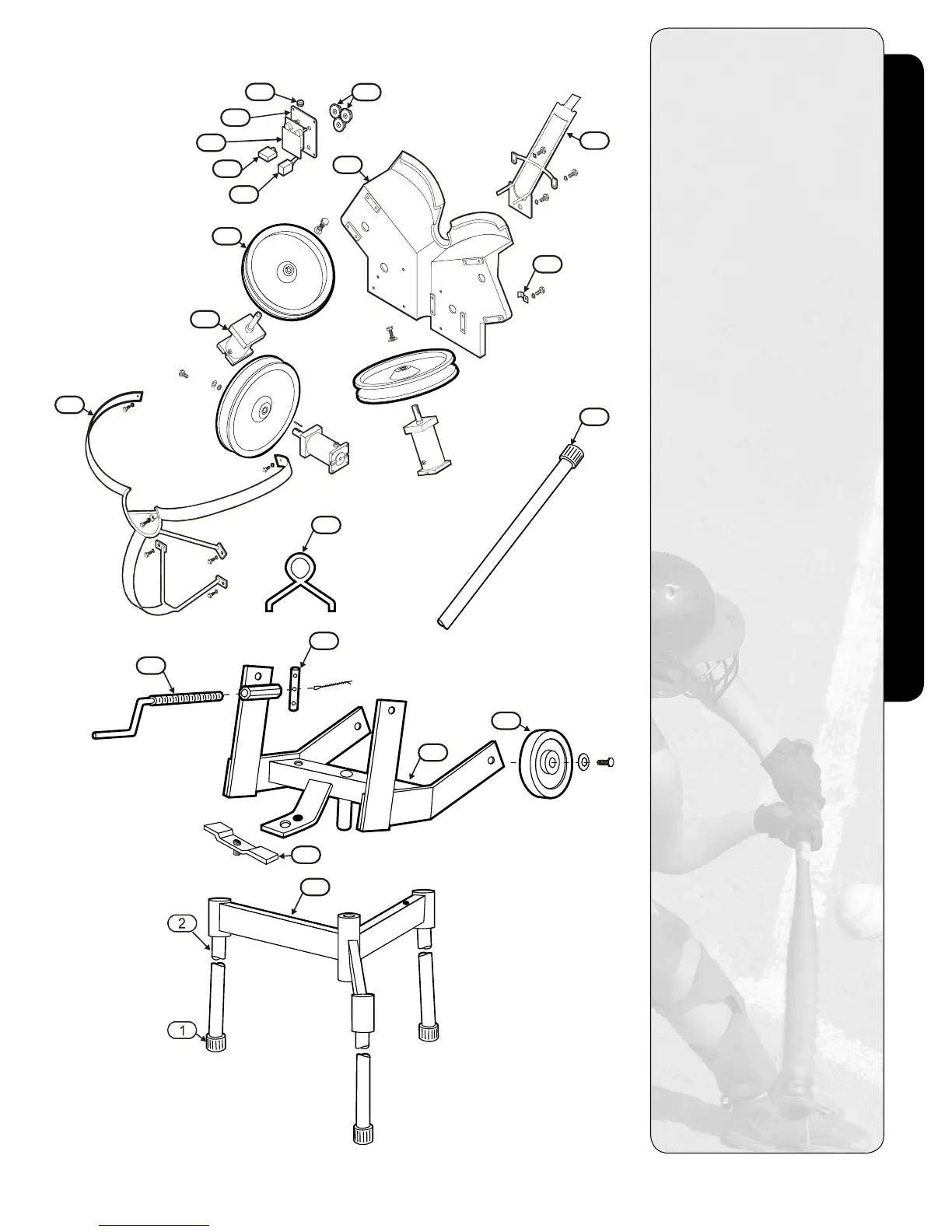

EXPLODED VIEW
12
13
19
17
16 18
20
21
10
11
22
3
14
15
6
8
5
4
9
7
Exploded View - Junior Hack Attack
1 Cane Tip
2 Softball Leg
3 Undercarriage Assembly
4 Swivel Handle
5 Travel Wheel
6 Yoke Assembly
7 Frame Pin
8 Elevation Tension Spring
9 Elevation Screw
10 Throwing Head Casting
11 Cable Clamp
12 Motor, Variable Speed
(with Key, Bolt & Washer)
13 Throwing Wheel
14 Softball Chute Assembly
15 Wheel Guard Assembly
16 Grommet, Wiring
17 Control Panel Plate
18 Speed Control Knob
19 Controller Assembly
20 Circuit Breaker
Round
Square
21 On/Off Switch
Toggle
Rocker
22 Softball Transport Leg
23 Power Cord (not shown)
