JUNIOR H ACK ATTACK
™
BASEBALL PITCHING MACHINE
SPORTS ATTACK, LLC. • 800-717-4251 • sportsattack.com
13

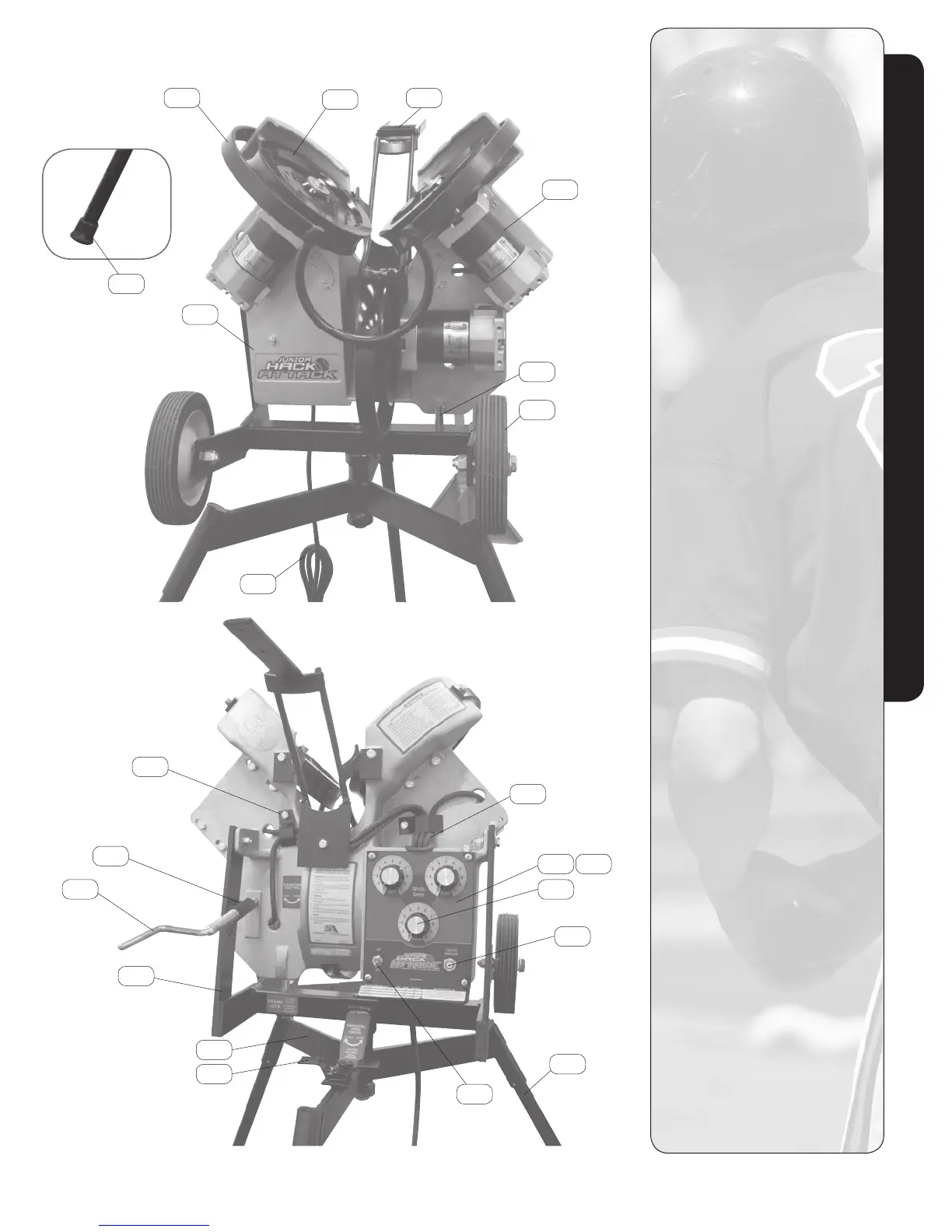

COMPONENT VIEW
Component View
1 Cane Tip
2 Baseball Leg
3 Undercarriage Assembly
4 Swivel Handle
5 Travel Wheel
6 Yoke Assembly
7 Frame Pin
8 Elevation Tension Spring
9 Elevation Screw
10 Throwing Head Casting
11 Wire Clamp
12 Motor, Variable Speed
(with Key, Bolt & Washer)
13 Throwing Wheel
14 Baseball Chute Assembly
15 Wheel Guard Assembly
16 Gromet, Wiring
17 Control Panel Plate
18 Speed Control Knob
19 Controller
20 Circuit Breaker
21 On/Off Switch
22 Power Cord
