Sports Attsck Junior Hack Attack - Exploded View

JUNIOR H ACK ATTACK
™
BASEBALL PITCHING MACHINE
SPORTS ATTACK, LLC. • 800-717-4251 • sportsattack.com
14

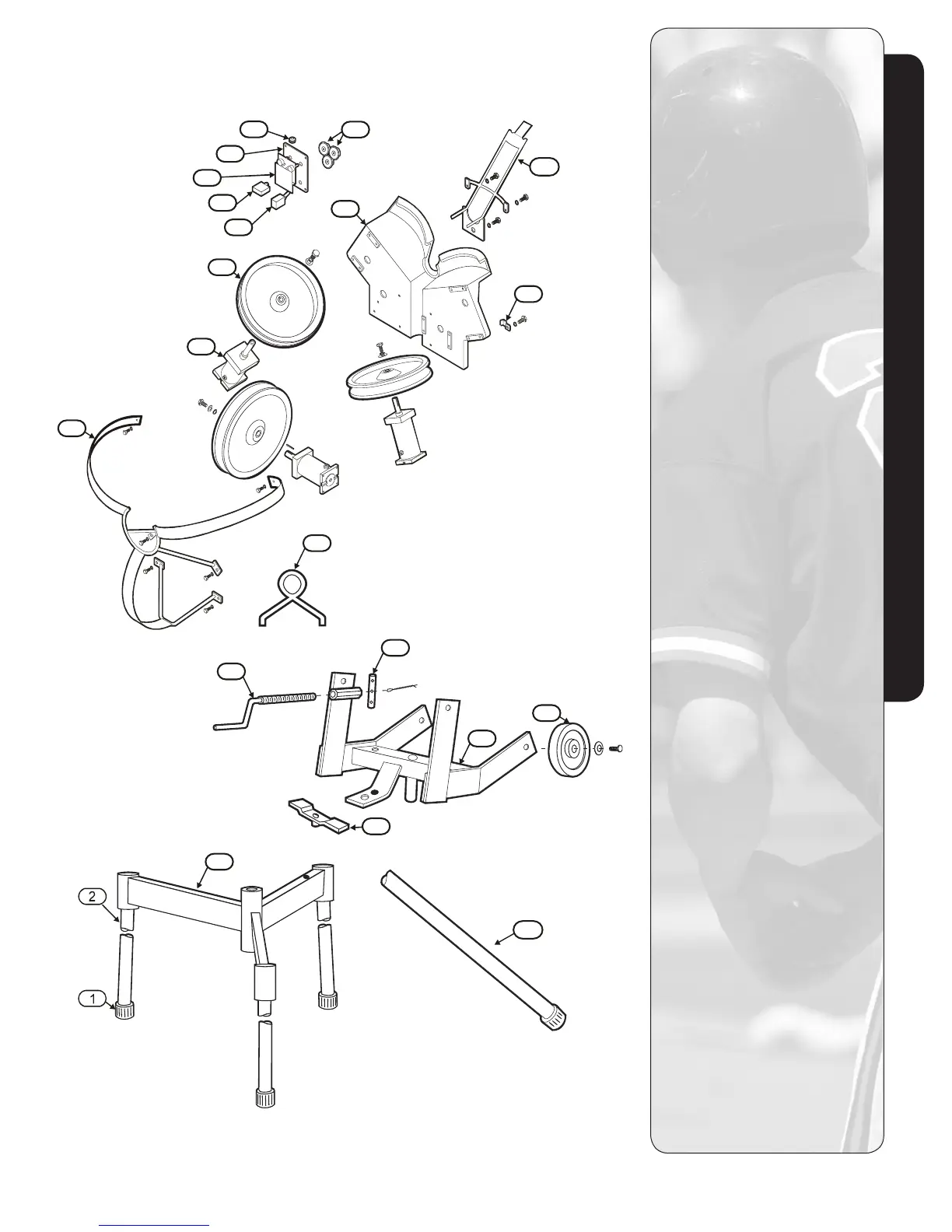

EXPLODED VIEW
12
13
19
17
16 18
20
21
10
11
3
15
6
8
5
4
9
7
14
2A
Exploded View
1 Cane Tip
2 Baseball Leg (36”)
2A Extended Leg (46”)
3 Undercarriage Assembly
4 Swivel Handle
5 Travel Wheel
6 Yoke Assembly
7 Frame Pin
8 Elevation Tension Spring
9 Elevation Handle
10 Throwing Head Casting
11 Cable Clamp
12 Motor, Variable Speed
(with Key, Bolt & Washer)
13 Throwing Wheel
14 Baseball Chute Assembly
15 Wheel Guard Assembly
16 Grommet, Wiring
17 Control Panel Plate
18 Speed Control Knob
19 Controller
20 Circuit Breaker
Round
Square
21 On/Off Switch
Toggle
Rocker
22
Power Cord
(not shown)
