JUNIOR H ACK ATTACK
™
BASEBALL PITCHING MACHINE
SPORTS ATTACK, LLC. • 800-717-4251 • sportsattack.com
16
CONVERSION
BASEBALL TO SOFTBALL CONVERSION KIT (KIT NO. 102-3001)
1. Turn the on/off switch “OFF” and unplug the power cord.
2. Remove (3) bolts holding baseball feed chute.
3. Remove (4) bolts holding bottom motor to main casting (See Photo G).
4. Reposition motor from bolt holes marked 9” to bolt holes marked 12”
(See Photos G and H).
5. Install (4) bolts to secure motor to main casting (See Photo G and H).
6. Repeat steps 3 thru 5 for both the left and right motors.
Softball Conversion kit includes (See Photo E):
(1) 532-0006 Softball Transport Handle
(3) 532-0005 Softball Leg
(1) 520-0019 Softball Feed Chute
(1) Dial Settings and MPH Softball Label
7. Install softball feed chute (Reuse the three bolts that held the baseball chute to
secure softball chute to casting).
8. Install new Dial Settings and MPH label over the existing label.
9. Remove (3) baseball legs.
10. Install (3) softball legs.
BASEBALL TO 7.5 BALL CONVERSION KIT (KIT NO. 102-3002)
1. Turn the on/off switch “OFF” and unplug the power cord.
2. Remove (3) bolts holding baseball feed chute. Install 7.5 chute (Item 533-1200.
See Photo F).
3. Loosen (4) bolts (do not remove) on two top motors. Do not touch bottom motor.
4. Slide the two top wheels closer together to 7.5 setting (See Photo I).
5. Tighten bolts to two top motors.
Conversion kit includes one chute (See Photo F).
Conversion
112-1100
3 Legs
532-0006
1 Softball
Transport
Handle
520-0019
1 Softball
Ball Chute
9”
12”

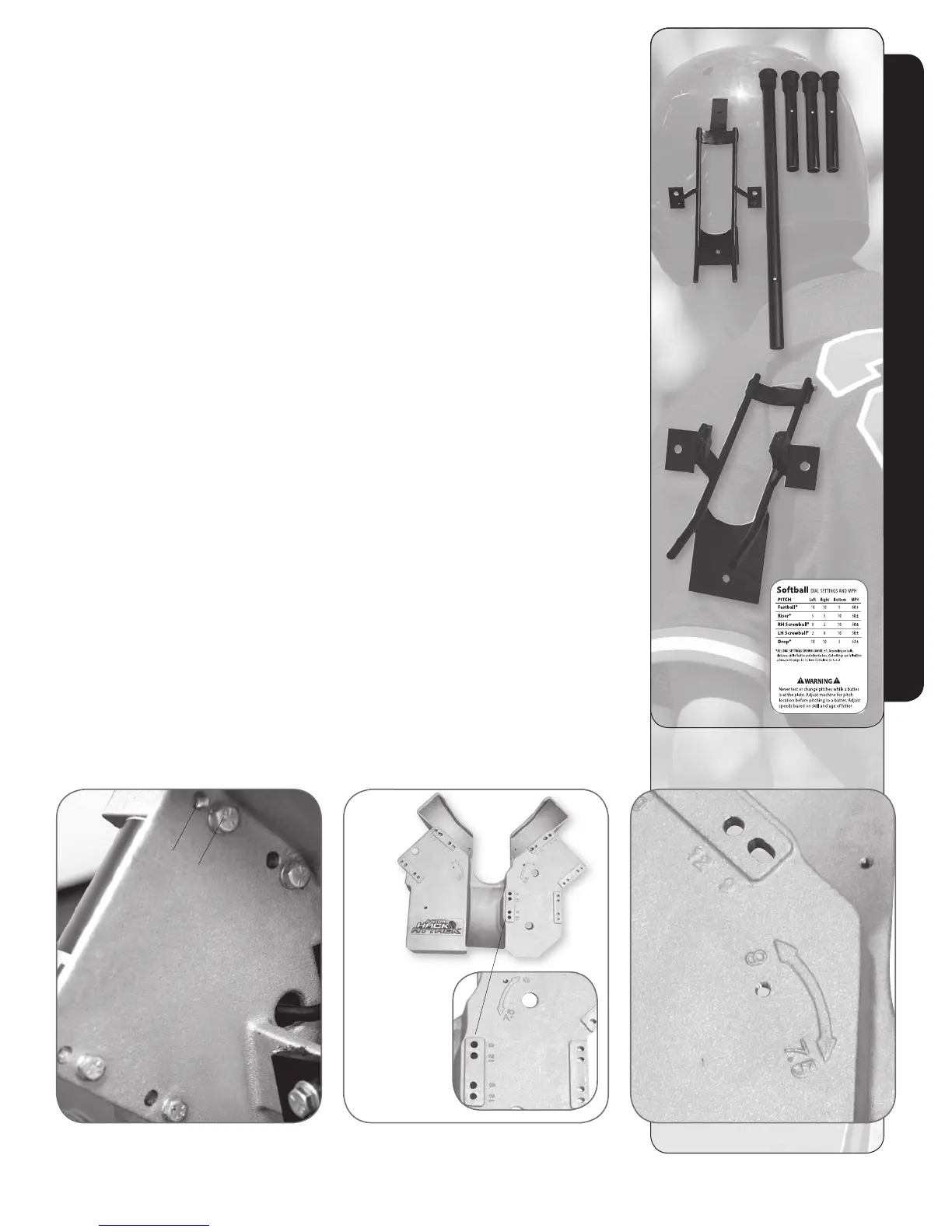

Photo G Bolts on Main Casting Photo H Main Casting and bolt holes Photo I 7.5 Setting
Photo E Softball Conversion Kit
Photo F
533-1200
7.5 Ball Chute
1 Softball
Label
