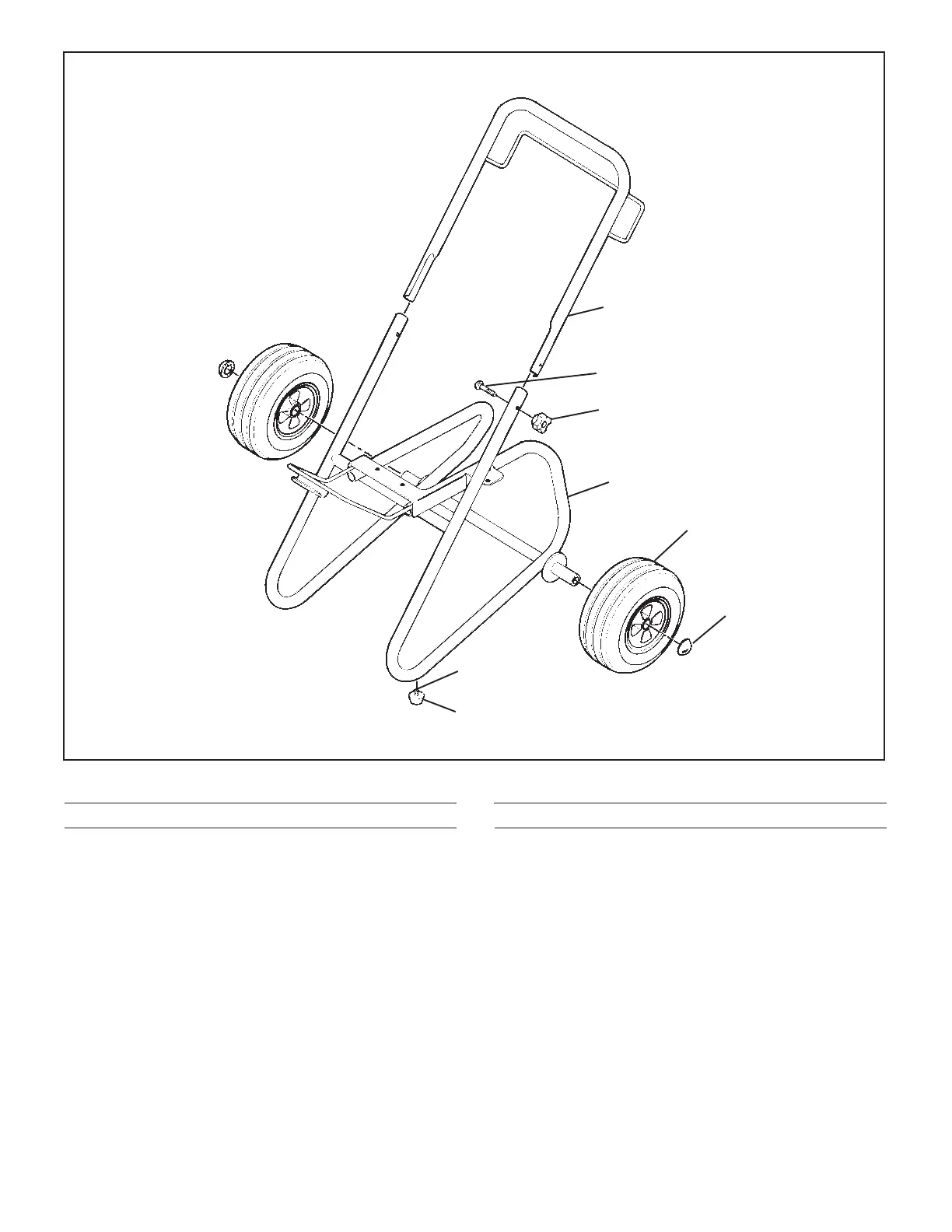

Figure 18 - Cart Assembly
CART ASSEMBLY - FIGURE 18
ITEM PART NO. DESCRIPTION QTY.
ITEM PART NO. DESCRIPTION QTY.
6 9890104 Cap, Axle 2
7 54458 Screw 2
8 13538 Bumper 2
0294534 Spacer, Wheel (NOT SHOWN) 4
7
8
6
5
4
3
2
1
1 0279324 Handle 1
2 9802518 Bolt 2
3 0288661 Knob 2
4 0294558 Frame, Cart 1
5 0270318 Wheel
