SprayTECH EP2205 - Page 24

22

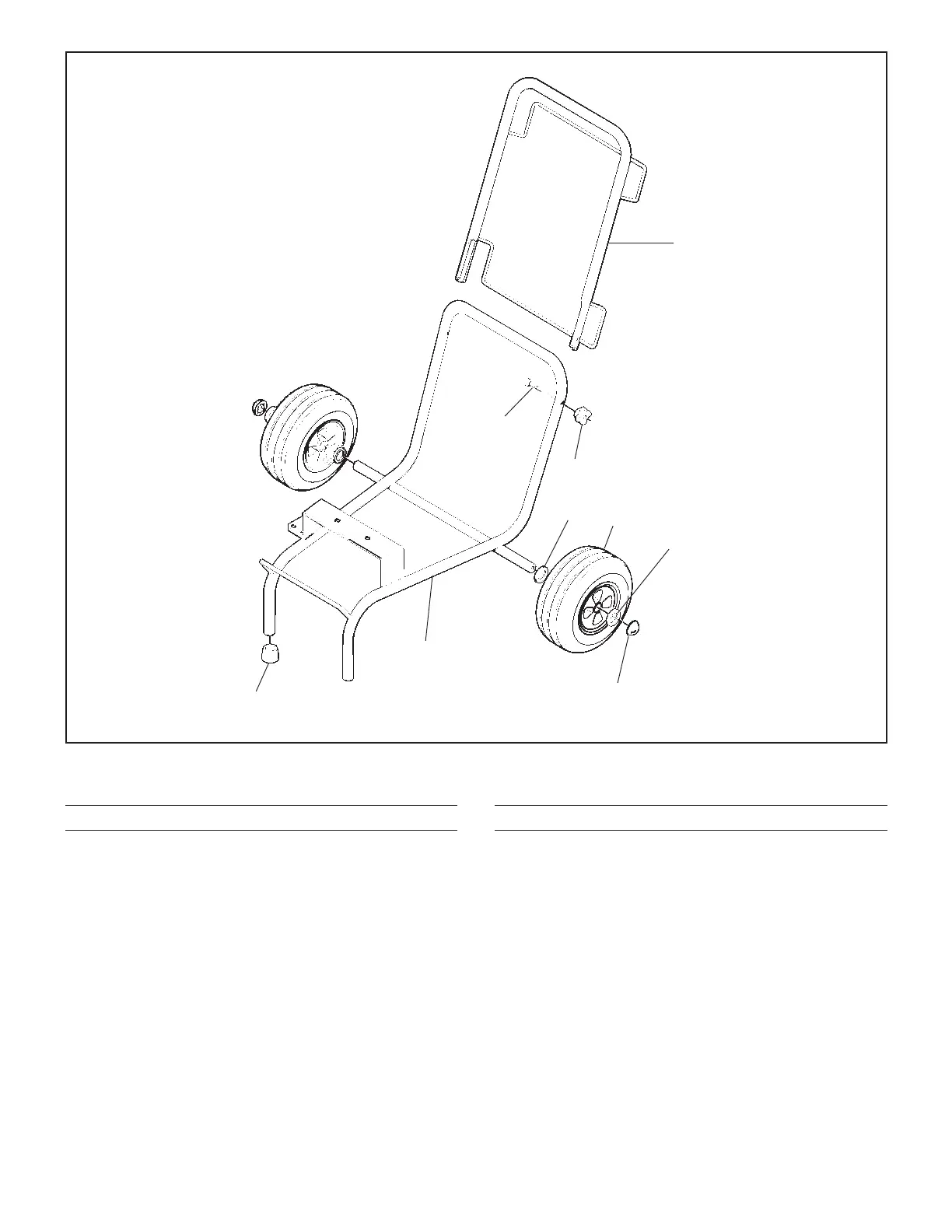

LOWBOY CART ASSEMBLY - FIGURE 19
ITEM PART NO. DESCRIPTION QTY. ITEM PART NO. DESCRIPTION QTY.
Figure 19- LowBoy Cart Assembly
1
1 0294445 Handle, Cart 1
2 9802518 Bolt, Carriage 2
3 0288661 Knob, Handle 2
4 0294534 Spacer, Wheel 4
5 0270318 Wheel 2
6 9890104 Cap, Hub 2
7 0294579 Cart 1
8 0270343 Foot, Rubber 2
2
3
4
5
4
6
7
8
