PRESSURE CONTROL ASSEMBLY - FIGURE 20
Item Part No. Description Qty.
Item Part No. Description Qty.

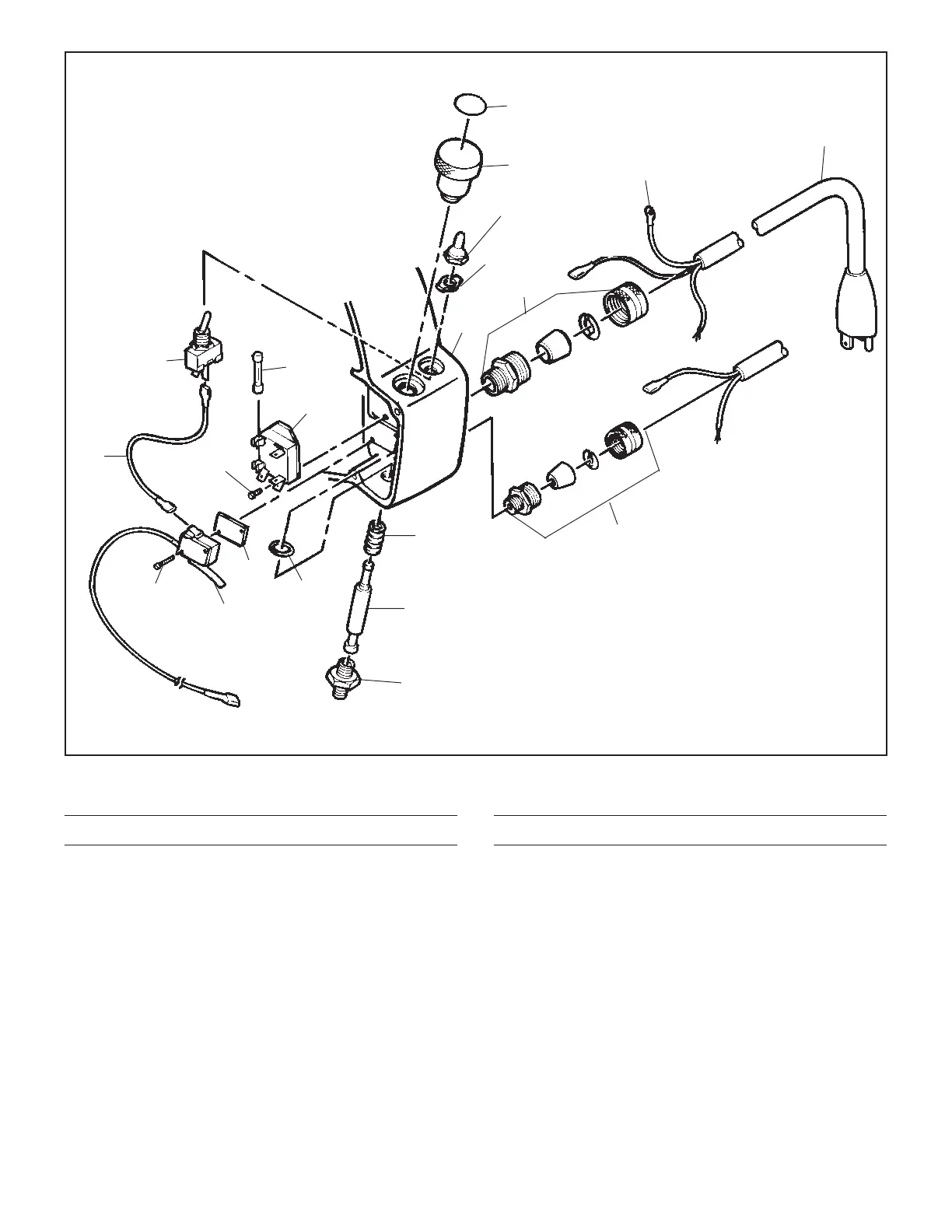

Figure 20 - Pressure Control Assembly
1
2
8
5
12
11
13
10
20
19
16
17
18
21
14
15
7
1 0294837 Pressure Increase Label 1
2 0295426 Knob 1
3 02585 Toggle Boot 1
4 0089986 On/Off plate 1
5 0294349 Housing 1
6 0275703 Strain relief 1
9850630 Strain relief (CSA)
7 52671 Ring terminal 1
8 0294428 Cord set 1
02491 Cord Set (CSA) 1
9 9850629 Strain relief 1
10 02712 Spring 1
11 0294359 Plunger 1
3
6
4
9
12 02208 Transducer assy. 1
(See Figure 23)
13 9822522 Retainer ring 1
14 03662 Switch spacer 1
15 0294132 Pressure Switch Assembly 1
16 9800604 Screw 2
17 9851311 Lead wire 1
18 53280 On/Off switch 1
19 53732 Fuse (10 amp) 1
20 18066 Relay (25 amp) 1
21 50520 Screw 3
