0294220 DUMP VALVE ASSEMBLY - FIGURE 26
ITEM PART NO. DESCRIPTION QTY. ITEM PART NO. DESCRIPTION QTY.
1 0294194 Filter Body Assembly 1
2 14069 Filter Sieve (50 Mesh) 1
14068 Filter Sieve (100 Mesh)
(OPTIONAL)
3 9894245 Support, Filter 1
4 14072 O-Ring 1

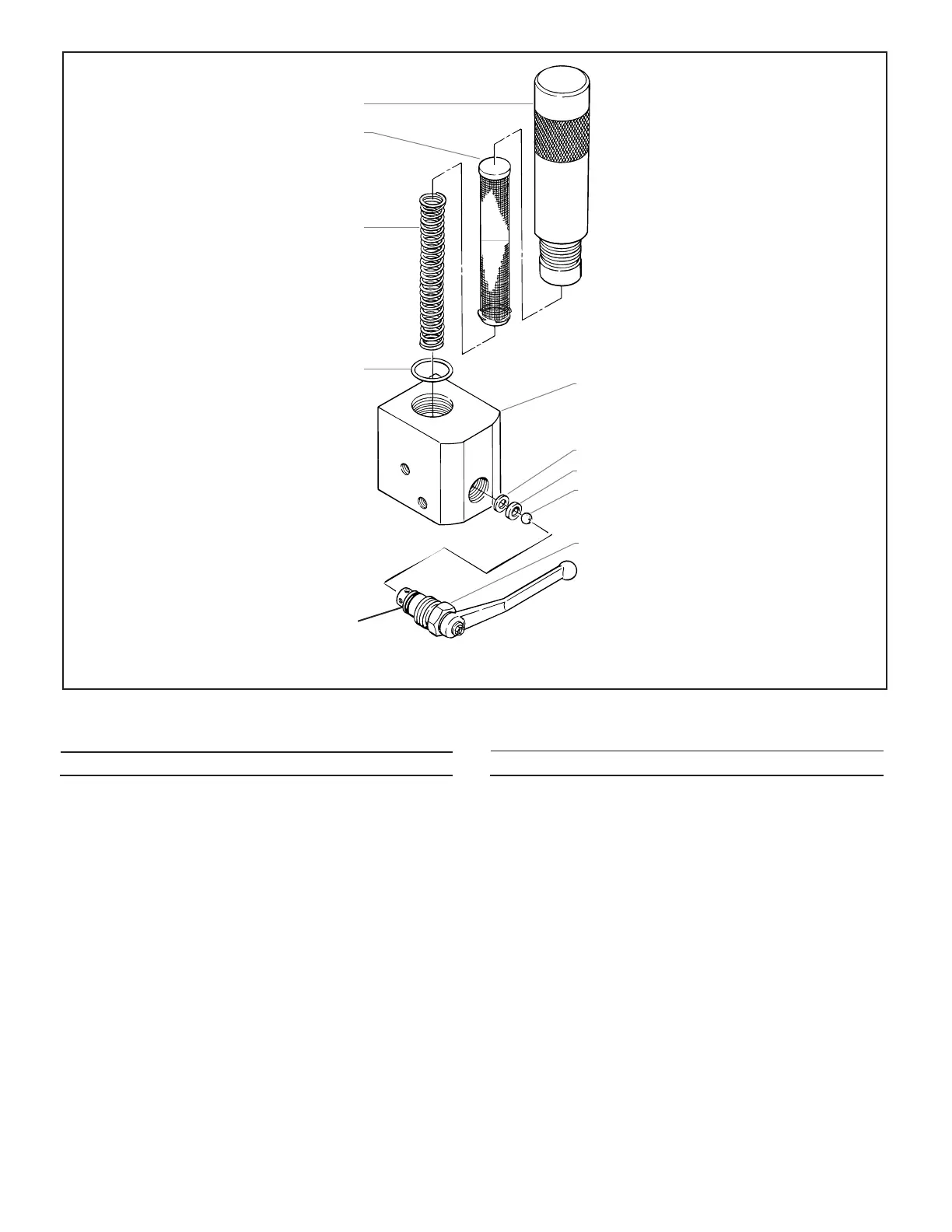

Figure 26 - Dump Valve Assembly
5 0294555 Head, Filter/Dump Valve 1
6 0294499 Seal, Dump Valve 1
7 0294516 Seat, Valve 1
8 9841502 Ball, 10mm 1
9 0294214 Dump Valve Cartridge 1
NOTES:
∆
1
∆ Torque to 35 Ft./Lbs. CAUTION: Be sure the handle is turned all the way counterclockwise
2
Apply antisieze (P/N 0093930) to threads when reassembled.
∆
1
∆
2
when reassembled. Valve seat (item 6) will be
damaged if it is not.
