SprayTECH EP2205 - Page 29

27

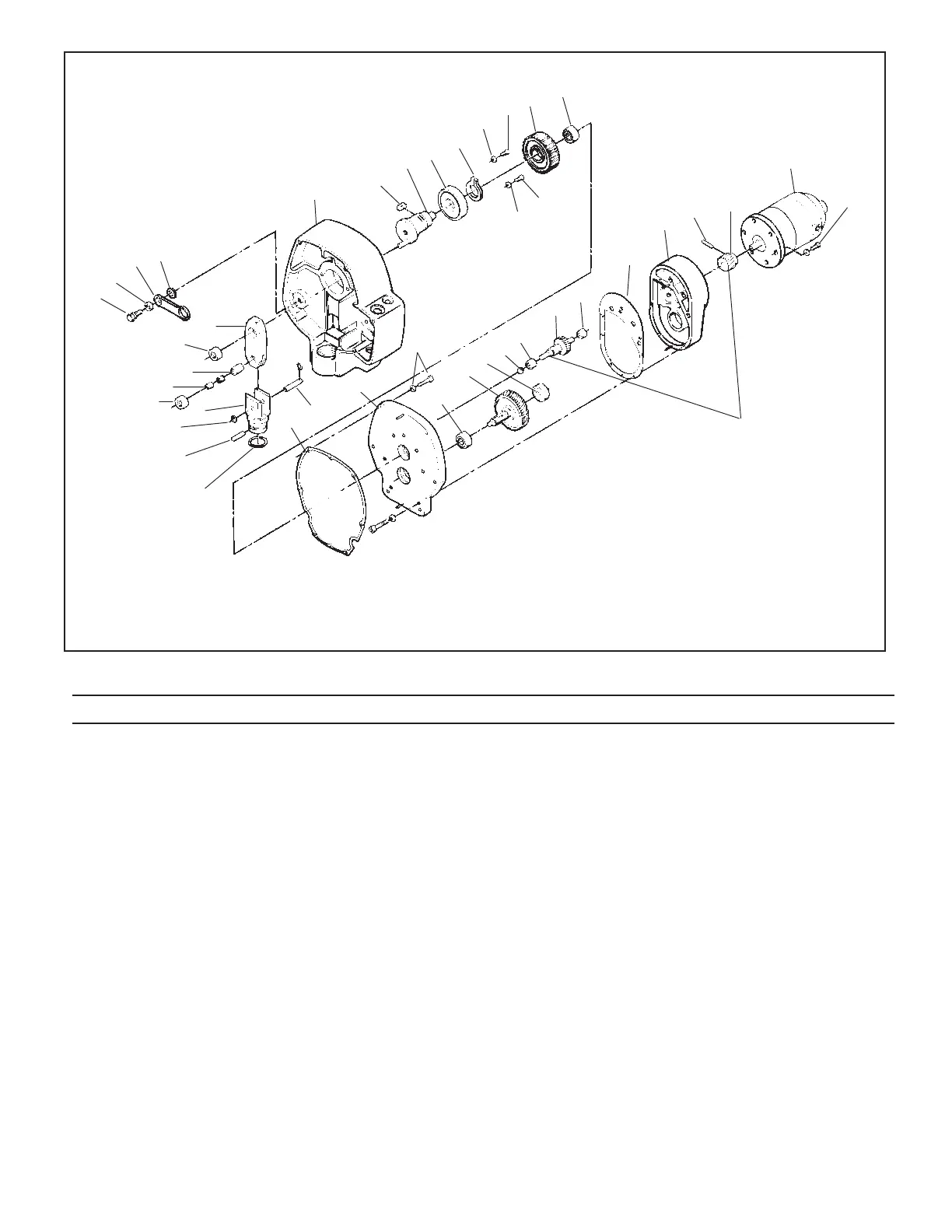

EP2300 Drive Assembly - Figure 25
3
1
2
4
5
7
8
9
6
7
10
6
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
ITEM PART NO. DESCRIPTION QTY.
ITEM PART NO. DESCRIPTION QTY.
1 0294349 Housing 1
2 05304 Key 1
3 11177 Crankshaft 1
4 51837 Bearing 1
5 51845 Ring, Retainer 1
6 11843 Washer 2
7 53074 Screw 2
8 05282 Gear 1
9 50547 Bearing 1
10 0294154 Motor with Pinion 1
11 50318 Screw 13
50113 Washer 13
12 05208 Gear Set 1
13 05207 Pinion 1
14 50717 Spring Pin 1
15 19015 Gear Case 1
16 17183 Gasket 1
17 50989 Bearing 1
18 05223 High Speed Cluster 1
19 50997 Bearing 1
20 50008 Ball, Stainless 1
21 50962 Bearing 1
22 05274 Low Speed Cluster 1
23 50954 Bearing 1
24 53074 Screw 6
Washer, Lock 6
25 0294402 Plate, Adapter 1
26 0294365 Pin, Yoke 1
27 0294394 Gasket 1
28 0294301 Retainer. Spring 1
29 0294302 Pin, Connecting 1
30 51187 Ring, Retainer 2
31 0294606 Yoke 1
32 0294366 Bearing 1
33 0294367 Bearing 2
34 0294364 Bushing 1
35 50555 Bearing 1
36 0294604 Rod, Connecting 1
37 0294410 Bolt, Shoulder 1
38 0294368 Bearing 1
39 0294602 Drag Line 1
40 0294446 Washer 1
EP2300 DRIVE ASSEMBLY - FIGURE 25
