EP2300 MOTOR ASSEMBLY - FIGURE 24
ITEM PART NO. DESCRIPTION QTY.
1 01678 Brush Holder 2
2 01694 Motor Brush 2
3 01686 Brush Cap 2
4 01783 Stud 2
5 19498 Stator Assy. 1
6 50148 #10 Lockwasher 4
7 50865 10-32 Nut 4
8 01791 Belleville Washer 4
9 50962 Bearing-Commutator End 2
10 *01961 Armature w/Bearings 1
* Includes #50962 Bearing
7
6
10
9
9
4
5
6
7
8
6
7
1
2
3

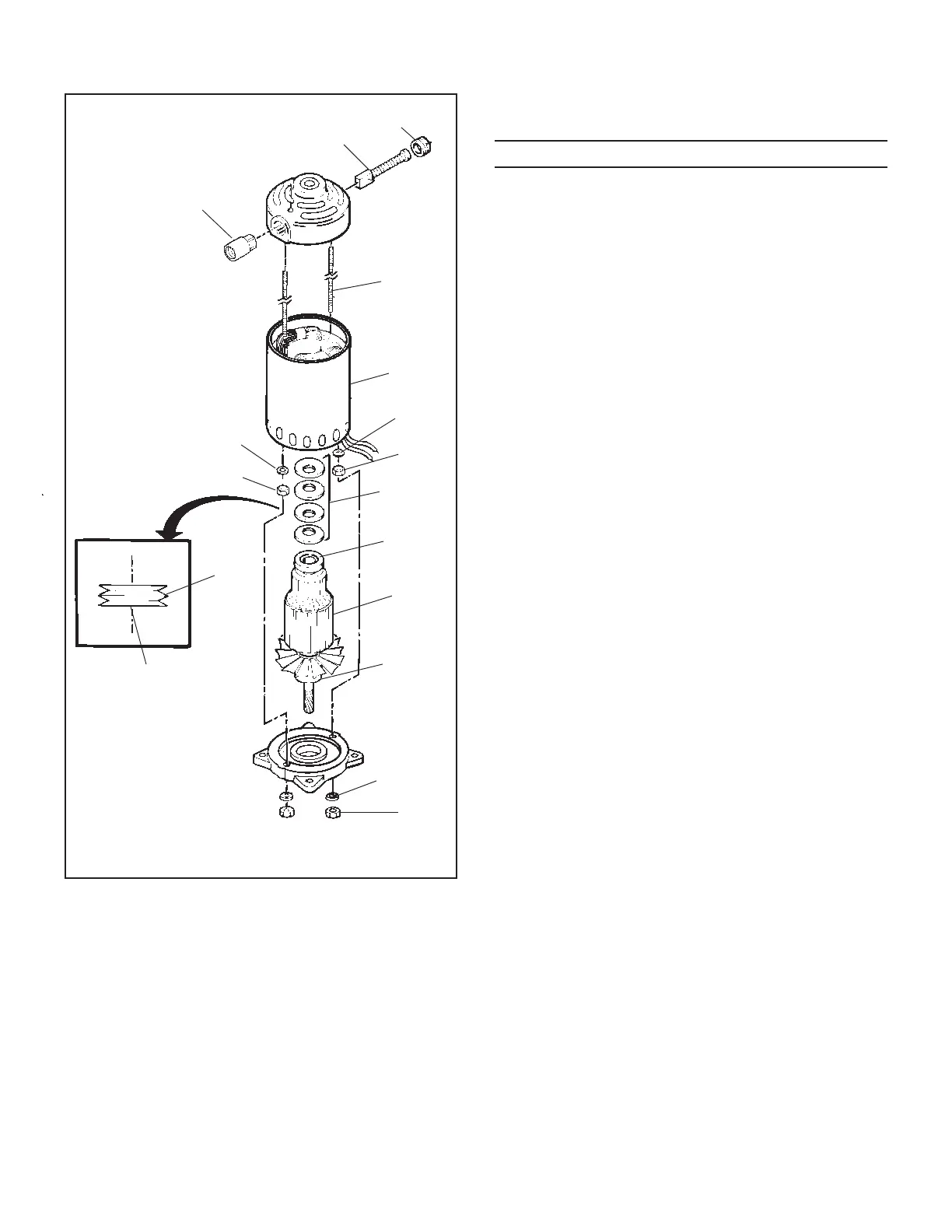

EP2300 Motor Assembly - Figure 24
NOTE: Washers
must be stacked
as shown.
8
