SPRSUN CGY015V3 - Internal Structure of Unit

4

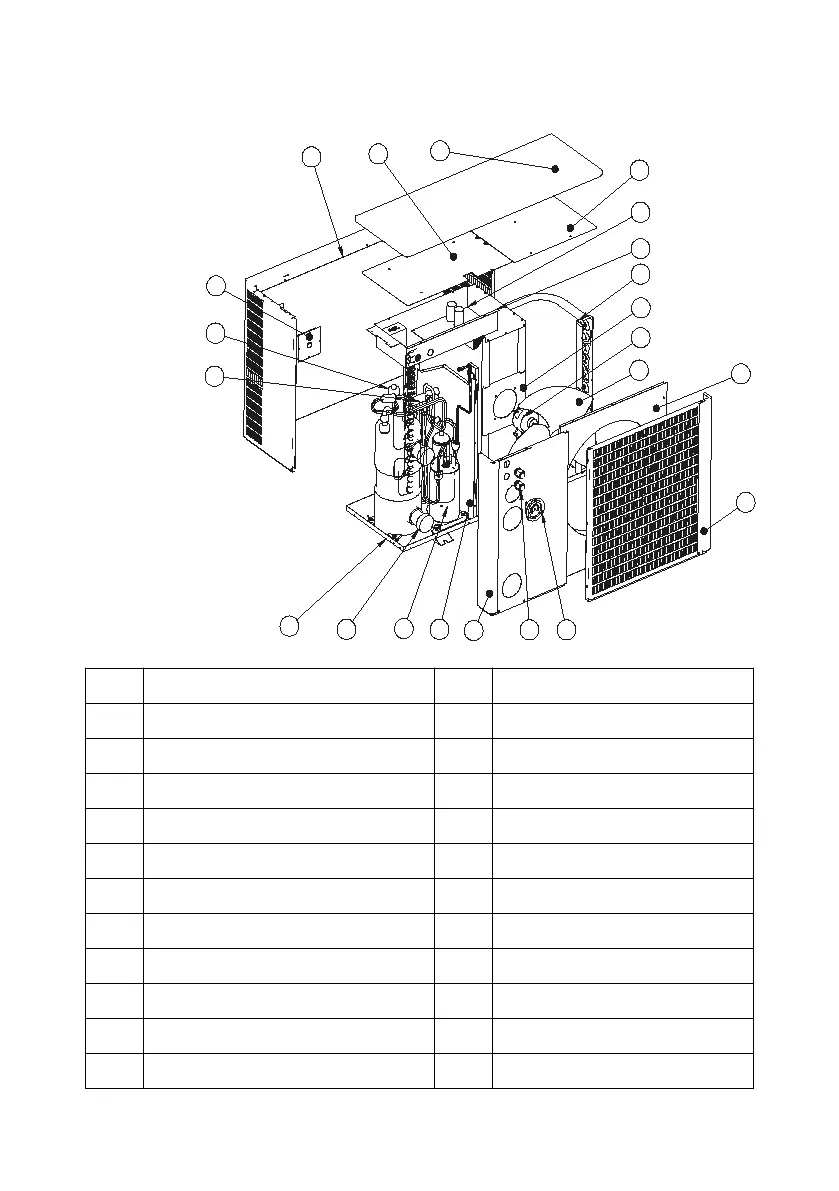

2. Internal structure of unit
1
2
3
4
5
8
6 7
9
10
11
12
13
15
16
17
18
19
20
21
22
14
No.
Component
No.
Component
1
Chassis
12
Fan support
2
Titanium tube heat exchanger
13
Finned evaporator
3
DC compressor
14
Electrical box
4
Middle diaphragm
15
Frequency converter
5
Rear service panel
16
Evaporator cover plate
6
Power inlet hole
17
Cover
7
Pressure gauge
18
Cover plate of electrical box
8
Air outlet network
19
front panel
9
Air outlet frame
20
control panel
10
Wind leaf
21
Electronic expansion valve
11
DC motor
22
Four way valve
