42 | INSTALLATION, OPERATION and MAINTENANCE MANUAL
better face on the inside (unless there are features that mandate a specific orientation
such as follower guides, labels, etc.).

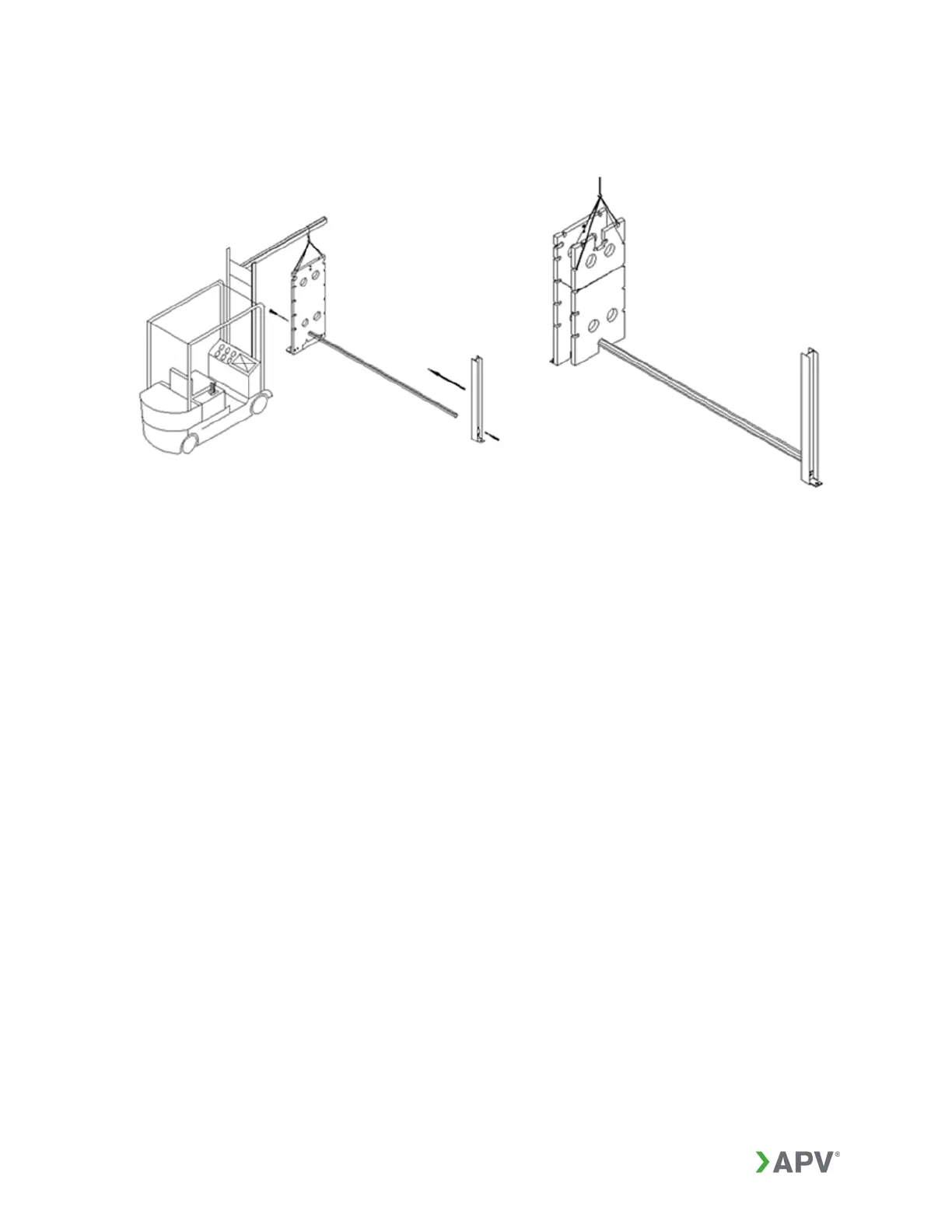

Figure 35: Erect and secure head Figure 36: Position follower
Position the top carrying bar between the head and end support and using the bolts
provided, fasten it securely (Figure 37).
Lift the follower into place and install the roller and axle assemblies if not already
installed (Figure 38). Roll the follower back to the end support to allow plate installation.
