INSTALLATION, OPERATION and MAINTENANCE MANUAL | 73

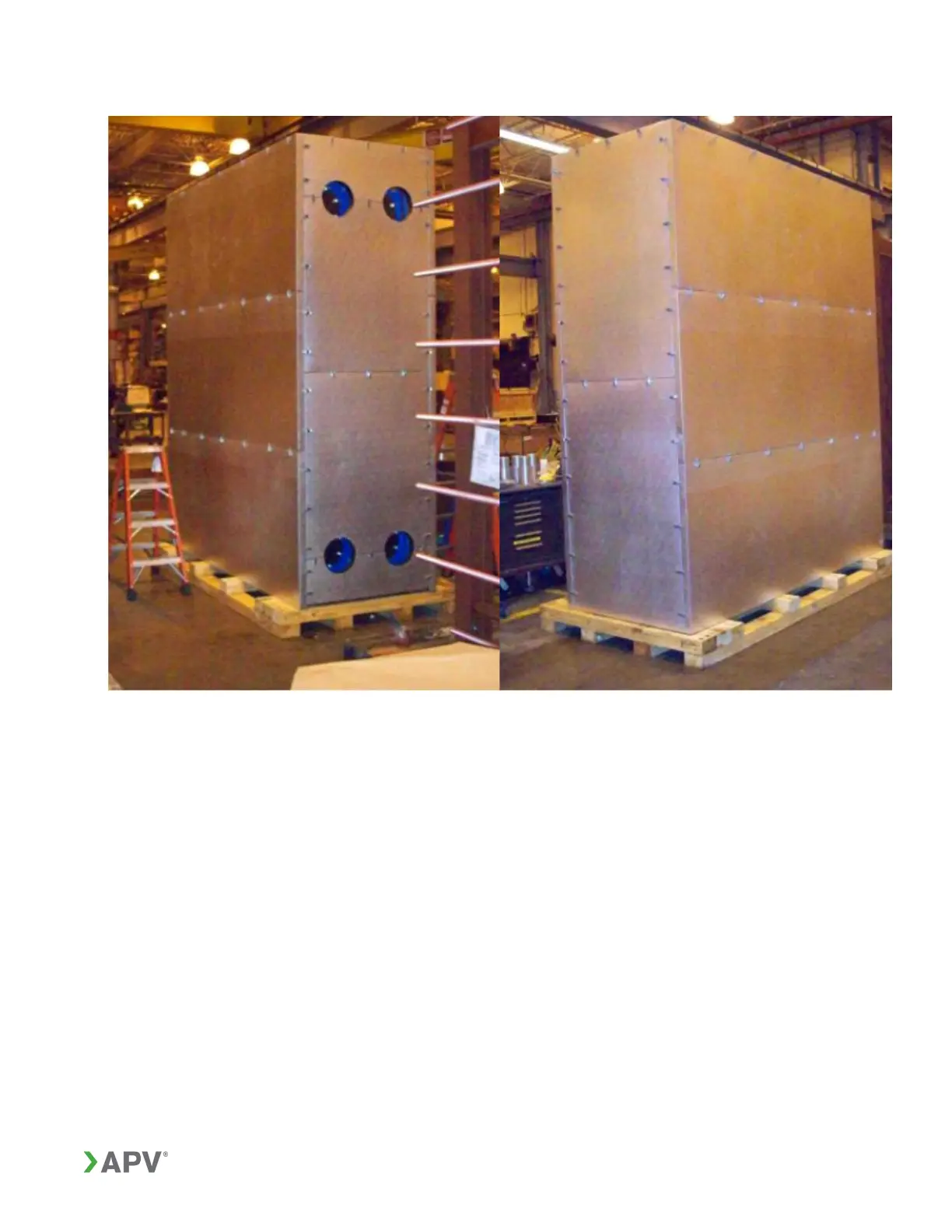

Figure 56: Insulation Jacket
14. SPARE PARTS, IDENTIFICATION AND ORDERING
14.1. Identification of Spare Parts
Each spare part of the APV GPHE is allocated a unique item number.
For gaskets and plates see item numbers on APV GPHE plate arrangement diagram.
On some APV GPHE plates, the last four digits of the item number are also stamped
near one end of the plate. On some gaskets, the part number may be molded on the
gasket. Plate punch code and plate inversion – right and left are shown in Figure 57.
Plate handling is checked by which lower port will allow flow into the channel. For the
right hand plate, the right hand lower port allows flow to enter or exit the channel.
