64 | INSTALLATION, OPERATION and MAINTENANCE MANUAL
the gasket to the plate (Figure 47). When the plate heat exchanger is tightened, a
complete and secure seal is assured.
To attach an EasyClip gasket, the gasket is laid out on the plate in its correct position.
The projections are firmly pressed into the corresponding slots in the plates. After
installing the gasket, the plate may be immediately installed in the frame in preparation
for tightening.

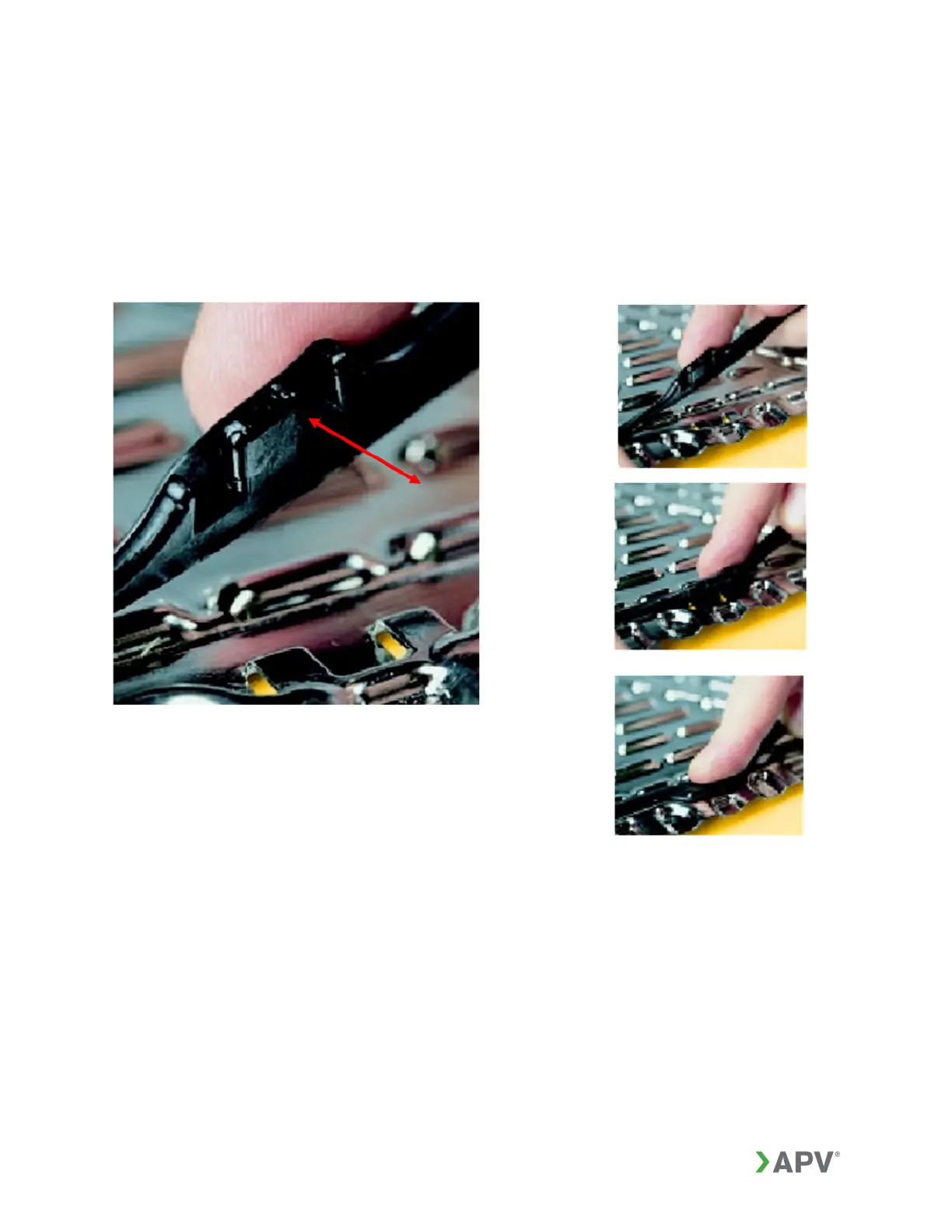

Figure 47: Attachment of EasyClip gaskets
Double Clip Gaskets
Non-glued Double Clip gaskets, only available on the Mira plate, are an alternative to
glued in gaskets that simplifies on site re-gasketing. To attach the gasket, apply a
pressure to move the upper tongue into the slot on the back side of the plate. The
bottom tongue rests on the top side of the plate to secure the gasket to the plate. These
tongues fit into corresponding slots located around the periphery of the plate and port
