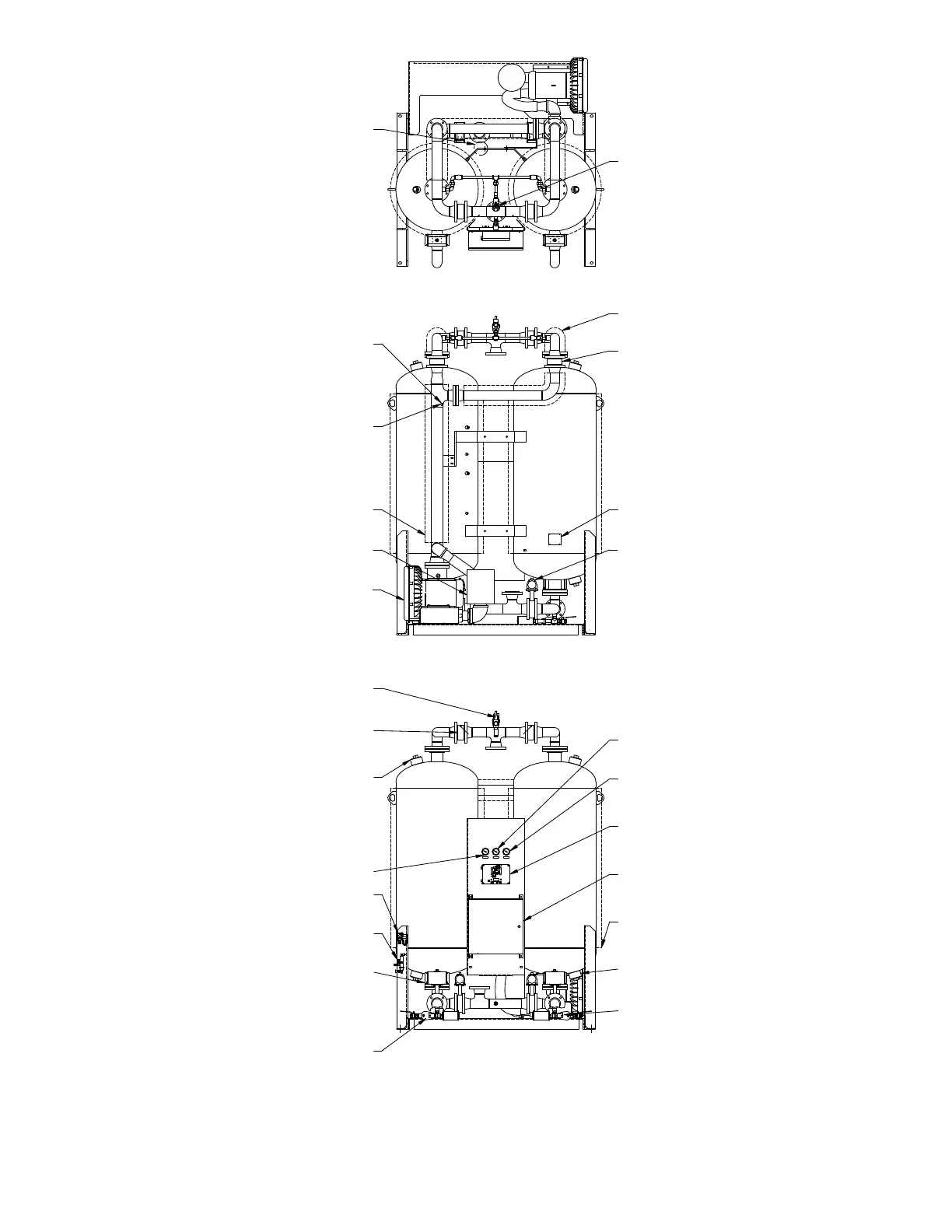

Figure 3a
General Layout Drawing
(Models 750 through 2600)
FRONT VIEW
REAR VIEW
TOP VIEW
ASME RELIEF VALVE
LEFT TOWER
PRESSURE GAUGE
PRESSURE REGULATOR
& PILOT AIR FILTER
OUTLET CHECK VALVE
TOWER PURGE
EXHAUST VALVE
DEWPOINTER
(OPTIONAL)
DESICCANT
FILL PORT
TOWER BLOW-
DOWN VALVE
DESICCANT
DRAIN PORT
TOWER
INSULATION
(OPTIONAL)
PURGE
PRESSURE GAUGE
RIGHT TOWER
PRESSURE GAUGE
HIGH TENSION
ENCLOSURE
CONTROL
ENCLOSURE
ENERGY MANAGEMENT
SENSOR LOCATION (OPTIONAL)
HEATER TEMP
THERMOCOUPLE
(CENTER END IN PIPE)
(OPPOSITE SIDE)
HOT PIPE INSULATION
PURGE
HEATER WITH
INSULATION
HEATER OVERTEMP RTD
ASME CODE TAG
PURGE INLET CHECK VALVE
CHAMBER INLET
VALVE
PURGE SUCTION
FILTER SILENCER
PURGE BLOWER
AND MOTOR
REPRESS VALVE
TOWER
DEPRESS VALVE
