Parts List
Item # Part # Quantity Description
1
05-296-2210 1 Hopper
2
05-296-2215 1 Hopper Bottom Plate
3 05-288-1017 1 Pivot Lever Mount Assembly
4 99-10-0205 8 Hopper Bottom Bolt 1/4-20 X 1/2
5
SS-91-0004 19 Nut
6
SS-94-0007 1 Hopper Bottom Bearing
7
05-94-0042 4 Rate Gate Diffuser Guide
8 05-288-2221 1 Rate Gate
9
05-296-0110 1 Rate Gate Linkage
10 05-296-0131 1 Dial
11 05-94-0069 1 Dial Mount
12 05-296-0175 1 Accuway
1
3 05-90-0044 1 Cable / Wire Fastener
1
4 05-288-2220 1 Frame
15 05-90-0016 4 Bolt 1/4-20 X 1-3/4 / Hopper to Frame
16 05-94-0064 8 Nylon Washer
17 05-88-2230 1 Axle
18 05-98-0071 4 Axle Bearing
19 05-98-0051 2 Grease Zerk
20 05-90-0012-R 2 Collar
21 05-94-0037 1 Front Half Gear Box
22 05-94-0038 1 Rear Half Gear Box
23 05-288-0035 1 Lower Spinner Shaft
24
05-90-0051
5 1/4 - 20 x 3/4 T
russ Bolt/Pivot Lever Mount/Lever to Lever Mount Bracket
25 05-90-0040 1 Rue Ring/Idle
26
05-94-0034
1 Pinion Gear
27 05-94-0033 1 Bevel Gear
28 05-298-0034 1 Upper Spinner Shaft
29 05-97-0030 1 Coupling / Upper and Lower Spinners Shaft
30 05-97-0036 1 Spinner Clip
31 05-296-0140 1 Spinner
32 05-98-0108 1 Ball Knob for On/Off Lever
33 05-95-0016
2
13” Idle/Drive Wheel
34 05-288-1011 1 On / Off Lever Mount Bracket
35 SS-92-0002
2 Felt Washer
36 SS-96-0003 1 Agitator Wire
37 05-288-1012 1 On / Off Control Lever
38 05-288-1023 1 Accuway Control Assy.
39 05-296-1070
1
Screen
40
05-88-2215 2 Handle
41 05-90-0017 4
Bolt 1/4-20 X 2-3/4 / Handle & Controls
42
05-90-0065 1 Clevis Pin/ Drive Wheel
43 05-90-0039 1 Hair Pin / Drive Wheel
45 05-92-0004 2 Washer, Finishing / Idle Wheel
47 05-90-0054 4 Bolt 1/4-20 X 1-1/2 / Handles to Frame
48 05-94-0072 2 Handle Grip
49 05-90-0097 8 Gear Box Bolt
50
05-91-0008
8 Nuts / Gearbox
51 05-90-0096
1 Roll Pin/Bevel Gear
52 05-98-0111
1 Zirk Fitting for Gear Box
53 05-92-0007 2 Finishing Washer/Drive Pin
54 05-90-0094 2 Small Brass Bushings
55
05-90-0093 2 Large Brass Bushings
56 05-90-0101
1 Clevis Pin / Pivot Lever
57 05-90-0102 2 Hair Pin / Pivot Lever & Pivot Lever Rod Bracket
58 05-98-0107 1 Spring / Pivot Lever
59 05-92-0008 3 SS Washer / Pivot Lever
60
05-92-0014
2 Nylon Washer / Pivot Lever
61
05-288-1014 1 Pivot Lever
62 05-288-1021 1 Pivot Linkage
63 05-90-0055 1 Retainer Screw
64 05-288-1022 1 Retainer
65 05-94-0078 1 Christmas Tree Plug / Dial
66 05-288-1027 1 Pin Retainer Ring / Bevel Gear
68
05-288-1015
1
Pivot Lever Rod Bracket
7
288 Super
6

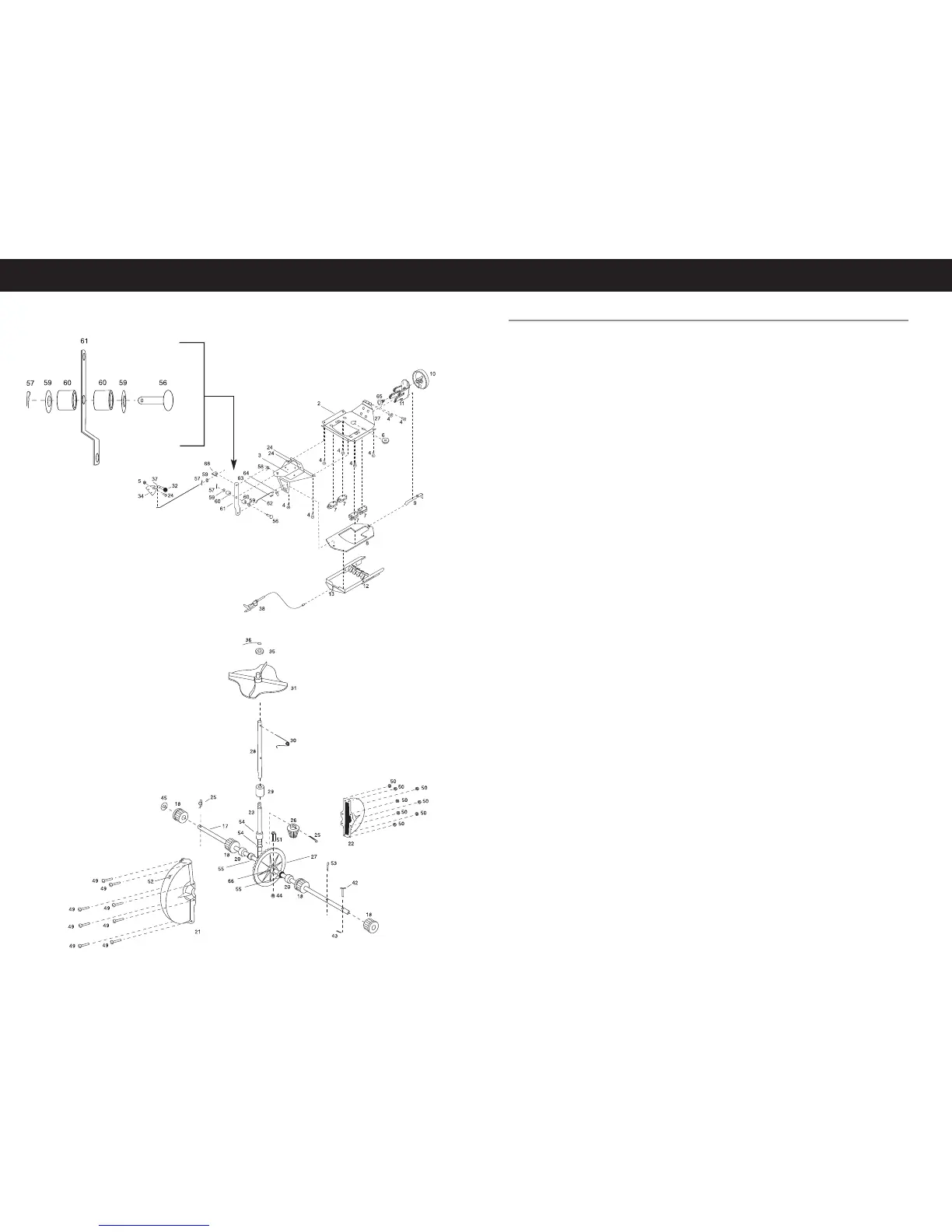

Exploded View Model 288 Super
G
G
e
e
a
a
r
r
A
A
s
s
s
s
e
e
m
m
b
b
l
l
y
y
R
R
a
a
t
t
e
e
G
G
a
a
t
t
e
e
A
A
s
s
s
s
e
e
m
m
b
b
l
l
y
y
E
E
n
n
l
l
a
a
r
r
g
g
e
e
d
d
V
V
i
i
e
e
w
w
