SRAM DUB MTB Series User Manual

5
Frame Shell
Width (mm)
Outer Left
Spacer (mm)
Inner Left
Spacer (mm)
Inner Right
Spacer (mm)
Outer Right
Spacer (mm)
DUB BSA
68 - 2.5 2.5 4.5
73 - - - 4.5
73 Guide - - 2.5 or Guide 2
73 SB+ 4.5 - - 9
73 SB+ Guide 4.5 - 2.5 or Guide 6.5
100 2 2.5 2.5 6
DUB PressFit™
89.5 - - - 4.5
92 - - - 2
92 SB+ 4.5 - - 6.5
121 (Fat Bike) 2 - - 6
DUB BB30™/
DUB PressFit 30™
73 - - - 4.5
DUB™ Crankset Bottom Bracket
Spacers
Entretoises pour jeu de pédalier DUB Espaçadores para eixos pedaleiros
DUB na pedaleira
Innenlager-Distanzstücke für DUB-
Kurbelgarnitur
Distanziali movimenti centrali per
guarniture DUB
DUBクランクセットの
ボ ト ム・ブ ラ ケ ット・ス ペ ー サ ー
Espaciadores de plato y pedalier
DUB
Afstandshouders voor DUB
trapassen
DUB 曲柄中轴垫片

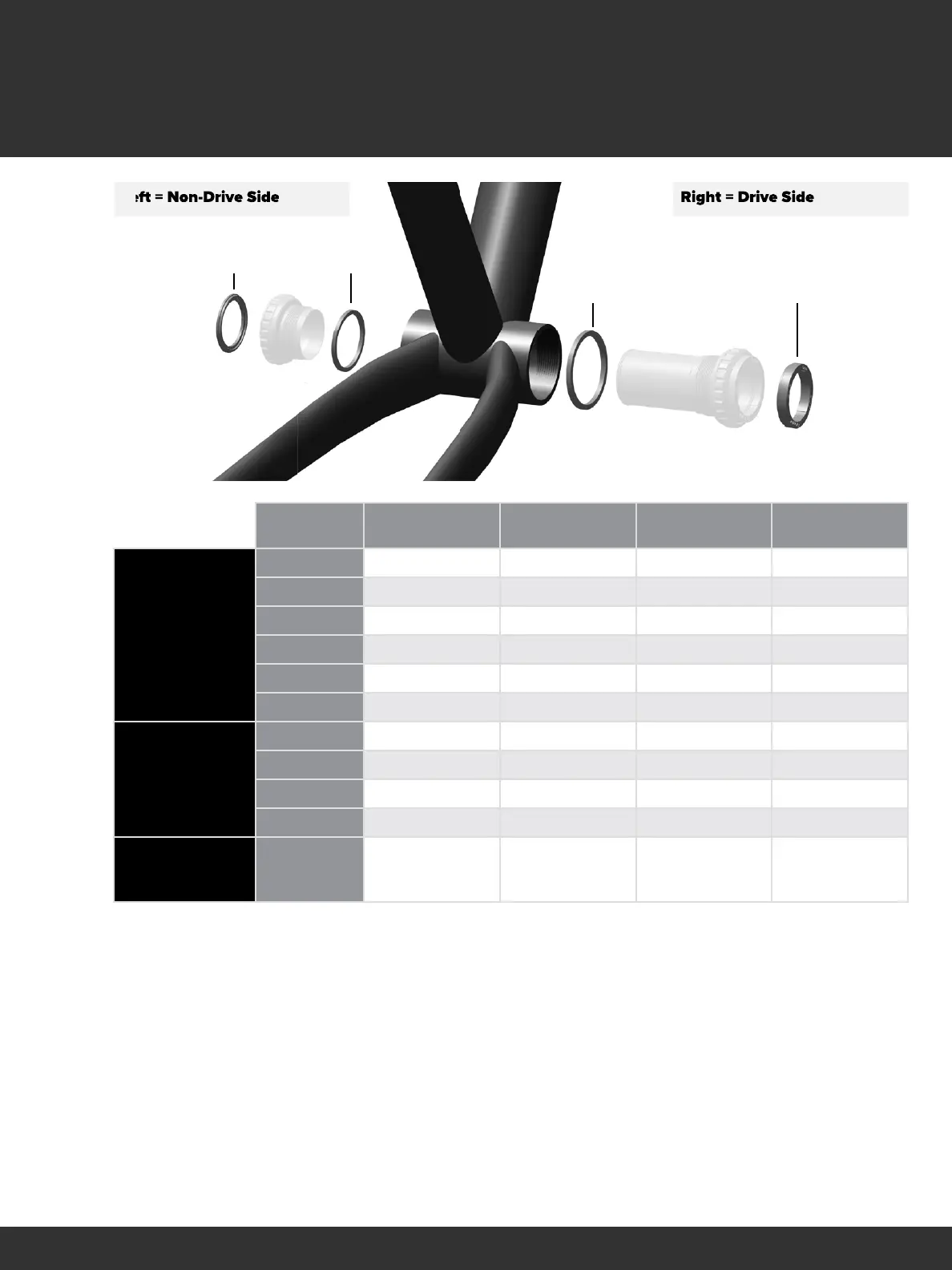

Outer Left Spacer
Inner Right Spacer
Inner Left Spacer
Outer Right Spacer
Left = Non-Drive Side
Left = Non-Drive Side
Right = Drive Side
