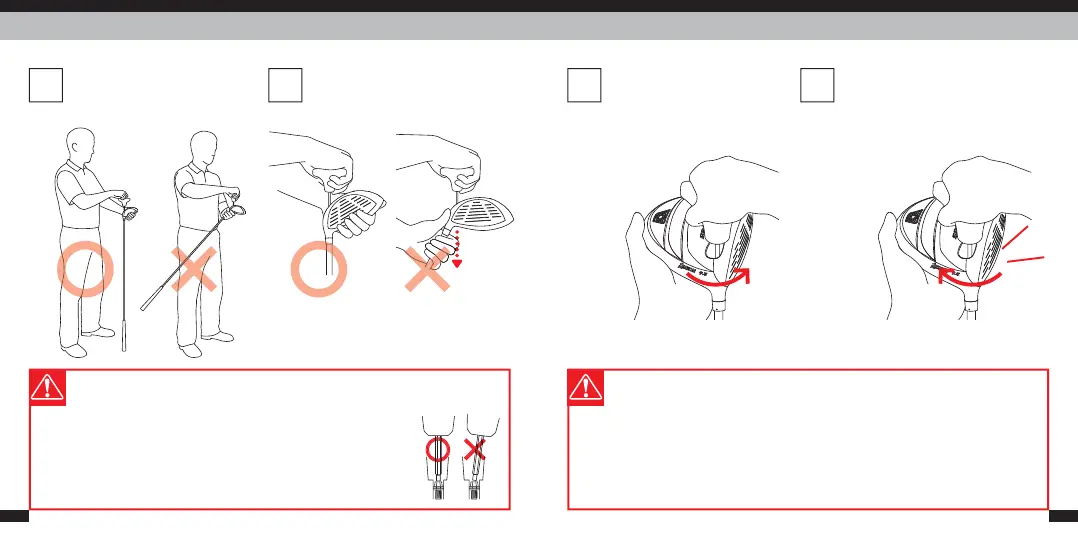

Hold the club upright with
the grip resting on the ground.
Use this position when loosening
and tightening.
1
Supporting the head in your hand,
gently insert the torque wrench
into the screw hole.
2
Loosen
3
Tighten
With the torque wrench
aligned with the shaft,
turn it counterclockwise.
With the torque wrench
aligned with the shaft,
turn it clockwise until
you hear a 'click'.
4
Damaged QTS sleeve and/or improperly installed
QTS sleeve may result in injury or product damage.
* Not compatible with SRIXON Z-STAR series torque wrenches.
Do not use any tool other than the supplied torque wrench.
Also do not use the supplied torque wrench on any other products.
Failure to insert the tip of the torque wrench firmly
into the screw hole may result in damage to the screw.
Position the torque wrench so that it is correctly aligned with the shaft.
Improperly aligned
torque wrench
Shaft and torque
wrench should
form a straight line
How to remove and install QTS sleeve
(
torque wrench operation
)
Failure to tighten until you hear a 'click' may result in separation
of the club head or product damage.
Always tighten until you hear a 'click'.
03 04
* Be careful not to loosen the screw too much,
as you may drop the screw and lose the washer.
Click
