4 Installation

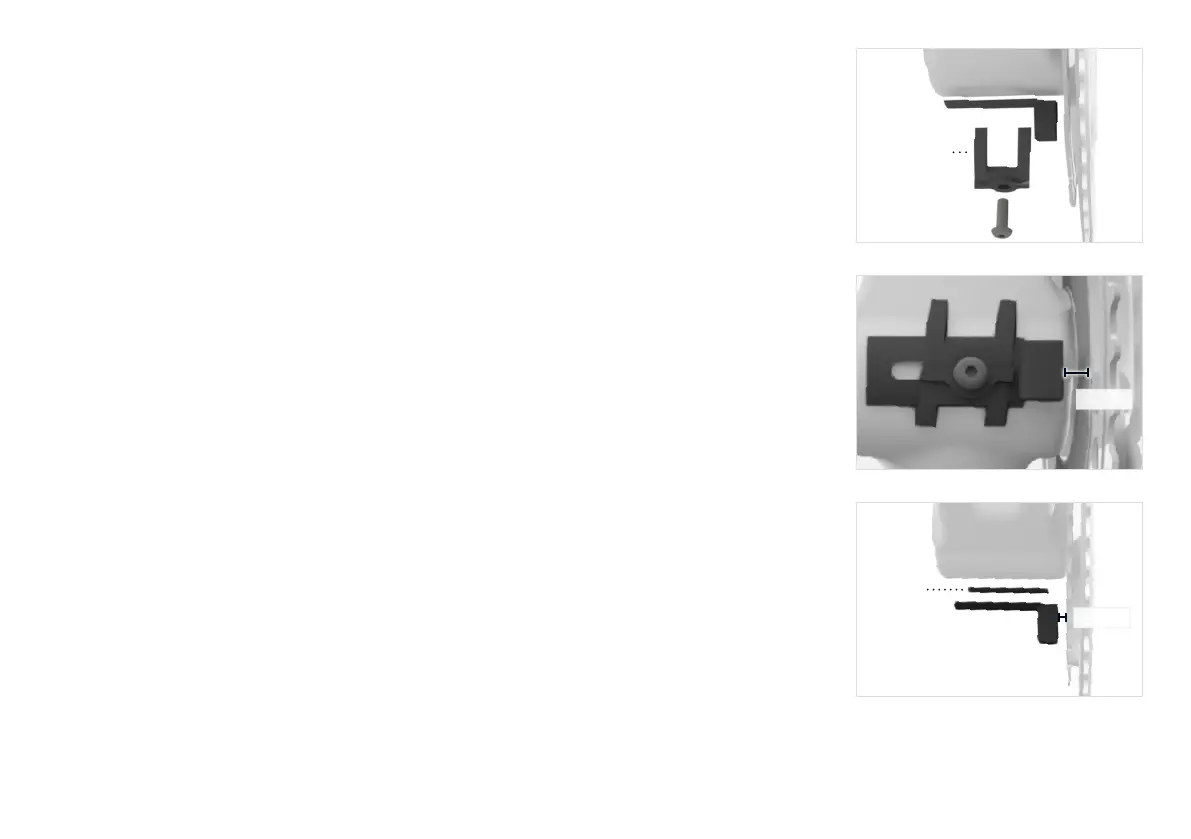

1. Remove the cable guide bolt and install the magnet under the cable guide.
2. Position the magnet
4
-6 mm from the backside of the PowerMeter.
3. Install the bolt and tighten it to the torque specied by the frame manufacturer.
To assist with cable guide removal, shift the chain into the largest cog in the rear and the
largest chainring in the front. Next, without turning the cranks, shift both derailleurs to the
smallest cog. This will remove tension from both cables.
Note: The derailleurs may require some adjustment after cadence magnet installation.
1. Clean both the magnet and the mounting surface of the frame with the alcohol swab
provided.
2. Position the magnet
4
-6 mm from the backside of the PowerMeter. It is recommended to
temporarily x the magnet in place and conrm correct position before installing with the
double sided tape.
3. Use the double sided tape to install the cadence magnet to the frame. Remove the
protective lm on each side of the tape. Avoid touching the adhesive surfaces.
To achieve optimal magnet position, the cadence magnet and double sided tape can be
cut with scissors to t your desired location.
4
mm
4
mm
