Page 6
ASSEMBLY
BALL VALVE INSTALLATION

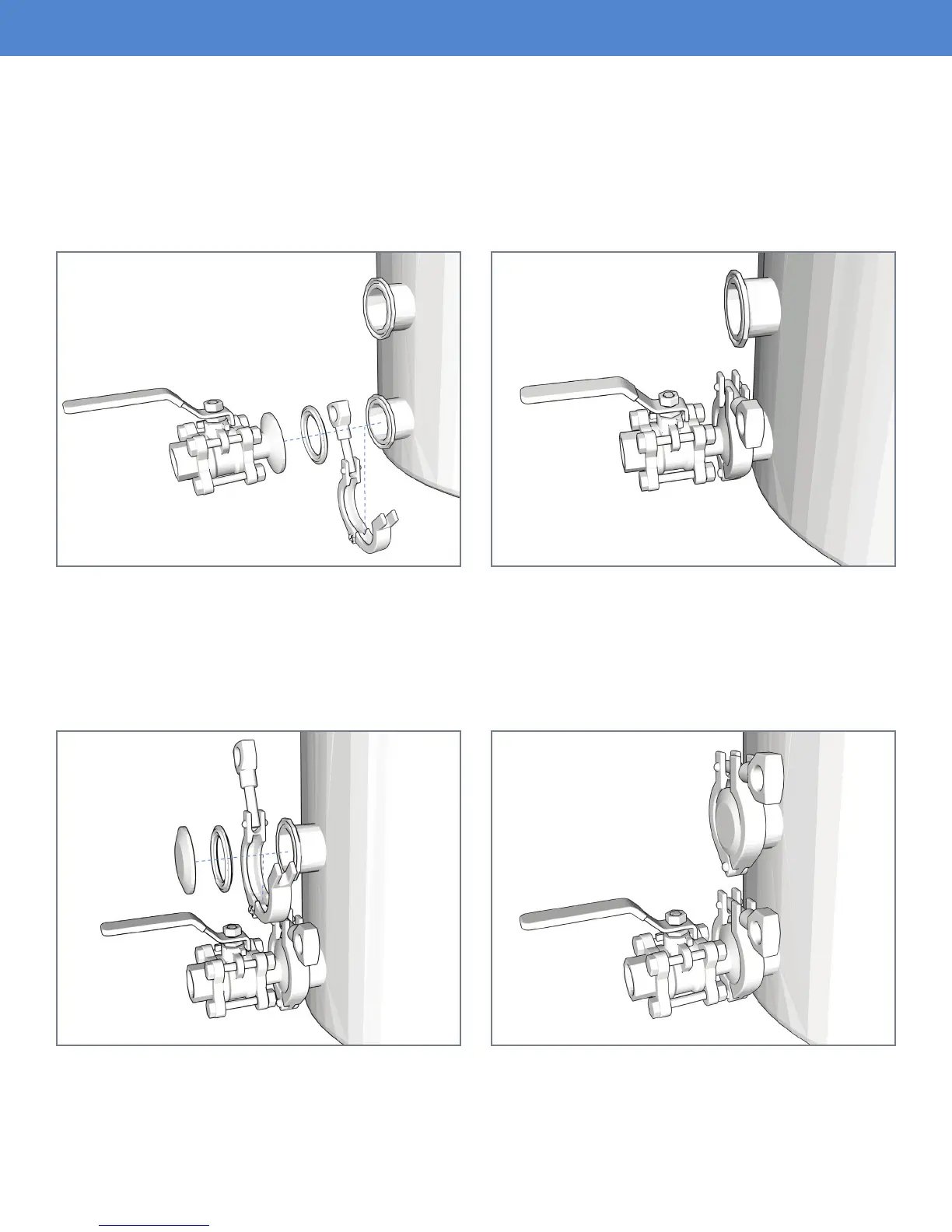

Once the initial pre-clean steps have been completed, begin by locating the 3-Piece 1.5”TC to ½” FTP
Ball Valve, 1.5” TC gasket and 1.5” TC Clamp.
Place a 1.5” TC gasket between the 3-piece valve TC face and bottom 1.5” TC kettle attachment point.
Finally attach the 1.5” TC clamp to this union and hand tighten down to provide a sanitary leak free seal.
Repeat this same process with the 1.5” TC blank, 1.5” TC gasket and 1.5” TC clamp to then be assembled
on the above accessory port.
1.
3.
2.
4.
