02-33
8710-01

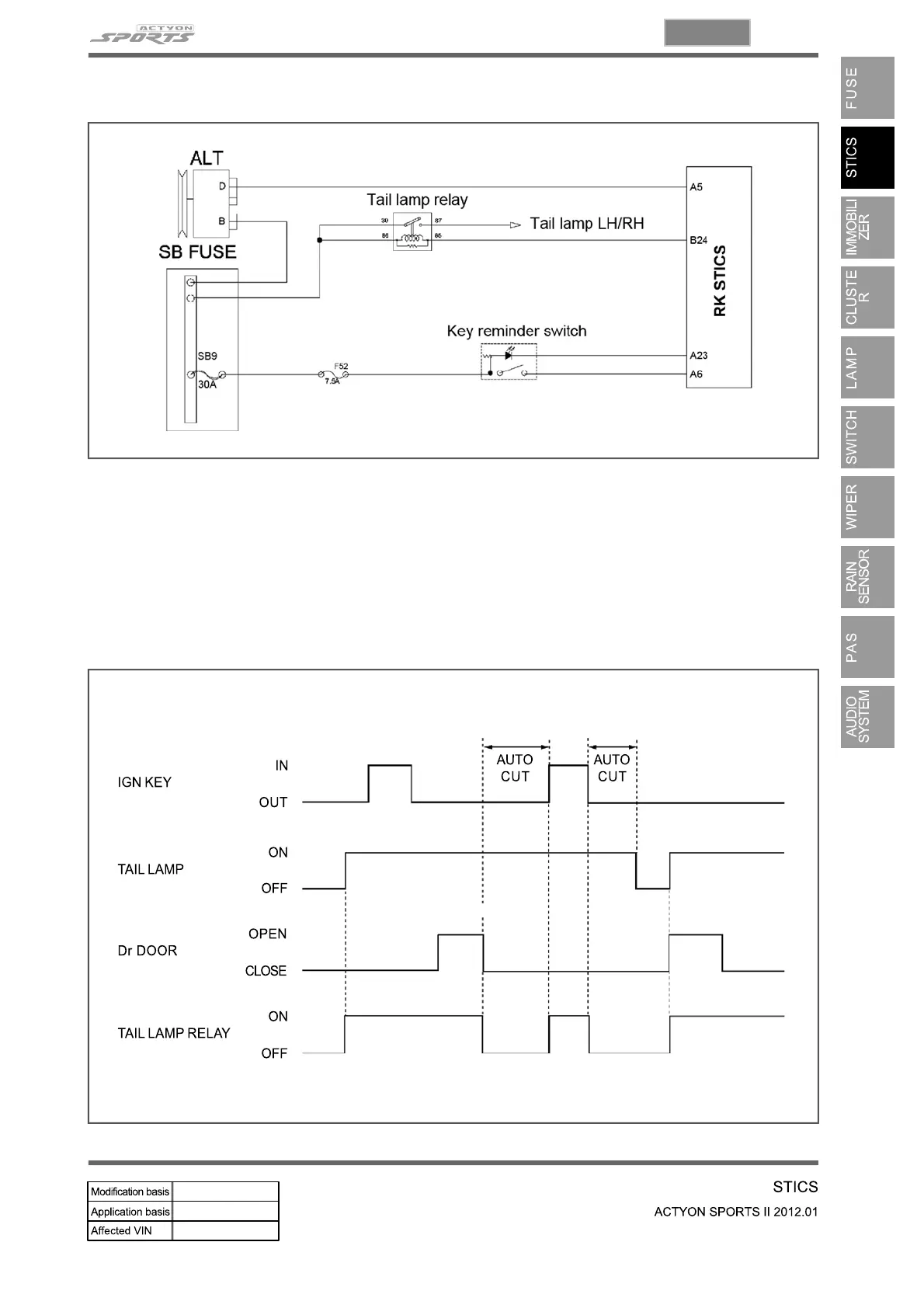

▶STICS Circuit for Tail Lamp Auto Cut (Battery Saver)
▶Tail Lamp Auto Cut (Battery Saver)
The tail lamp is turn on or off according to the operations of the tail lamp switch.
The tail lamp relay is turned off (auto cut) when opening and closing the driver's door after
removing the ignition key without turning off the tail lamp.
The tail lamp relay is turned on when inserting the ignition key into the ignition switch.
The tail lamp relay is turned off (auto cut) when opening and closing the driver's door
while the ignition key is removed and the tail lamp is turned on.
1.
2.
3.
4.
To Next Page
