01-39
3680-01

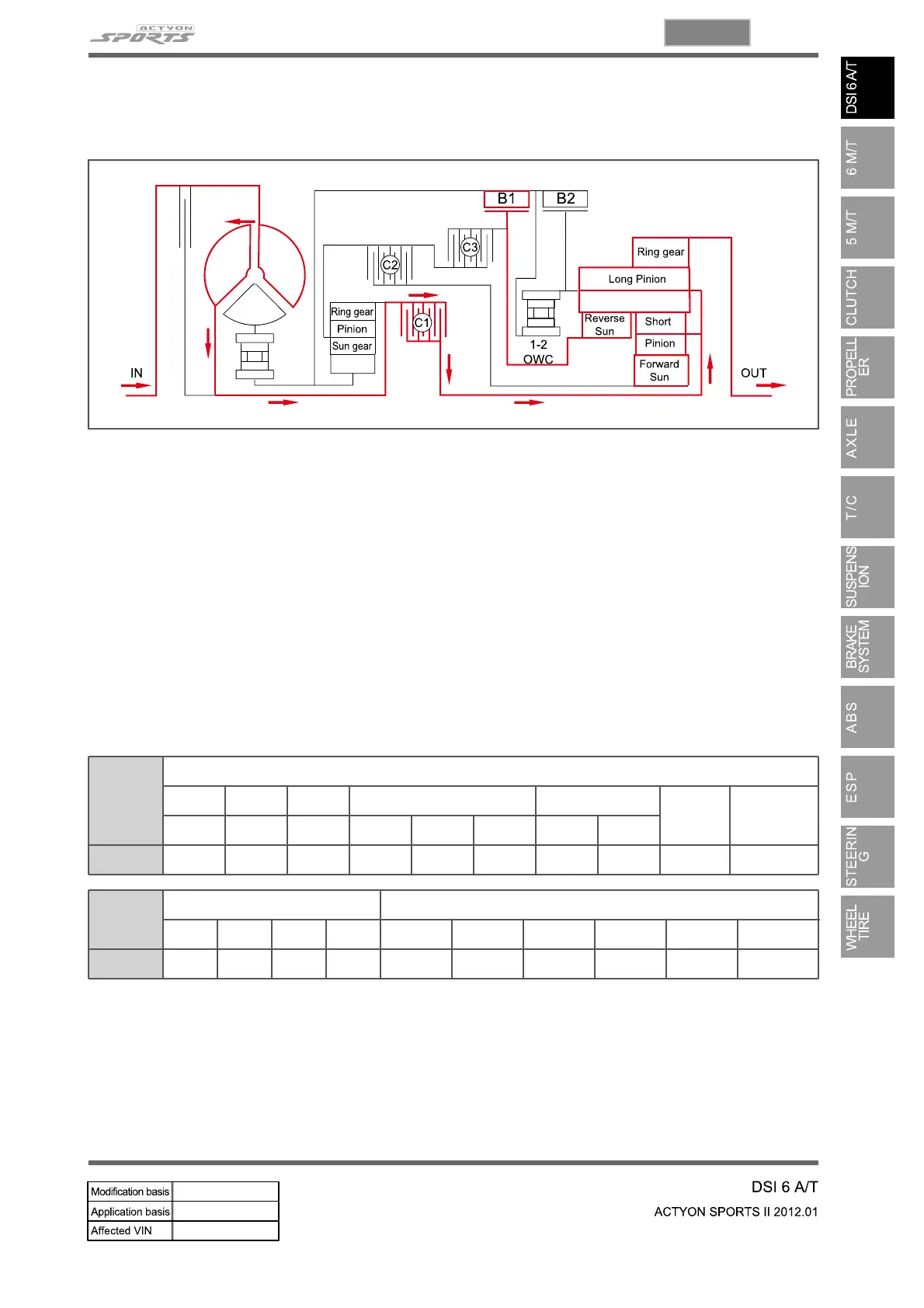

8) Power flow - 6th gear (D)
Functioning elements
▶
Control
▶
C1 applied, Rear Planet Carrier driven
B1 applied, RSG (Rear Sun Gera) locked
-
-
S1 OFF, S2 and S4 ON
S3 ON, C2 shift valve moved to the left end, C2 clutch not engaged
C1 shift valve open (S1 OFF), C1 clutch engaged by drive oil
S4 ON, B1 shift valve moved to the left end, B1 Band engaged
-
-
-
-
Connecting Components
▶
Gear
ratio
ON / OFF solenoids Variable pressure sol. valve-VBS
S1 S2 S3 S4 S5(A) S6(A) S7(A) S8(A) S9(A) S10(A)
0.68 ON ON 0 1 1 0-1
Gear
ratio
Engaged element
C1 C2 C3 B1 B2 OWC Lock-up
clutch
AO AI R AO AI
0.68 ON ON
Power Flow Diagram
▶
