korando 2010.10
8810-00

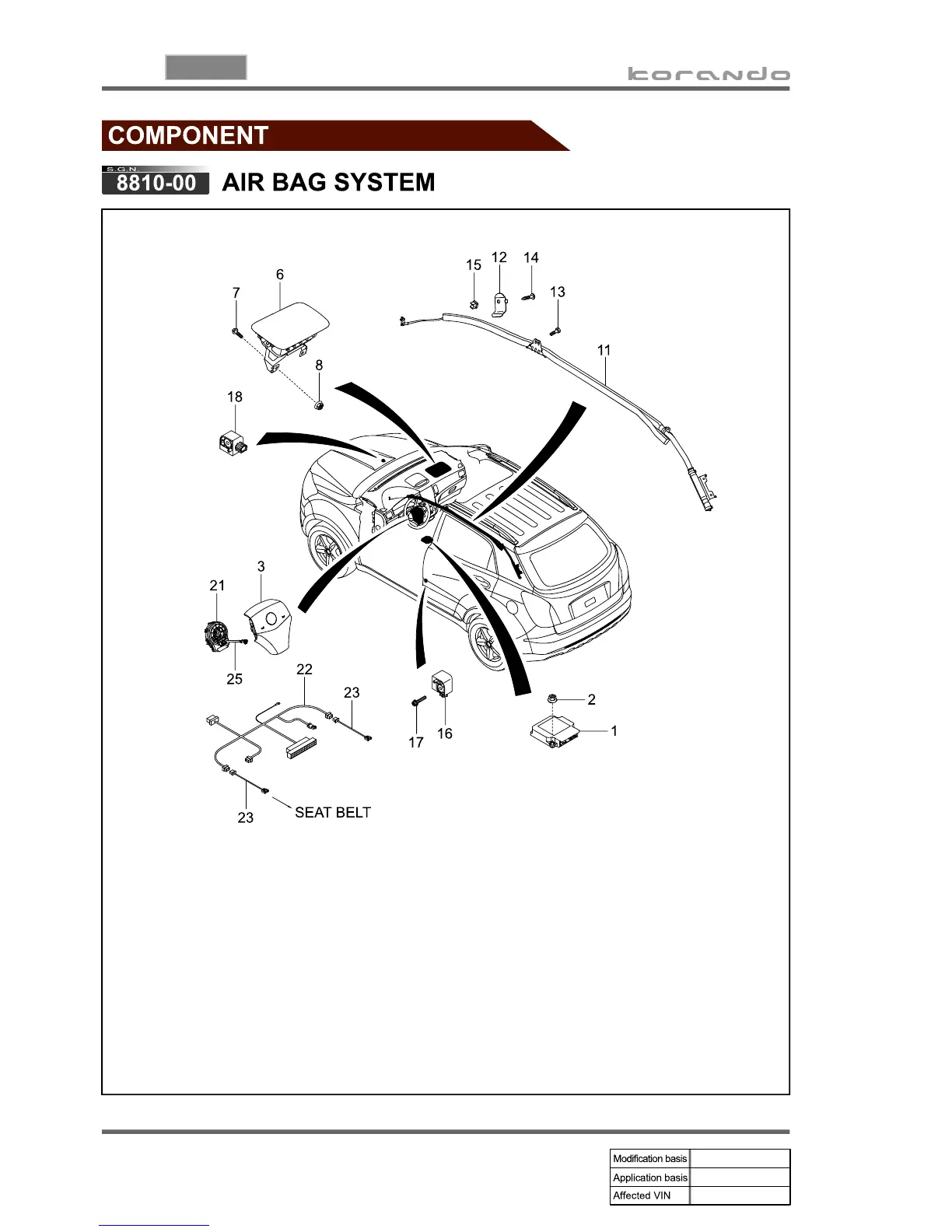

AIR BAG SYSTEM
Unit assy - SDM
Nut
Air bag module - Driver
Air bag module - Passenger
Screw
Nut
Air bag module - INF curtain
Brkt - Icab FRT
1.
2.
3.
6.
7.
8.
11.
12.
Bolt
T/screw - Truss_M4x0x12
Grommet screw_M4
Sensor assy - Side air bag
Screw
Sensor assy - FRT impact
Wiring assy - Air bag
Wiring assy - Air bag EXTN
13.
14.
15.
16.
17.
18.
22.
23.
